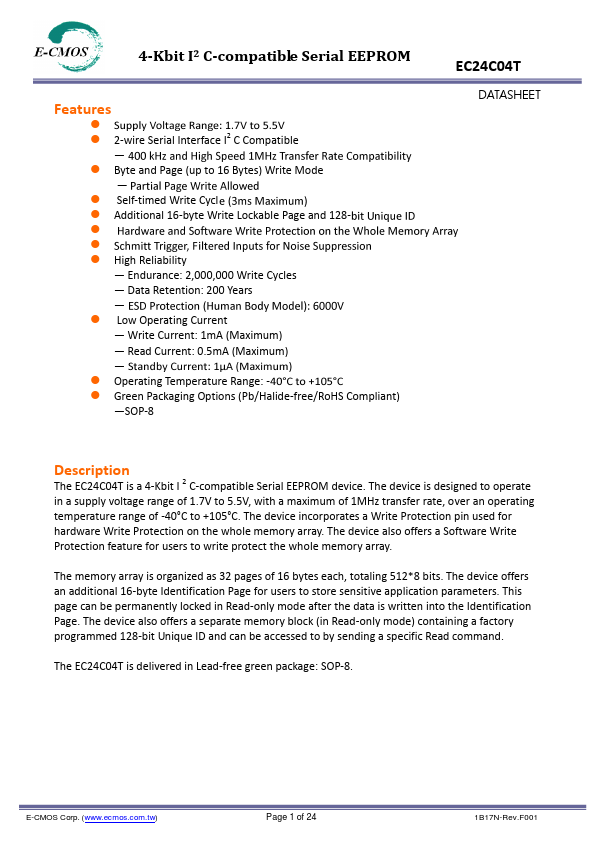

EC24C04T
Features
- - 2-wire Serial Interface I2 C patible
- - Byte and Page (up to 16 Bytes) Write Mode
- - Self-timed Write Cycl
- Additional 16-byte Write Lockable Page and 128-
- - High Reliability
- Endurance: 2,000,000 Write Cycles
- Data Retention: 200 Years
- - Low Operating Current
- Write Current: 1m A (Maximum)
- Read Current: 0.5m A (Maximum)
- - Operating Temperature Range:
- Green Packaging Options (Pb/Halide-free/Ro HS pliant)
- SOP-8
Description
The EC24C04T is a 4-Kbit I 2 C-patible Serial EEPROM device. The device is designed to operate in a supply voltage range of 1.7V to 5.5V, with a maximum of 1MHz transfer rate, over an operating temperature range of -40°C to +105°C. The device incorporates a Write Protection pin used for hardware Write Protection on the whole memory array. The device also offers a Software Write Protection feature for users to write protect the whole memory array.
The memory array is organized as 32 pages of 16 bytes each, totaling 512- 8...
