EC24C02A - 2K-bit 2-WIRE SERIAL CMOS EEPROM

Description

The EC24C02A/04A/08A/16A provides 2048/4096 /8192/16384 bits of serial electrically erasable and programmable read-only memory (EEPROM) organized as 256/512/1024/2048 words of 8 bits each.

Features

  • Wide Voltage Operation - VCC = 1.7V to 5.5V.
  • Operating Ambient Temperature: -40°C to +85°C.
  • Internally Organized: - EC24C02A, 256 X 8 (2K bits) - EC24C04A, 512 X 8 (4K bits) - EC24C08A, 1024 X 8 (8K bits) - EC24C16A, 2048 X 8 (16K bits).
  • Two-wire Serial Interface.
  • Schmitt Trigger, Filtered Inputs for Noise Suppression.
  • Bidirectional Data Transfer Protocol.
  • 1 MHz (5V), 400 kHz (1.7V, 2.5V, 2.7V) Compatibility.
  • Write Protect Pin for Hardware Data Protection.

📥 Download Datasheet

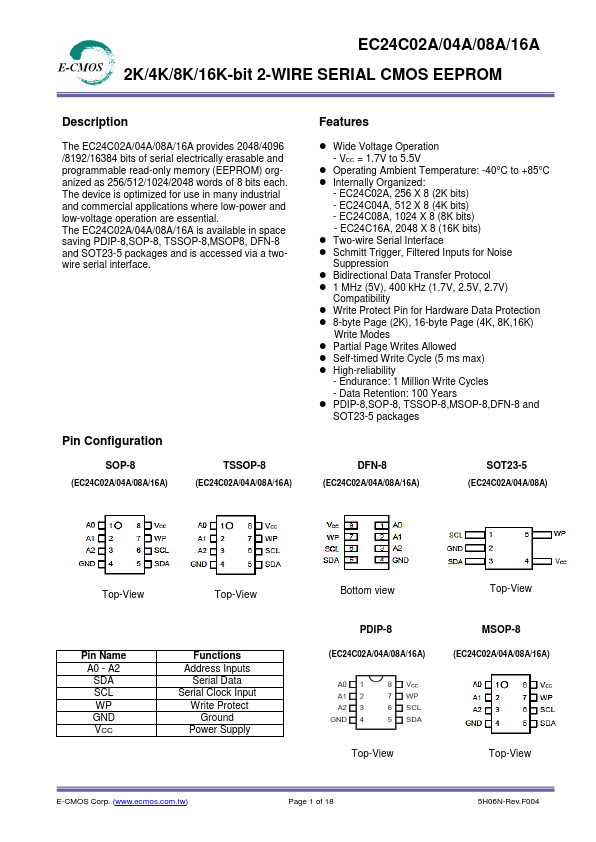

Datasheet preview – EC24C02A

Datasheet Details

Part number EC24C02A
Manufacturer E-CMOS
File Size 464.65 KB
Description 2K-bit 2-WIRE SERIAL CMOS EEPROM
Datasheet download datasheet EC24C02A Datasheet

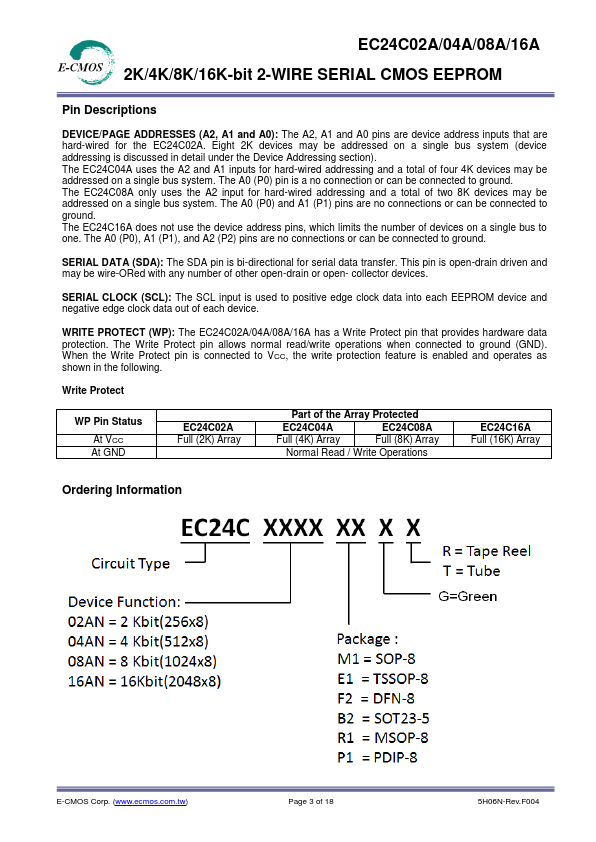

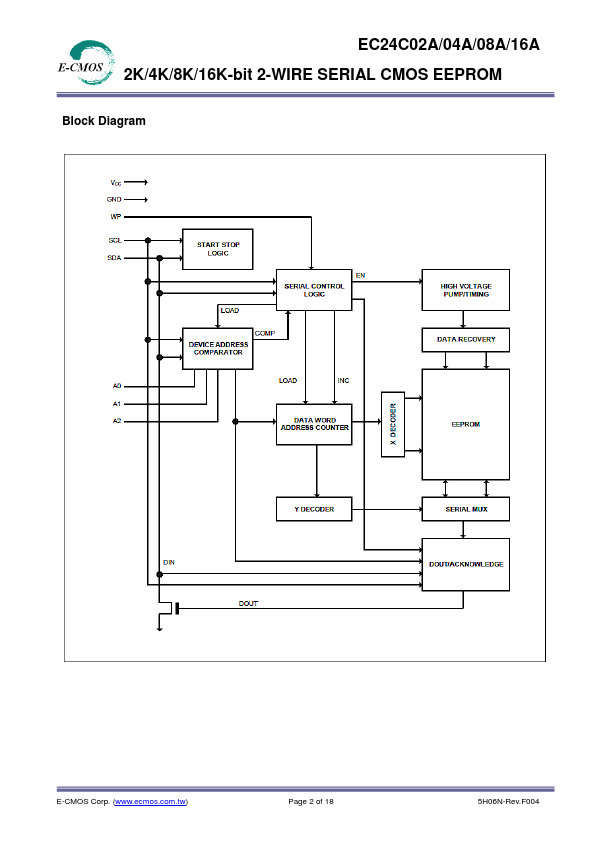

Additional preview pages of the EC24C02A datasheet.

📁 Similar Datasheet

  • EC2 - MINIATURE SIGNAL RELAY (NEC)
  • EC2-12 - MINIATURE SIGNAL RELAY (NEC)
  • EC2-12ND - MINIATURE SIGNAL RELAY (NEC)
  • EC2-12NJ - MINIATURE SIGNAL RELAY (NEC)
  • EC2-12NJ - Miniature Signal Relays (KEMET)
  • EC2-12NP - MINIATURE SIGNAL RELAY (NEC)
  • EC2-12NQJ - Miniature Signal Relays (KEMET)
  • EC2-12NU - MINIATURE SIGNAL RELAY (NEC)
  • EC2-12NU - Miniature Signal Relays (KEMET)
  • EC2-12S - MINIATURE SIGNAL RELAY (NEC)
Other Datasheets by E-CMOS
  • EC24C04A - 4K-bit 2-WIRE SERIAL CMOS EEPROM
  • EC24C08A - 8K-bit 2-WIRE SERIAL CMOS EEPROM
  • EC24C128A - 128K-bit 2-WIRE SERIAL CMOS EEPROM
  • EC24C16A - 16K-bit 2-WIRE SERIAL CMOS EEPROM
  • EC24C256A - 256K-bit 2-WIRE SERIAL CMOS EEPROM
  • EC24C32A - 32K-Bit 2-WIRE SERIAL CMOS EEPROM
  • EC24C512A - 512K bitsTwo-wire Serial EEPROM
  • EC24C512T - 512K EEPROM

Full PDF Text Transcription

Click to expand full text
EC24C02A/04A/08A/16A 2K/4K/8K/16K-bit 2-WIRE SERIAL CMOS EEPROM Description The EC24C02A/04A/08A/16A provides 2048/4096 /8192/16384 bits of serial electrically erasable and programmable read-only memory (EEPROM) organized as 256/512/1024/2048 words of 8 bits each. The device is optimized for use in many industrial and commercial applications where low-power and low-voltage operation are essential. The EC24C02A/04A/08A/16A is available in space saving PDIP-8,SOP-8, TSSOP-8,MSOP8, DFN-8 and SOT23-5 packages and is accessed via a twowire serial interface. Pin Configuration SOP-8 (EC24C02A/04A/08A/16A) TSSOP-8 (EC24C02A/04A/08A/16A) Features  Wide Voltage Operation - VCC = 1.7V to 5.
