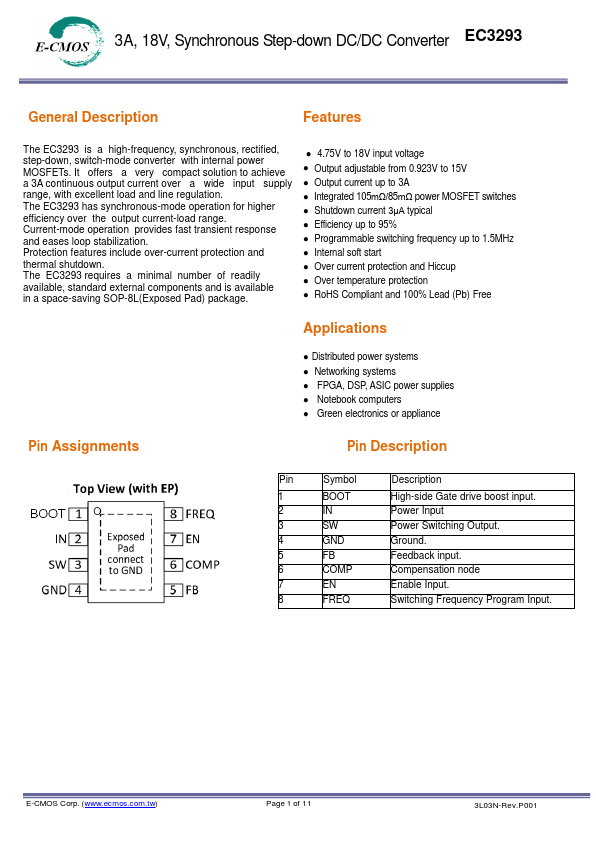

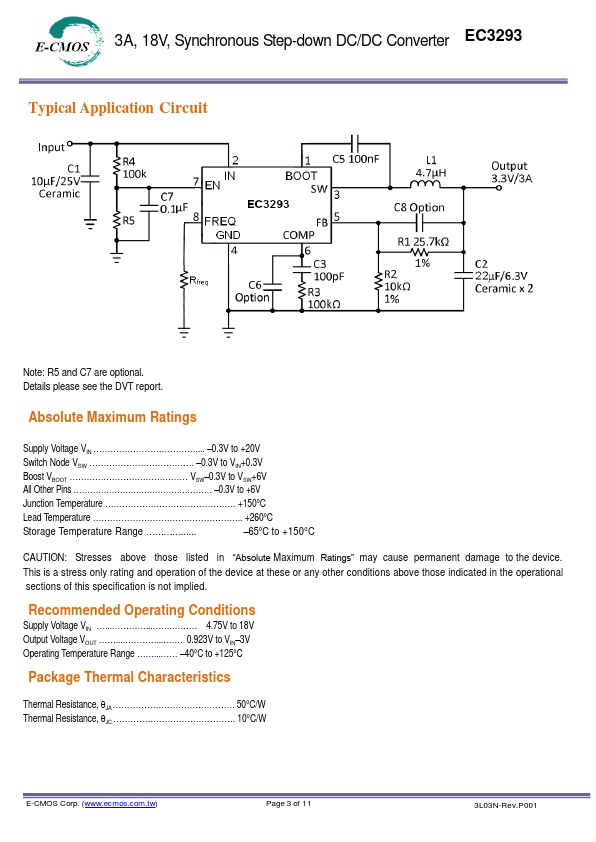

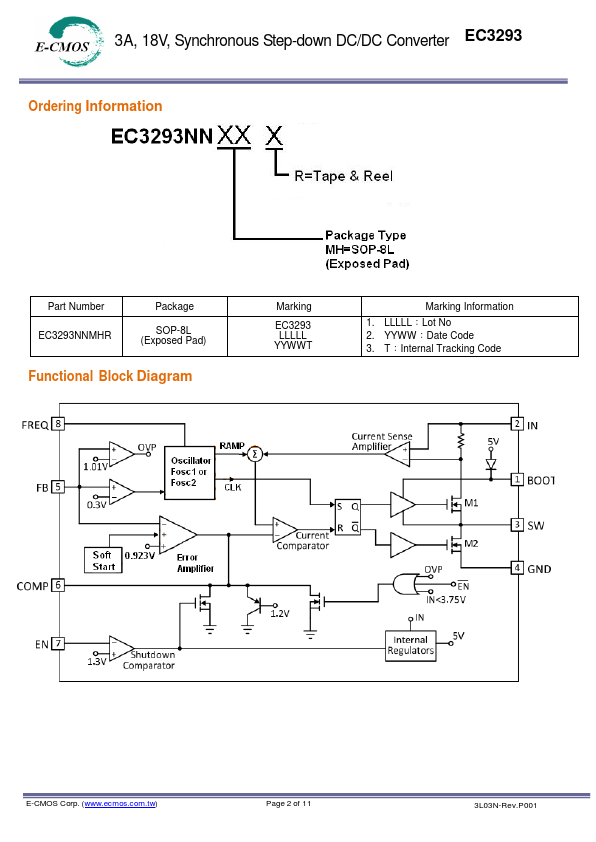

E-CMOS EC3293
The EC3293 is a high-frequency, synchronous, rectified, step-down, switch-mode converter with internal power MOSFETs. It offers a very compact solution to achieve a 3A continuous output current over a wide input supply range, with excellent load and line regulation. The EC3293 has synchronous-mode operation for higher efficiency over the output current-load range.| Part No. | EC3293 |
|---|---|
| Datasheet | EC3293 Download |
| Manufacturer |  E-CMOS |
| Description | Synchronous Step-down DC/DC Converter |
| Buy | Stock & Price |
GENERAL DESCRIPTION
FEATURES
Current-mode operation provides fast transient response and eases loop stabilization. Protection features include over-current protection and thermal shutdown. The EC3293 requires a minimal number of readily available, standard external components and is available in a space-saving SOP-8L(Exposed Pad) package.● 4.75V to 18V input voltage
● Output adjustable from 0.923V to 15V
● Output current up to 3A
● Integrated 105mΩ/85mΩ power MOSFET switches
● Shutdown current 3μA typical
● Efficiency up to 95%
● Programmable switching frequency up to 1.5MHz
● Internal soft start
● Over current protection and Hiccup
● Over temperature protection
● RoHS Compliant and 100% Lead (Pb) Free
APPLICATIONS
● Distributed power systems● Networking systems
● FPGA, DSP, ASIC power supplies
● Notebook computers
● Green electronics or appliance Pin Assignments Pin
DESCRIPTION
Pin Symbol 1 BOOT 2 IN 3 SW 4 GND 5 FB 6 COMP 7 EN 8 FREQDESCRIPTION
High-side Gate drive boost input. Power Input Power Switching Output.
