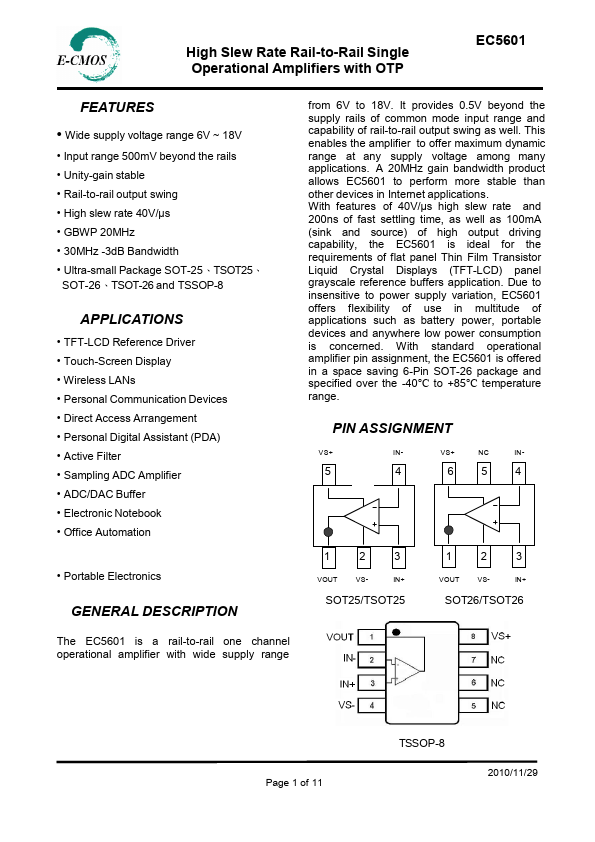

EC5601
FEATURES
- Wide supply voltage range 6V ~ 18V
- Input range 500m V beyond the rails
- Unity-gain stable
- Rail-to-rail output swing
- High slew rate 40V/μs
- GBWP 20MHz
- 30MHz -3d B Bandwidth
- Ultra-small Package SOT-25、TSOT25、 SOT-26、TSOT-26 and TSSOP-8
APPLICATIONS
- TFT-LCD Reference Driver
- Touch-Screen Display
- Wireless LANs
- Personal munication Devices
- Direct Access Arrangement
- Personal Digital Assistant (PDA)
- Active Filter
- Sampling ADC Amplifier
- ADC/DAC Buffer
- Electronic Notebook
- Office Automation
- Portable Electronics
GENERAL DESCRIPTION from 6V to 18V. It provides 0.5V beyond the supply rails of mon mode input range and capability of rail-to-rail output swing as well. This enables the amplifier to offer maximum dynamic range at any supply voltage among many applications. A 20MHz gain bandwidth product allows EC5601 to perform more stable than other devices in Internet applications. With features of 40V/μs high slew rate and 200ns of fast settling time, as...
