EC5721 Datasheet | E-CMOS

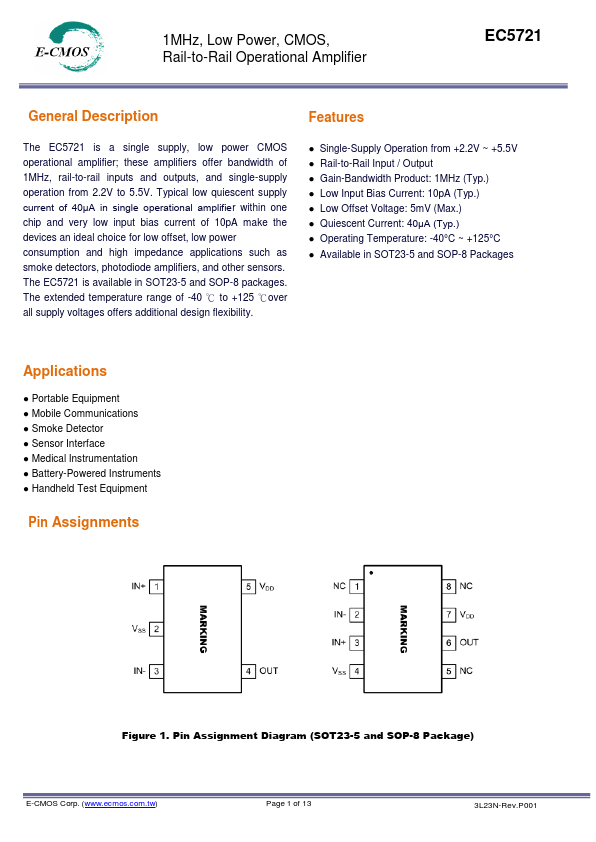

1MHz, Low Power, CMOS, Rail-to-Rail Operational Amplifier General Description Features The EC5721 is a single supply, low power CMOS operational amplifier; these amplifiers offer bandwidth of 1MHz, rail-to-rail inputs and outputs, and single-supply operation from 2.2V to 5.5V. Typical low quiescent supply current of 40μA in single operational amplifier within one chip and very low input bias current of 10p A make the devices an ideal choice for low offset, low power consumption and high impedance applications such as smoke detectors, photodiode amplifiers, and other sensors. The EC5721 is available in SOT23-5 and SOP-8 packages. The extended temperature range of -40 ℃ to +125 ℃over all supply voltages offers additional design flexibility. - Single-Supply Operation from +2.2V ~ +5.5V - Rail-to-Rail Input / Output - Gain-Bandwidth Product: 1MHz (Typ.) - Low Input Bias Current: 10p A (Typ.) - Low Offset Voltage: 5m V (Max.) - Quiescent Current: 40μA (Typ.) - Operating Temperature: -40°C ~ +125°C - Available in SOT23-5 and SOP-8 Packages Applications - Portable Equipment - Mobile munications - Smoke Detector - Sensor Interface - Medical Instrumentation - Battery-Powered Instruments - Handheld Test Equipment Pin Assignments Figure 1. Pin Assignment Diagram (SOT23-5 and SOP-8 Package) E-CMOS Corp. (.ecmos..tw) Page 1 of 13 3L23N-Rev.P001 1MHz, Low Power, CMOS, Rail-to-Rail Operational Amplifier Ordering Information EC5721NN XX X B2：SOT23-5L M1：SOP-8L Part...
