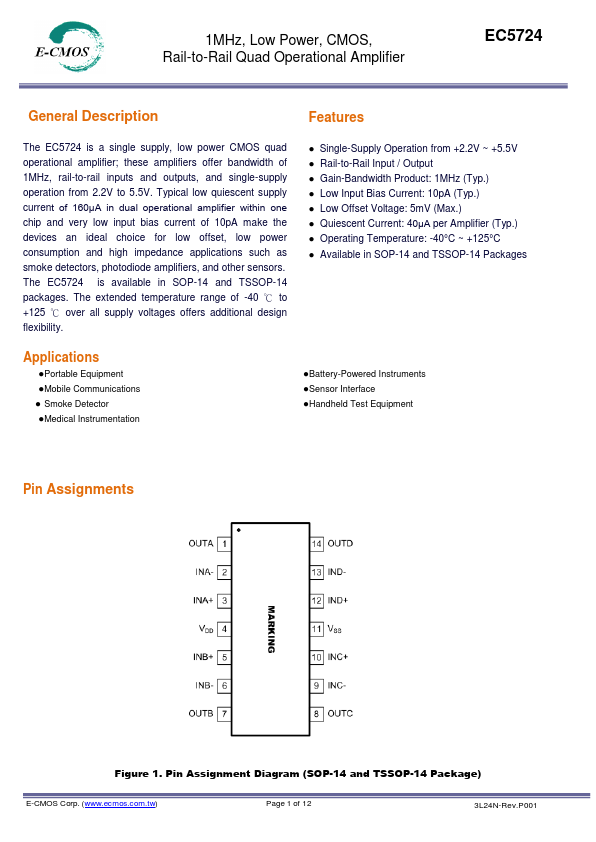

E-CMOS EC5724
The EC5724 is a single supply, low power CMOS quad operational amplifier; these amplifiers offer bandwidth of 1MHz, rail-to-rail inputs and outputs, and single-supply operation from 2.2V to 5.5V. The EC5724 is available in SOP-14 and TSSOP-14 packages. The extended temperature range of -40 ℃ to +125 ℃ over all supply voltages offers additional design flexibility.| Part No. | EC5724 |
|---|---|
| Datasheet | EC5724 Download |
| Manufacturer |  E-CMOS |
| Description | Rail-to-Rail Quad Operational Amplifier |
| Buy | Stock & Price |
GENERAL DESCRIPTION
FEATURES
Typical low quiescent supply current of 160μA in dual operational amplifier within one chip and very low input bias current of 10pA make the devices an ideal choice for low offset, low power consumption and high impedance applications such as smoke detectors, photodiode amplifiers, and other sensors.● Single-Supply Operation from +2.2V ~ +5.5V
● Rail-to-Rail Input / Output
● Gain-Bandwidth Product: 1MHz (Typ.)
● Low Input Bias Current: 10pA (Typ.)
● Low Offset Voltage: 5mV (Max.)
● Quiescent Current: 40μA per Amplifier (Typ.)
● Operating Temperature: -40°C ~ +125°C
● Available in SOP-14 and TSSOP-14 Packages
APPLICATIONS
●Portable Equipment●Mobile Communications
● Smoke Detector
●Medical Instrumentation
●Battery-Powered Instruments
●Sensor Interface
●Handheld Test Equipment Pin Assignments Figure 1. Pin Assignment Diagram (SOP-14 and TSSOP-14 Package) E-CMOS Corp. ( Page 1 of 12 3L24N-Rev.P001 1MHz, Low Power, CMOS, Rail-to-Rail Quad Operational Amplifier...
