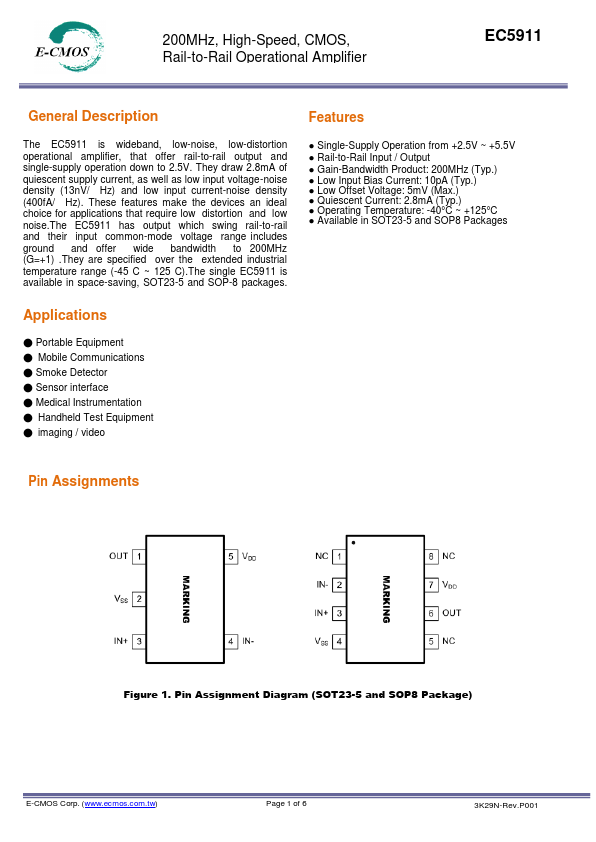

EC5911
Description
Features
The EC5911 is wideband, low-noise, low-distortion operational amplifier, that offer rail-to-rail output and single-supply operation down to 2.5V. They draw 2.8m A of quiescent supply current, as well as low input voltage-noise density (13n V/ Hz) and low input current-noise density (400f A/ Hz). These features make the devices an ideal choice for applications that require low distortion and low noise.The EC5911 has output which swing rail-to-rail and their input mon-mode voltage range includes ground and offer wide bandwidth to 200MHz (G=+1) .They are specified over the extended industrial temperature range (-45 C ~ 125 C).The single EC5911 is available in space-saving, SOT23-5 and SOP-8 packages.
- Single-Supply Operation from +2.5V ~ +5.5V
- Rail-to-Rail Input / Output
- Gain-Bandwidth Product: 200MHz (Typ.)
- Low Input Bias Current: 10p A (Typ.)
- Low Offset Voltage: 5m V (Max.)
- Quiescent Current: 2.8m A (Typ.)
- Operating Temperature: -40°C ~ +125°C
- Available...
