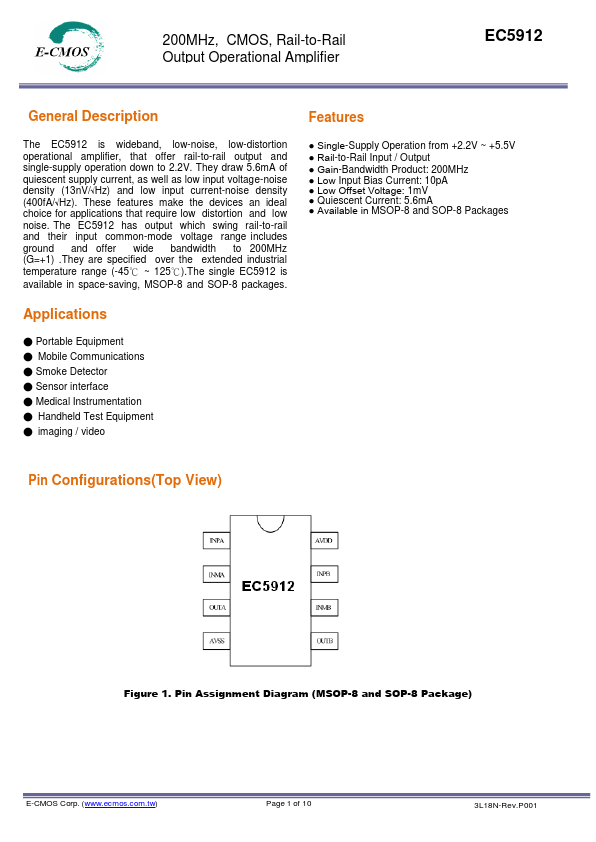

EC5912
Description
Features
The EC5912 is wideband, low-noise, low-distortion operational amplifier, that offer rail-to-rail output and single-supply operation down to 2.2V. They draw 5.6m A of quiescent supply current, as well as low input voltage-noise density (13n V/Hz) and low input current-noise density (400f A/Hz). These features make the devices an ideal choice for applications that require low distortion and low noise. The EC5912 has output which swing rail-to-rail and their input mon-mode voltage range includes ground and offer wide bandwidth to 200MHz (G=+1) .They are specified over the extended industrial temperature range (-45℃ ~ 125℃).The single EC5912 is available in space-saving, MSOP-8 and SOP-8 packages.
- Single-Supply Operation from +2.2V ~ +5.5V
- Rail-to-Rail Input / Output
- Gain-Bandwidth Product: 200MHz
- Low Input Bias Current: 10p A
- Low Offset Voltage: 1m V
- Quiescent Current: 5.6m A
- Available in MSOP-8 and SOP-8 Packages
Applications
- Portable...
