EC9202 - 200mA PFM Step-up DC-DC Converter

Datasheet Summary

Description

The EC9202 is a compact PFM step-up DC/DC converter that operates from an input voltage as low as 0.8 Volt.

The low start-up input voltage makes EC9202 specially designed for portable devices from one or two cell battery, delivering up to 200mA load current at VIN=1.8V VOUT=3.3V.

Features

  • a band gap reference, trimming technology, current -limited, PFM control scheme which combines the advantages of PWM ( higher output power and efficiency) and those of traditional PFM (ultra-low quiescent current). The internal 0.6 ohm low turn-on resistance NMOS power switch provides stable and high-efficiency operation over a board load current range. The EC9202 devices are available in SOT23-3,SOT23-5 & SOT89 package.  Typical.

📥 Download Datasheet

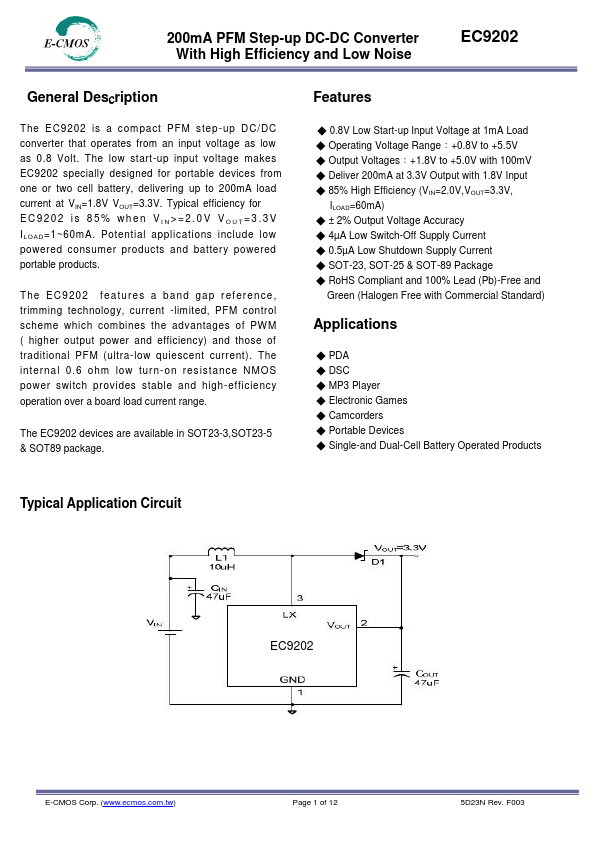

Datasheet preview – EC9202

Datasheet Details

Part number EC9202
Manufacturer E-CMOS
File Size 657.34 KB
Description 200mA PFM Step-up DC-DC Converter
Datasheet download datasheet EC9202 Datasheet

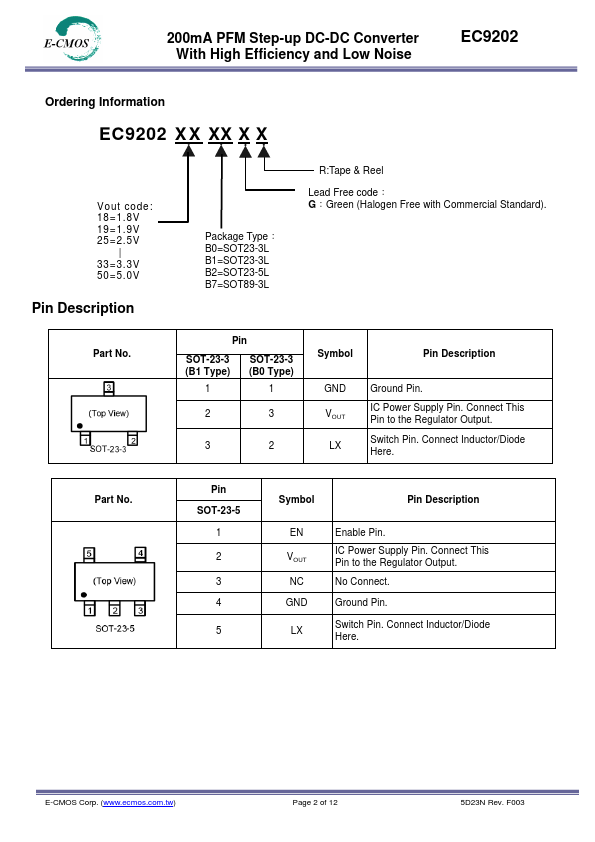

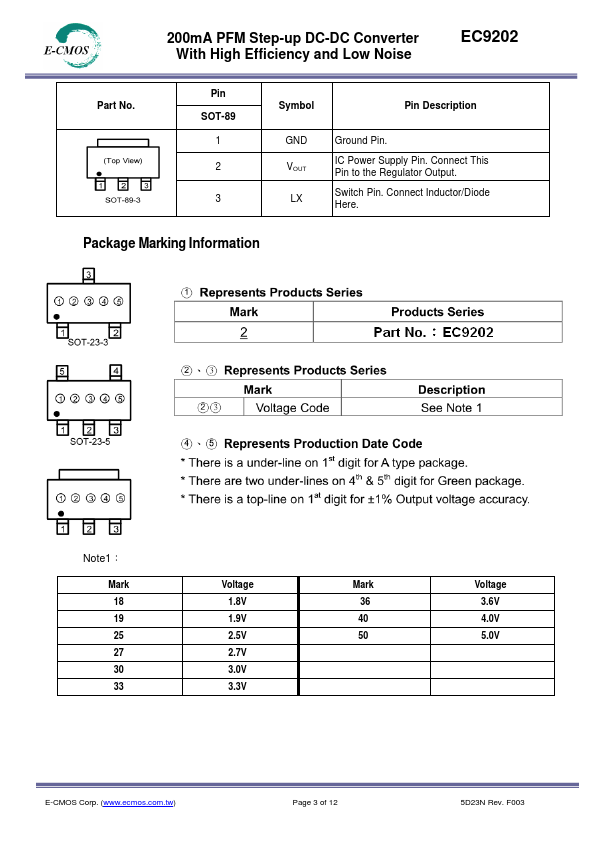

Additional preview pages of the EC9202 datasheet.

📁 Similar Datasheet

  • EC92 - Steile Triode (RFT)
  • EC92 - R.F. Triode 1956 (Philips)
  • EC92 - Triode (LA RADIOTECHNIQUE)
  • EC92 - R.F. Triode 1969 (Philips)
  • EC90 - S.Q. Tube (Philips)
  • EC900 - Triode Neutrode (MAZDABELVU)
  • EC900 - VHF Triode (Philips)
  • EC91 - Miniature Grounded Grid Triode (Mullard)
  • EC91 - S.Q. Tube (Philips)
  • EC91 - Grounded Grid Triode (Philips)
Other Datasheets by E-CMOS
  • EC9206 - PFM Step-up DC-DC Converter
  • EC9219 - TFT-LCD DC-DC Converters
  • EC9288 - 5V 6A 1.2MHz Synchronous Boost Converter
  • EC9409 - 2A 150KHz PWM Buck DC/DC Converter
  • EC9410 - 2A 380KHZ 20V PWM Buck DC/DC Converter
  • EC9413 - 2A 380KHZ 20V PWM Buck DC/DC Converter
  • EC9483 - 3A 380KHZ 28V PWM Buck DC/DC Converter
  • EC9522T - LI-ION PROTECTION IC

Full PDF Text Transcription

Click to expand full text
200mA PFM Step-up DC-DC Converter With High Efficiency and Low Noise EC9202 General Description The EC9202 is a compact PFM step-up DC/DC converter that operates from an input voltage as low as 0.8 Volt. The low start-up input voltage makes EC9202 specially designed for portable devices from one or two cell battery, delivering up to 200mA load current at VIN=1.8V VOUT=3.3V. Typical efficiency for EC9202 is 85% when VIN>=2.0V VOUT=3.3V ILOAD=1~60mA. Potential applications include low powered consumer products and battery powered portable products. The EC9202 features a band gap reference, trimming technology, current -limited, PFM control scheme which combines the advantages of PWM ( higher output power and efficiency) and those of traditional PFM (ultra-low quiescent current).
