E-CMOS ETM1006
The ETM1006 is a low cost Low Noise Amplifier (LNA) provides 28.5dB gain and 1.1dB noise figure for GPS (Global Positioning System) application in 1.57542GHz. The LNA is implemented as a two stages monolithic microwave integrated circuit (MMIC). The low noise figure of device can improve the sensitivity of the system and very low current consumption can maximize the battery life in portable equipment.| Part No. | ETM1006 |
|---|---|
| Datasheet | ETM1006 Download |
| Manufacturer |  E-CMOS |
| Description | Low Noise Amplifier |
| Buy | Stock & Price |

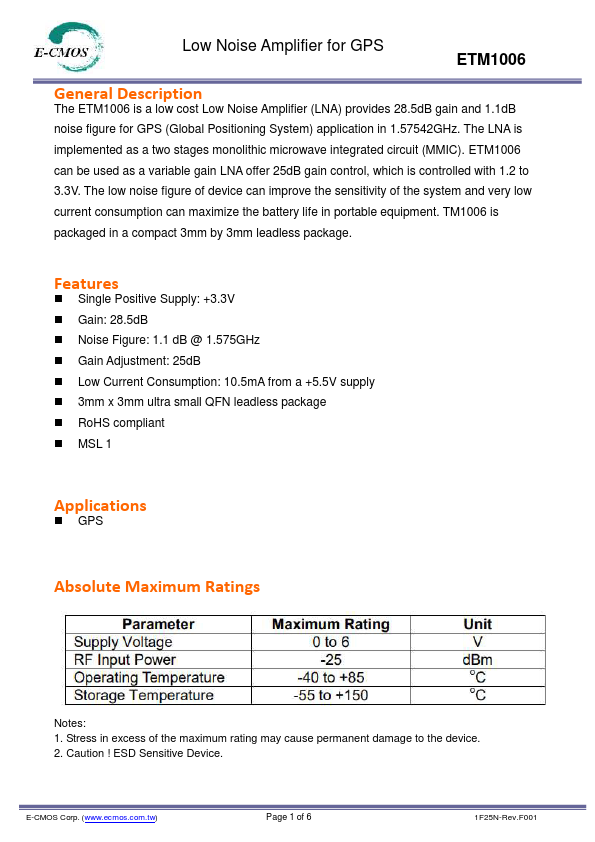

GENERAL DESCRIPTION
ETM1006 can be used as a variable gain LNA offer 25dB gain control, which is controlled with 1.2 to 3.3V. TM1006 is packaged in a compact 3mm by 3mm leadless package.FEATURES
● Single Positive Supply: +3.3V● Gain: 28.5dB
● Noise Figure: 1.1 dB @ 1.575GHz
● Gain Adjustment: 25dB
● Low Current Consumption: 10.5mA from a +5.5V supply
● 3mm x 3mm ultra small QFN leadless package
● RoHS compliant
● MSL 1
APPLICATIONS
● GPSABSOLUTE MAXIMUM RATINGS

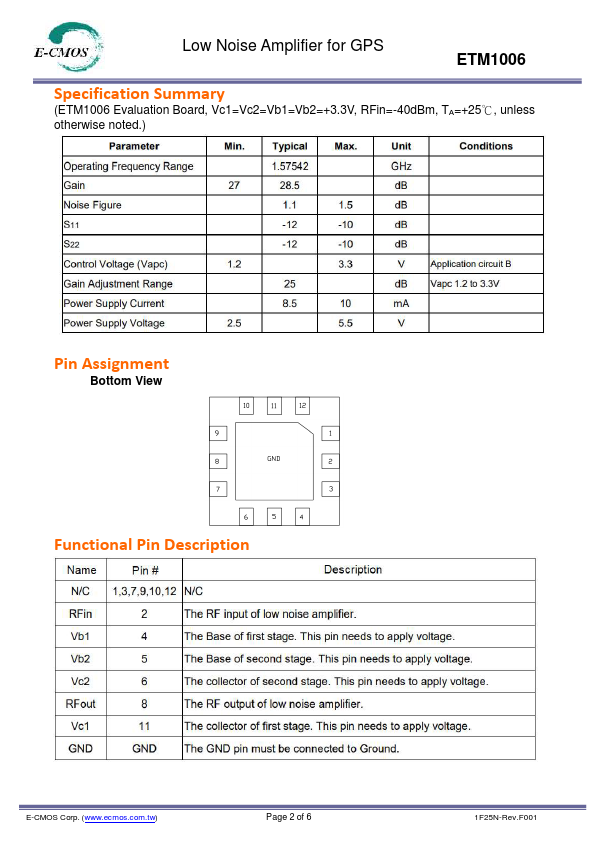

Notes: 1. Stress in excess of the maximum rating may cause permanent damage to the device. 2. Caution ! ESD Sensitive Device. E-CMOS Corp. ( Page 1 of 6 1F25N-Rev.F001 Low Noise Amplifier for GPS ETM1006 Specification Summary (ETM1006 Evaluation Board, Vc1=Vc2=Vb1=Vb2=+3.3V, RFin=-40dBm, TA=+25℃, unless otherwise noted.) Pin Assignment Bottom View Functional PinDESCRIPTION

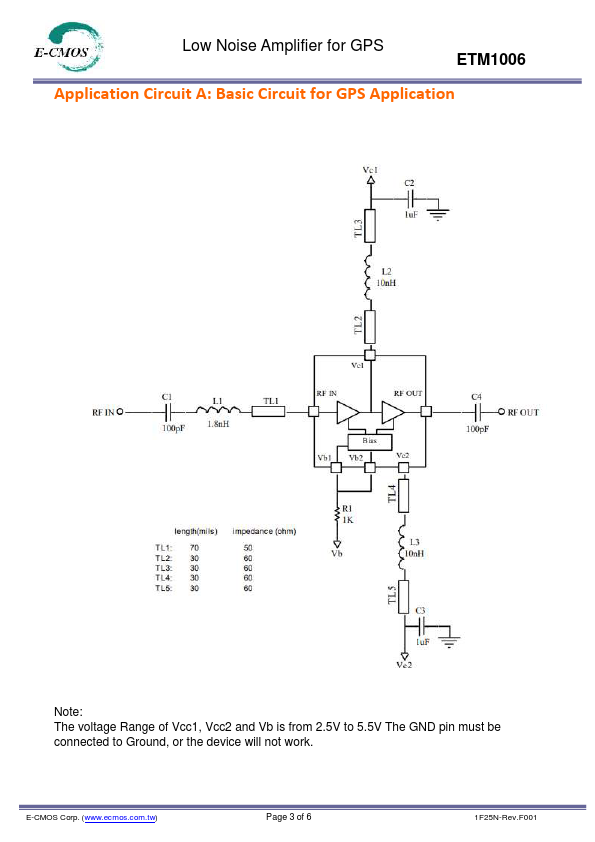

E-CMOS Corp. ( Page 2 of 6 1F25N-Rev.F001 Low Noise Amplifier for GPS ETM1006 Application Circuit A: Basic Circuit for GPS Application Note: The voltage Range of Vcc1, Vcc2 and Vb is from 2.5V to 5.5V The GND pin must be connected to Ground, or the device will not work.
