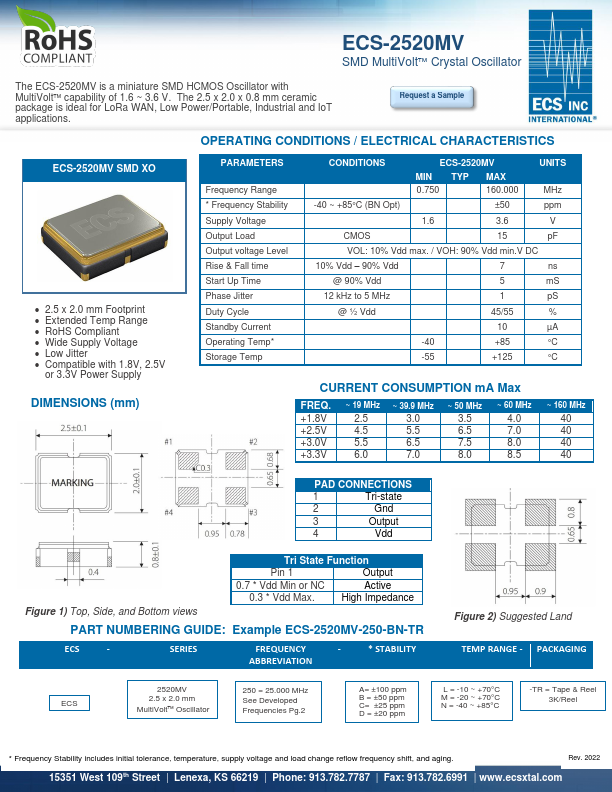

ECS-2520MV
SMD Multi Volt Crystal Oscillator
The ECS-2520MV is a miniature SMD HCMOS Oscillator with
Multi Volt capability of 1.6 ~ 3.6 V. The 2.5 x 2.0 x 0.8 mm ceramic package is ideal for Lo Ra WAN, Low Power/Portable, Industrial and Io T applications.
Request a Sample
OPERATING CONDITIONS / ELECTRICAL CHARACTERISTICS
ECS-2520MV SMD XO
- 2.5 x 2.0 mm Footprint
- Extended Temp Range
- Ro HS pliant
- Wide Supply Voltage
- Low Jitter
- patible with 1.8V, 2.5V or 3.3V Power Supply

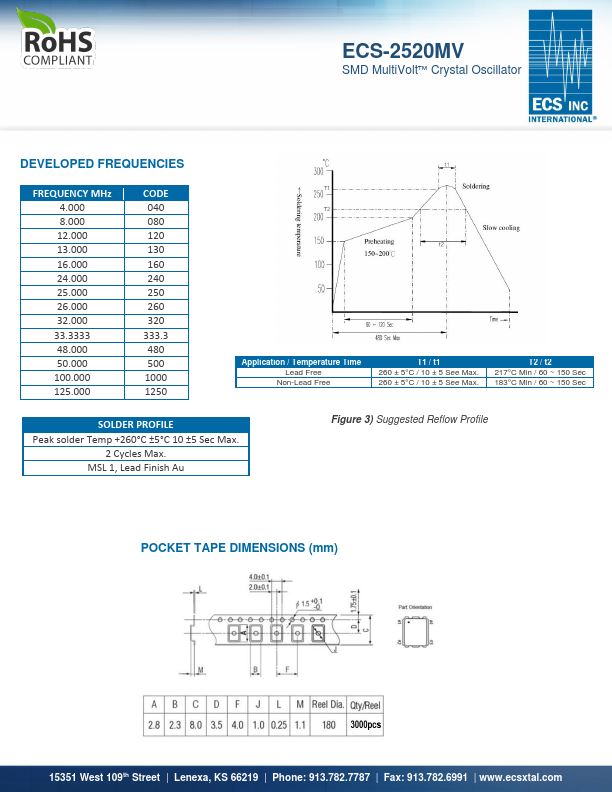

DIMENSIONS (mm)
PARAMETERS
Frequency Range
- Frequency Stability Supply Voltage Output Load Output voltage Level Rise & Fall time Start Up Time Phase Jitter Duty Cycle Standby Current Operating Temp- Storage Temp
CONDITIONS
UNITS
MIN TYP 0.750
MAX 160.000
MHz
-40 ~ +85°C (BN Opt)
±50 ppm
CMOS
15 p F
VOL: 10% Vdd max. / VOH: 90% Vdd min.V DC
10% Vdd
- 90% Vdd
7 ns
@ 90% Vdd
5 m S
12 k Hz to 5 MHz
1 p S
@ ½ Vdd
45/55
%
µA
-40...
