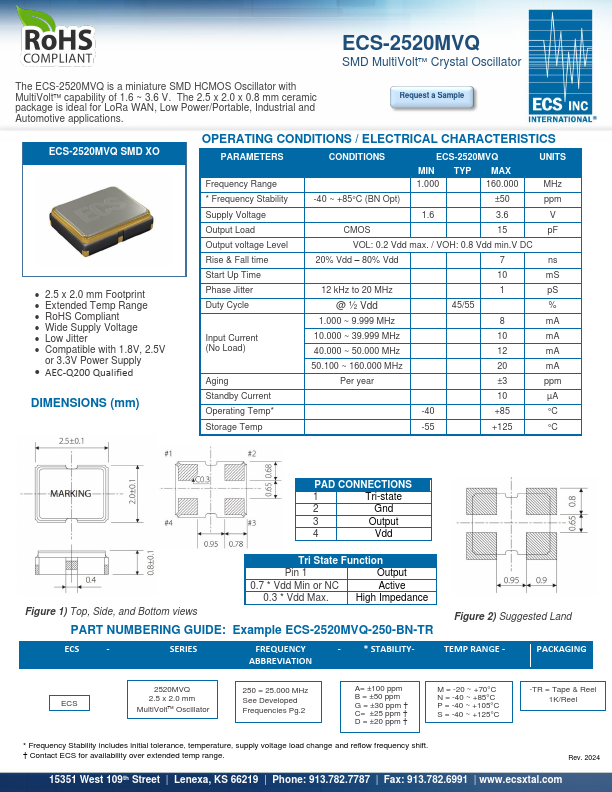

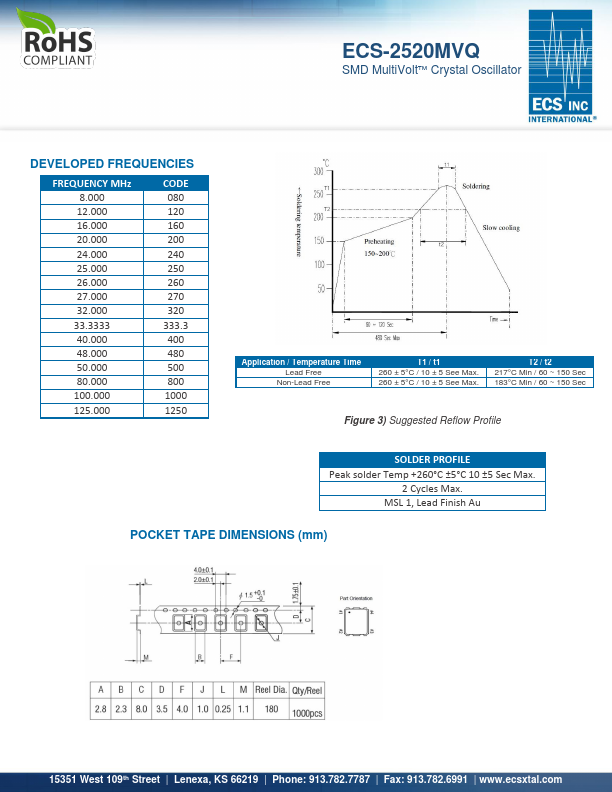

ECS-2520MVQ
SMD Multi Volt Crystal Oscillator
The ECS-2520MVQ is a miniature SMD HCMOS Oscillator with
Multi Volt capability of 1.6 ~ 3.6 V. The 2.5 x 2.0 x 0.8 mm ceramic package is ideal for Lo Ra WAN, Low Power/Portable, Industrial and Automotive applications.
Request a Sample
ECS-2520MVQ SMD XO
- 2.5 x 2.0 mm Footprint
- Extended Temp Range
- Ro HS pliant
- Wide Supply Voltage
- Low Jitter
- patible with 1.8V, 2.5V or 3.3V Power Supply
- AEC-Q200 Qualified
- DIMENSIONS (mm)
OPERATING CONDITIONS / ELECTRICAL CHARACTERISTICS
PARAMETERS
Frequency Range
- Frequency Stability Supply Voltage Output Load Output voltage Level Rise & Fall time Start Up Time Phase Jitter Duty Cycle
Input Current (No Load)
Aging Standby Current Operating Temp- Storage Temp
CONDITIONS
UNITS
MIN TYP MAX
MHz
-40 ~ +85°C (BN Opt)
±50 ppm
CMOS
15 p F
VOL: 0.2 Vdd max. / VOH: 0.8 Vdd min.V DC
20% Vdd
- 80% Vdd
7 ns
10 m S
12 k Hz to 20 MHz
1 p S
@ ½...
