ECX-1637B - SMD CRYSTAL

📥 Download Datasheet

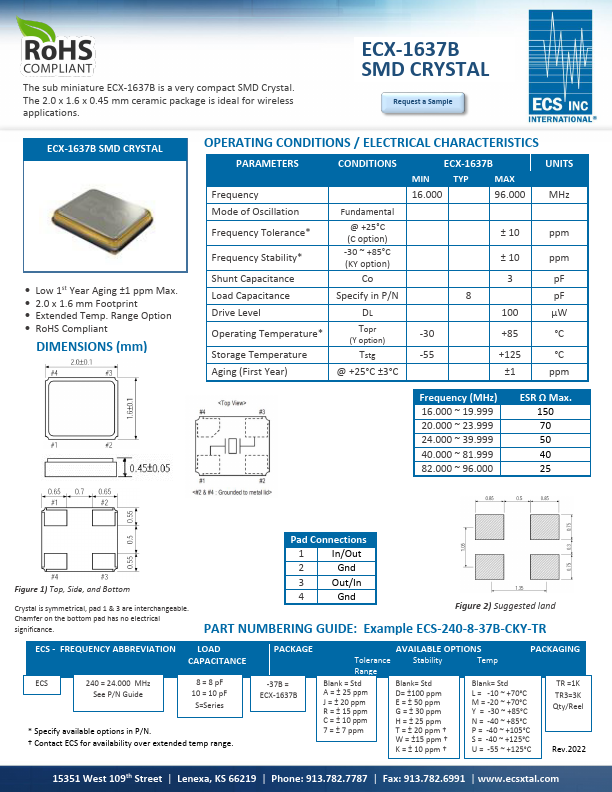

Datasheet preview – ECX-1637B

Datasheet Details

Part number ECX-1637B
Manufacturer ECS
File Size 393.22 KB
Description SMD CRYSTAL
Datasheet download datasheet ECX-1637B Datasheet

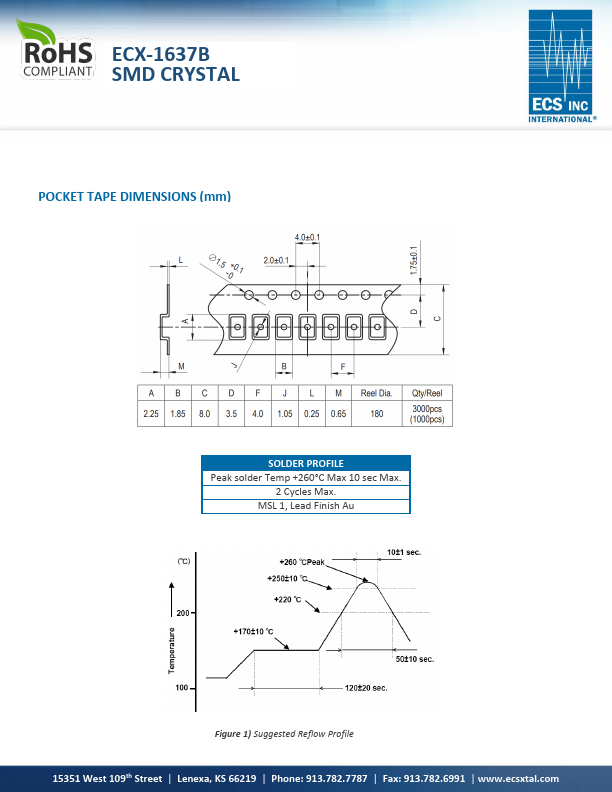

Additional preview pages of the ECX-1637B datasheet.

📁 Similar Datasheet

  • ECX-5890-24.576M-I2TR - CRYSTAL (Ecliptek)
  • ECX10N20 - N-CHANNEL LATERAL MOSFET (EXICON)
  • ECX10N20R - N-CHANNEL LATERAL MOSFET (EXICON)
  • ECX10P20 - P-CHANNEL LATERAL MOSFET (EXICON)
  • ECX6034 - Surface Mount Crystal (ECM Electronics Limited)
  • ECXO5 - Surface Mount Oscillator (ECM Electronics Limited)
  • ECXO62 - (ECXO62 / ECXO63) Surface Mount Oscillator (ECM Electronics Limited)
  • ECXO63 - (ECXO62 / ECXO63) Surface Mount Oscillator (ECM Electronics Limited)
  • ECXO91 - Surface Mount Oscillator (ECM Electronics Limited)
Other Datasheets by ECS

Full PDF Text Transcription

Click to expand full text
The sub miniature ECX-1637B is a very compact SMD Crystal. The 2.0 x 1.6 x 0.45 mm ceramic package is ideal for wireless applications. ECX-1637B SMD CRYSTAL Request a Sample ECX-1637B SMD CRYSTAL • Low 1st Year Aging ±1 ppm Max. • 2.0 x 1.6 mm Footprint • Extended Temp. Range Option • RoHS Compliant DIMENSIONS (mm) OPERATING CONDITIONS / ELECTRICAL CHARACTERISTICS PARAMETERS Frequency Mode of Oscillation Frequency Tolerance* Frequency Stability* Shunt Capacitance Load Capacitance Drive Level Operating Temperature* Storage Temperature Aging (First Year) CONDITIONS Fundamental @ +25°C (C option) -30 ~ +85°C (KY option) Co Specify in P/N DL Topr (Y option) Tstg @ +25°C ±3°C ECX-1637B MIN TYP MAX 16.000 96.
