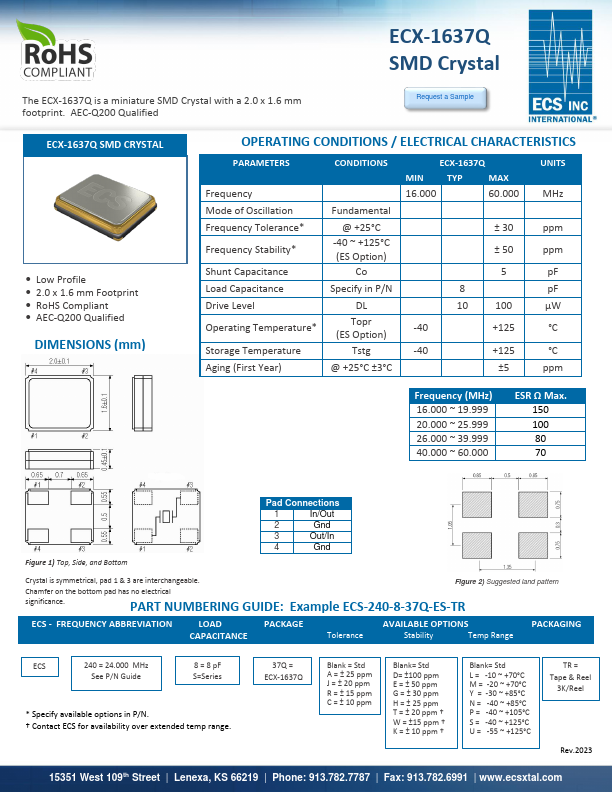

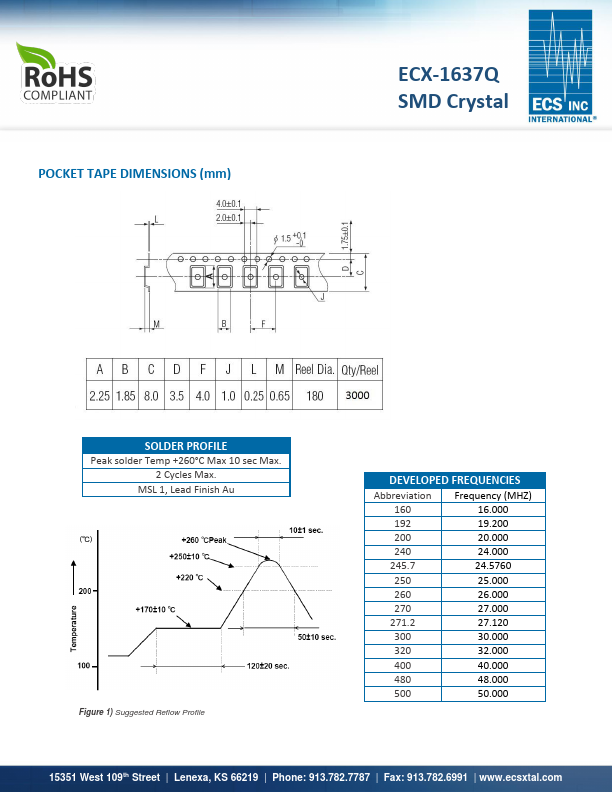

ECX-1637Q SMD Crystal The ECX-1637Q is a miniature SMD Crystal with a 2.0 x 1.6 mm footprint. AEC-Q200 Qualified Request a Sample ECX-1637Q SMD CRYSTAL • Low Profile • 2.0 x 1.6 mm Footprint • RoHS Compliant • AEC-Q200 Qualified DIMENSIONS (mm) OPERATING CONDITIONS / ELECTRICAL CHARACTERISTICS PARAMETERS Frequency Mode of Oscillation Frequency Tolerance* Frequency Stability* Shunt Capacitance Load Capacitance Drive Level Operating Temperature* Storage Temperature Aging (First Year) CONDITIONS Fundamental @ +25°C -40 ~ +125°C (ES Option) Co Specify in P/N DL Topr (ES Option) Tstg @ +25°C ±3°C ECX-1637Q MIN TYP MAX 16.000 60.000 ± 30 ± 50 5 8 10 100 -40 +125 -40 +125 ±5 UNITS MHz ppm ppm pF pF μW °C °C ppm Frequency (MHz) 16.000 ~ 19.999 20.000 ~ 25.999 26.000 ~ 39.
