ECX-2236B2 - SMD CRYSTAL

📥 Download Datasheet

Datasheet preview – ECX-2236B2

Datasheet Details

Part number ECX-2236B2
Manufacturer ECS
File Size 1.04 MB
Description SMD CRYSTAL
Datasheet download datasheet ECX-2236B2 Datasheet

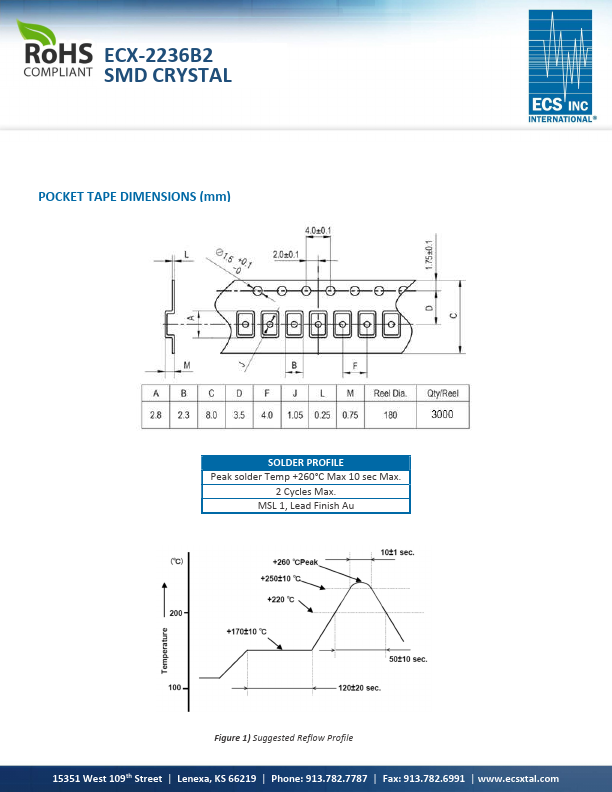

Additional preview pages of the ECX-2236B2 datasheet.

📁 Similar Datasheet

  • ECX-5890-24.576M-I2TR - CRYSTAL (Ecliptek)
  • ECX10N20 - N-CHANNEL LATERAL MOSFET (EXICON)
  • ECX10N20R - N-CHANNEL LATERAL MOSFET (EXICON)
  • ECX10P20 - P-CHANNEL LATERAL MOSFET (EXICON)
  • ECX6034 - Surface Mount Crystal (ECM Electronics Limited)
  • ECXO5 - Surface Mount Oscillator (ECM Electronics Limited)
  • ECXO62 - (ECXO62 / ECXO63) Surface Mount Oscillator (ECM Electronics Limited)
  • ECXO63 - (ECXO62 / ECXO63) Surface Mount Oscillator (ECM Electronics Limited)
  • ECXO91 - Surface Mount Oscillator (ECM Electronics Limited)
Other Datasheets by ECS

Full PDF Text Transcription

Click to expand full text

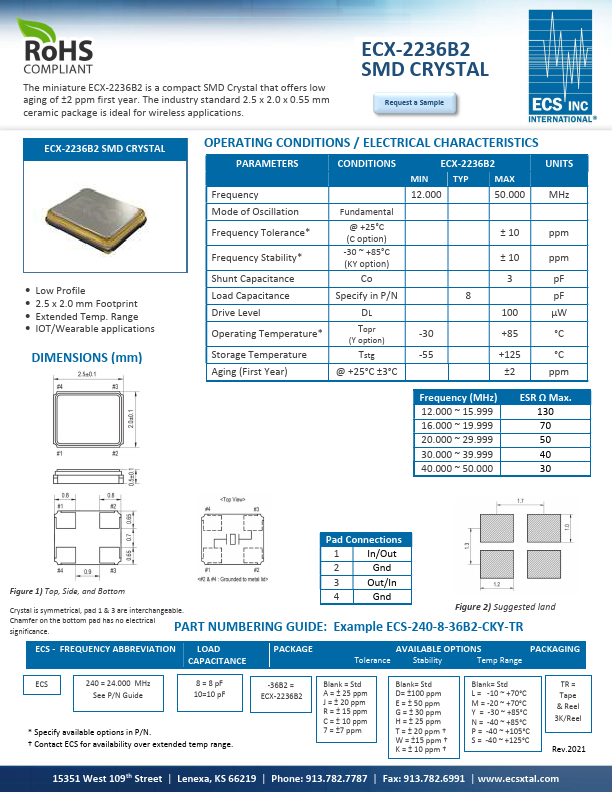

The miniature ECX-2236B2 is a compact SMD Crystal that offers low aging of ±2 ppm first year. The industry standard 2.5 x 2.0 x 0.55 mm ceramic package is ideal for wireless applications. ECX-2236B2 SMD CRYSTAL Request a Sample ECX-2236B2 SMD CRYSTAL  Low Profile  2.5 x 2.0 mm Footprint  Extended Temp. Range  IOT/Wearable applications DIMENSIONS (mm) OPERATING CONDITIONS / ELECTRICAL CHARACTERISTICS PARAMETERS Frequency Mode of Oscillation Frequency Tolerance* Frequency Stability* Shunt Capacitance Load Capacitance Drive Level Operating Temperature* Storage Temperature Aging (First Year) CONDITIONS Fundamental @ +25°C (C option) -30 ~ +85°C (KY option) Co Specify in P/N DL Topr (Y option) Tstg @ +25°C ±3°C ECX-2236B2 MIN TYP MAX 12.000 50.
