BZG05C36 - ZENER DIODES

Download the BZG05C36 datasheet PDF. This datasheet also covers the BZG05C3V3 variant, as both devices belong to the same zener diodes family and are provided as variant models within a single manufacturer datasheet.

Features

  • :.
  • Glass passivated junction.
  • High reliability.
  • Voltage range 3.3 V to 100 V.
  • Low leakage current.
  • Pb / RoHS Free.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (BZG05C3V3-EIC.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number BZG05C36
Manufacturer EIC
File Size 197.47 KB
Description ZENER DIODES
Datasheet download datasheet BZG05C36 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
BZG05C36 Zener Diodes GME
BZG05C36 SURFACE MOUNT SILICON ZENER DIODES SunMate
BZG05C36 Zener Diodes Vishay
BZG05C36-M Zener Diode Vishay
BZG05C30 Zener Diodes GME

Other Datasheets by EIC

Part Number Description
BZG05C30 ZENER DIODES
BZG05C33 ZENER DIODES
BZG05C39 ZENER DIODES
BZG05C3V3 ZENER DIODES
BZG05C3V6 ZENER DIODES

Full PDF Text Transcription

Click to expand full text

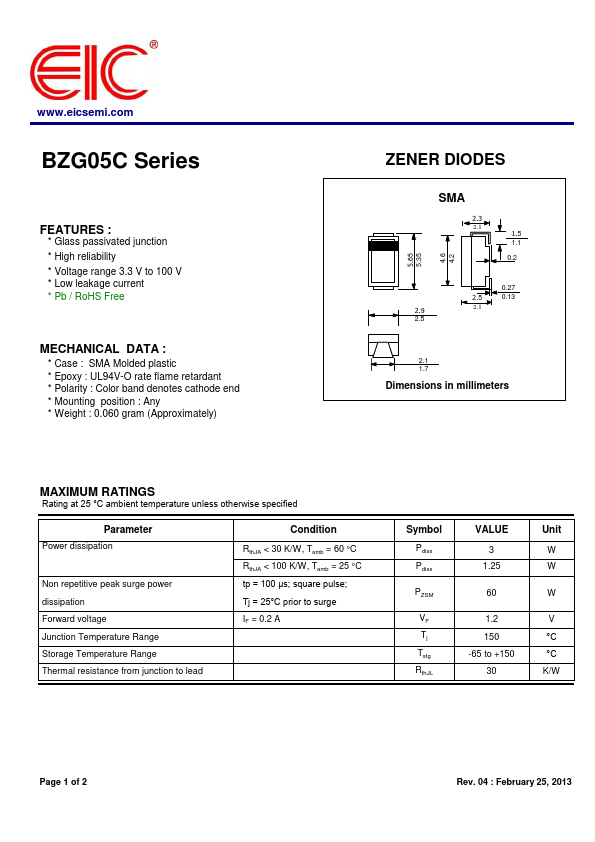

www.eicsemi.com BZG05C Series FEATURES : * Glass passivated junction * High reliability * Voltage range 3.3 V to 100 V * Low leakage current * Pb / RoHS Free MECHANICAL DATA : * Case : SMA Molded plastic * Epoxy : UL94V-O rate flame retardant * Polarity : Color band denotes cathode end * Mounting position : Any * Weight : 0.060 gram (Approximately) ZENER DIODES 5.65 5.35 4. 6 4. 2 SMA 2.3 2.1 1.5 1.1 0.2 0.27 2.5 0.13 2.9 2.1 2.5 2.1 1.
