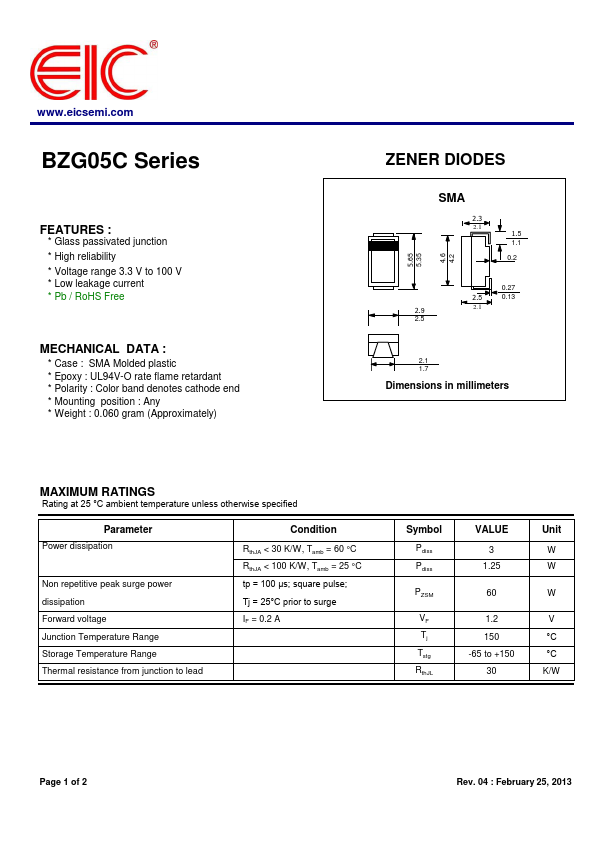

Datasheet Summary
.eicsemi.
BZG05C Series
Features
:
- Glass passivated junction
- High reliability
- Voltage range 3.3 V to 100 V
- Low leakage current
- Pb / RoHS Free
MECHANICAL DATA :
- Case : SMA Molded plastic
- Epoxy : UL94V-O rate flame retardant
- Polarity : Color band denotes cathode end
- Mounting position : Any
- Weight : 0.060 gram (Approximately)
ZENER DIODES
5.65 5.35 4. 6 4. 2
2.3 2.1
1.5 1.1
2.1 1.7
Dimensions in millimeters
MAXIMUM RATINGS
Rating at 25 °C ambient temperature unless otherwise specified
Parameter Power dissipation
Non repetitive peak surge power dissipation Forward voltage Junction Temperature Range Storage Temperature...
