BZG05C30 - Zener Diodes

Download the BZG05C30 datasheet PDF. This datasheet also covers the BZG05C3V3 variant, as both devices belong to the same zener diodes family and are provided as variant models within a single manufacturer datasheet.

Features

  • High reliability.
  • Voltage range 3.3 V to 100 V.
  • Fits onto 5 mm SMD footpads.
  • Wave and reflow solderable.
  • AEC-Q101 qualified available.
  • Base P/N-E3 - RoHS-compliant, commercial grade.
  • Base P/NHE3 - RoHS-compliant, AEC-Q101 qualified.
  • Material categorization: for definitions of compliance please see www. vishay. com/doc?99912.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (BZG05C3V3-Vishay.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
BZG05C30 Zener Diodes GME
BZG05C30 SURFACE MOUNT SILICON ZENER DIODES SunMate
BZG05C30 ZENER DIODES EIC
BZG05C33 Zener Diodes GME
BZG05C33 SURFACE MOUNT SILICON ZENER DIODES SunMate

Other Datasheets by Vishay

Part Number Description
BZG05C30-M Zener Diode
BZG05C33 Zener Diodes
BZG05C33-M Zener Diode
BZG05C36 Zener Diodes
BZG05C36-M Zener Diode

Full PDF Text Transcription

Click to expand full text

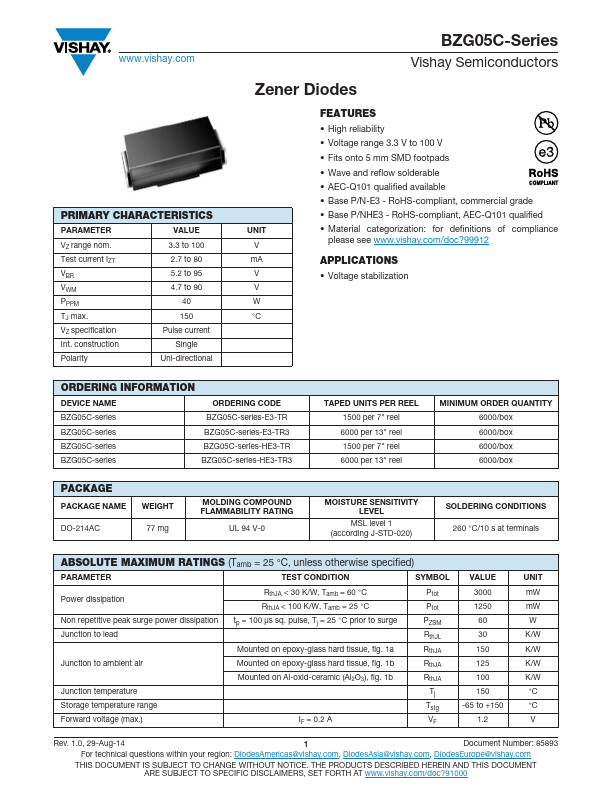

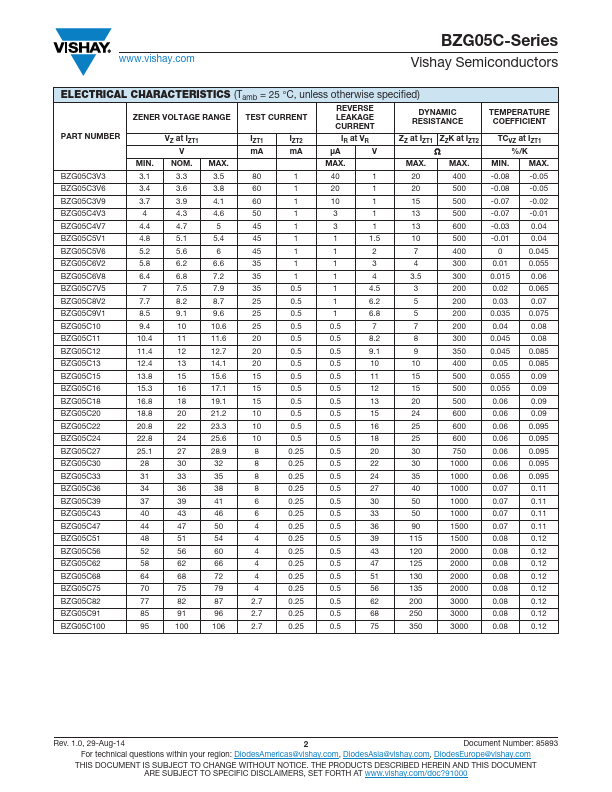

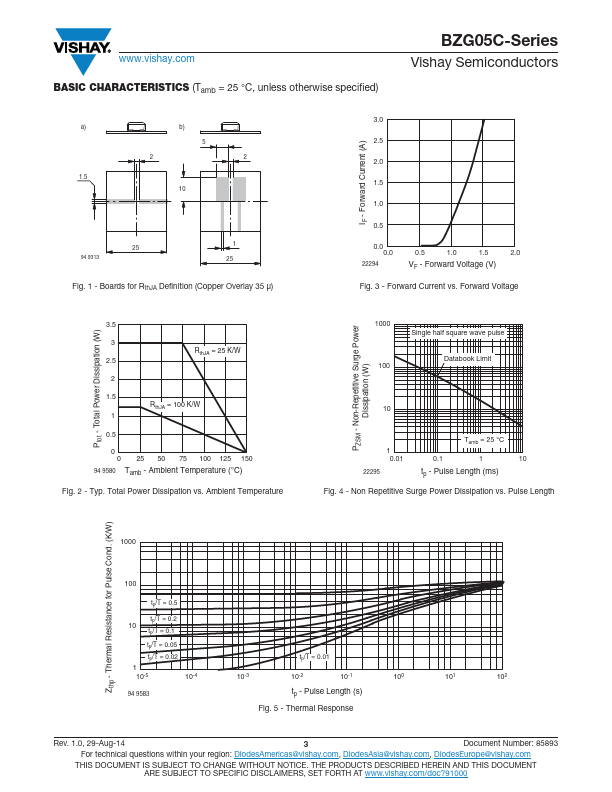

www.vishay.com PRIMARY CHARACTERISTICS PARAMETER VALUE VZ range nom. Test current IZT VBR VWM PPPM TJ max. VZ specification Int. construction 3.3 to 100 2.7 to 80 5.2 to 95 4.7 to 90 40 150 Pulse current Single Polarity Uni-directional BZG05C-Series Vishay Semiconductors Zener Diodes UNIT V mA V V W °C FEATURES • High reliability • Voltage range 3.3 V to 100 V • Fits onto 5 mm SMD footpads • Wave and reflow solderable • AEC-Q101 qualified available • Base P/N-E3 - RoHS-compliant, commercial grade • Base P/NHE3 - RoHS-compliant, AEC-Q101 qualified • Material categorization: for definitions of compliance please see www.vishay.
