BZG05C33
BZG05C33 is Zener Diodes manufactured by Vishay.
- Part of the BZG05C3V3 comparator family.
- Part of the BZG05C3V3 comparator family.
.vishay.

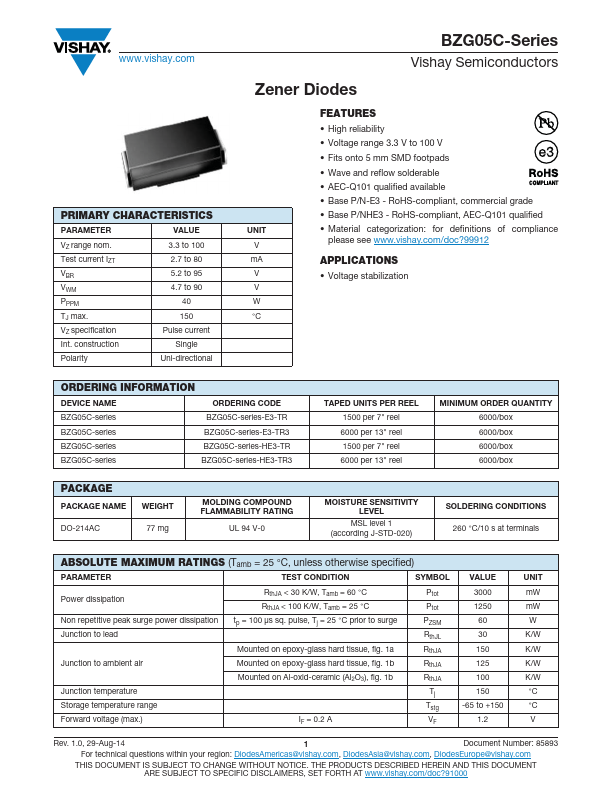

PRIMARY CHARACTERISTICS
PARAMETER
VALUE
VZ range nom. Test current IZT VBR VWM PPPM TJ max. VZ specification Int. construction
3.3 to 100 2.7 to 80 5.2 to 95 4.7 to 90
40 150 Pulse current Single
Polarity
Uni-directional
BZG05C-Series
Vishay Semiconductors
Zener Diodes
UNIT V mA V V W °C
Features
- High reliability
- Voltage range 3.3 V to 100 V
- Fits onto 5 mm SMD footpads
- Wave and reflow solderable
- AEC-Q101 qualified available
- Base P/N-E3
- RoHS-pliant, mercial grade
- Base P/NHE3
- RoHS-pliant, AEC-Q101 qualified
- Material categorization: for definitions of pliance please see .vishay./doc?99912
APPLICATIONS
- Voltage stabilization...
