BZG05C39 Datasheet Zener Diodes

Manufacturer: Vishay

Download the BZG05C39 datasheet PDF. This datasheet also includes the BZG05C3V3 variant, as both parts are published together in a single manufacturer document.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (BZG05C3V3-Vishay.pdf) that lists specifications for multiple related part numbers.

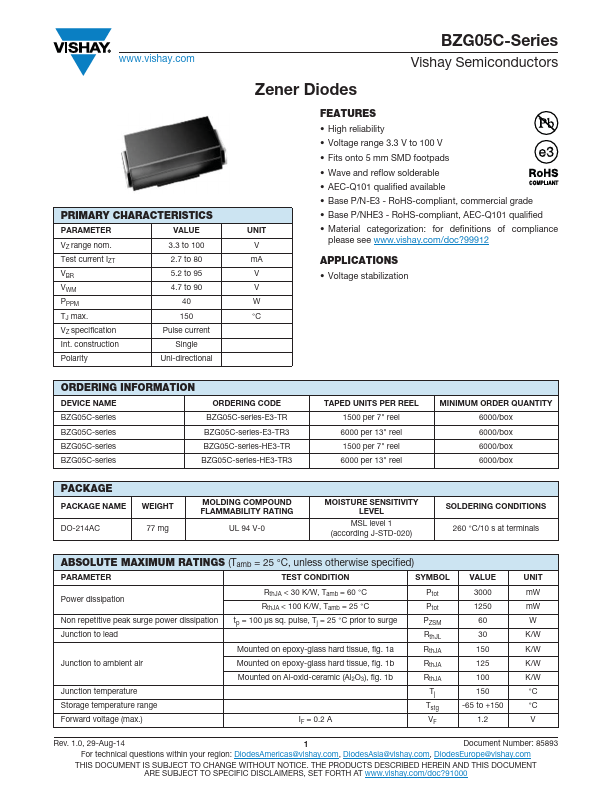

Overview

www.vishay.com PRIMARY CHARACTERISTICS PARAMETER VALUE VZ range nom.

Test current IZT VBR VWM PPPM TJ max.

VZ specification Int.

Key Features

  • High reliability.
  • Voltage range 3.3 V to 100 V.
  • Fits onto 5 mm SMD footpads.
  • Wave and reflow solderable.
  • AEC-Q101 qualified available.
  • Base P/N-E3 - RoHS-compliant, commercial grade.
  • Base P/NHE3 - RoHS-compliant, AEC-Q101 qualified.
  • Material categorization: for definitions of compliance please see www. vishay. com/doc?99912.
