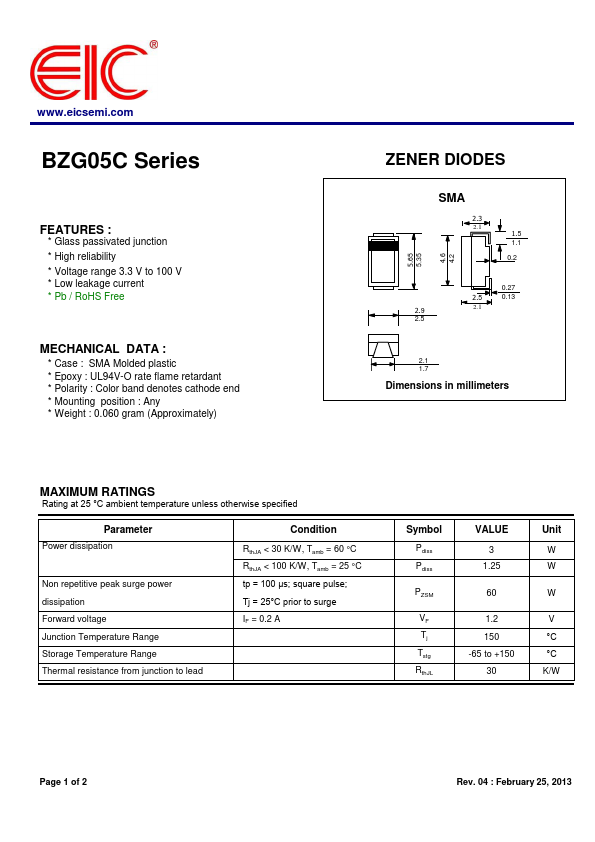

BZG05C3V6
FEATURES
:
- Glass passivated junction
- High reliability
- Voltage range 3.3 V to 100 V
- Low leakage current
- Pb / Ro HS Free
MECHANICAL DATA :
- Case : SMA Molded plastic
- Epoxy : UL94V-O rate flame retardant
- Polarity : Color band denotes cathode end
- Mounting position : Any
- Weight : 0.060 gram (Approximately)
ZENER DIODES
5.65 5.35 4. 6 4. 2
2.3 2.1
1.5 1.1
2.1 1.7
Dimensions in millimeters
MAXIMUM RATINGS
Rating at 25 °C ambient temperature unless otherwise specified
Parameter Power dissipation
Non repetitive peak surge power dissipation Forward voltage Junction Temperature Range Storage Temperature Range Thermal resistance from junction to lead
Condition Rth JA < 30 K/W, Tamb = 60 °C Rth JA < 100 K/W, Tamb = 25 °C tp = 100 µs; square pulse; Tj = 25°C prior to surge IF = 0.2 A
Symbol Pdiss Pdiss
PZSM
VF Tj Tstg Rth JL
VALUE 3
1.2 150 -65 to +150 30
Unit W...
