BZG05C56 - ZENER DIODES

This page provides the datasheet information for the BZG05C56, a member of the BZG05C3V3 ZENER DIODES family.

Features

:.
Glass passivated junction.
High reliability.
Voltage range 3.3 V to 100 V.
Low leakage current.
Pb / RoHS Free.

EIC

📥 Download Datasheet

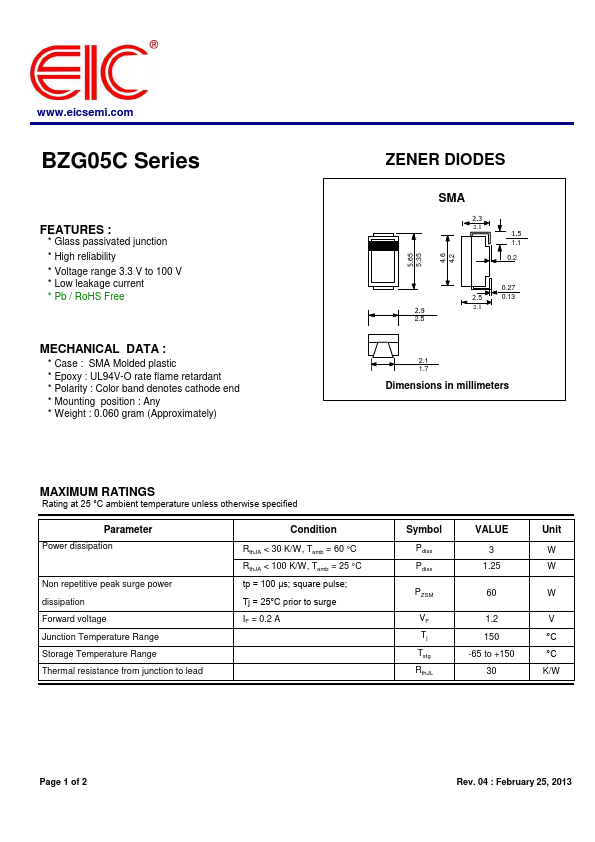

BZG05C56 ZENER DIODES by EIC - Datasheet Preview — Datasheet preview – BZG05C56

Datasheet Details

Part number	BZG05C56
Manufacturer	EIC
File Size	197.47 KB
Description	ZENER DIODES
Datasheet	BZG05C56 Datasheet

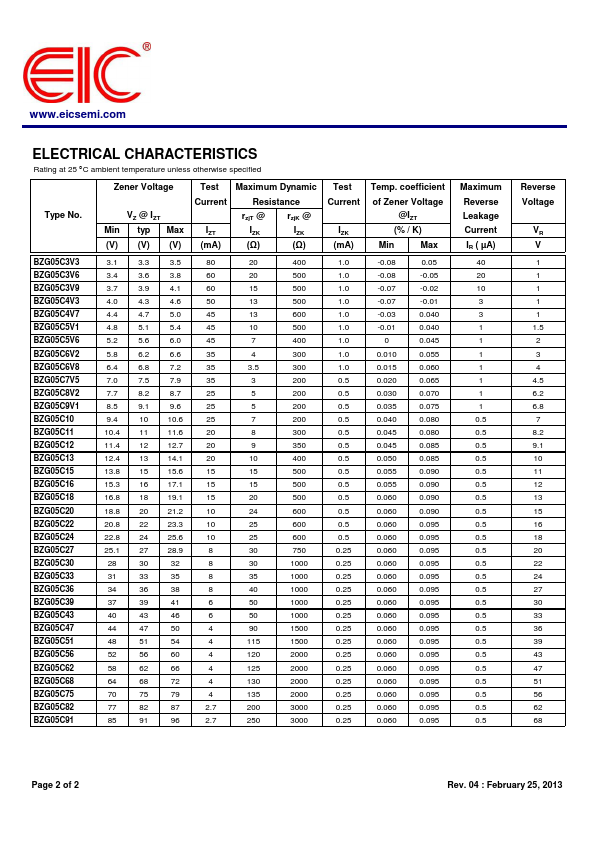

Additional preview pages of the BZG05C56 datasheet.

📁 Similar Datasheet

BZG05C56 - Zener Diodes (GME)
BZG05C56 - SURFACE MOUNT SILICON ZENER DIODES (SunMate)
BZG05C56 - Zener Diodes (Vishay)
BZG05C56-M - Zener Diode (Vishay)
BZG05C51 - Zener Diodes (GME)
BZG05C51 - SURFACE MOUNT SILICON ZENER DIODES (SunMate)
BZG05C51 - Zener Diodes (Vishay)
BZG05C51-M - Zener Diode (Vishay)
BZG05C5V1 - Zener Diodes (GME)
BZG05C5V1 - SURFACE MOUNT SILICON ZENER DIODES (SunMate)

Other Datasheets by EIC

BZG05C51 - ZENER DIODES
BZG05C5V1 - ZENER DIODES
BZG05C5V6 - ZENER DIODES
BZG05C10 - ZENER DIODES
BZG05C11 - ZENER DIODES
BZG05C12 - ZENER DIODES
BZG05C13 - ZENER DIODES
BZG05C15 - ZENER DIODES

Full PDF Text Transcription

Click to expand full text

www.eicsemi.com BZG05C Series FEATURES : * Glass passivated junction * High reliability * Voltage range 3.3 V to 100 V * Low leakage current * Pb / RoHS Free MECHANICAL DATA : * Case : SMA Molded plastic * Epoxy : UL94V-O rate flame retardant * Polarity : Color band denotes cathode end * Mounting position : Any * Weight : 0.060 gram (Approximately) ZENER DIODES 5.65 5.35 4. 6 4. 2 SMA 2.3 2.1 1.5 1.1 0.2 0.27 2.5 0.13 2.9 2.1 2.5 2.1 1.
