BZG05C56 - Zener Diodes

This page provides the datasheet information for the BZG05C56, a member of the BZG05C3V3 Zener Diodes family.

Features

  • High reliability.
  • Voltage range 3.3 V to 100 V.
  • Fits onto 5 mm SMD footpads.
  • Wave and reflow solderable.
  • AEC-Q101 qualified available.
  • Base P/N-E3 - RoHS-compliant, commercial grade.
  • Base P/NHE3 - RoHS-compliant, AEC-Q101 qualified.
  • Material categorization: for definitions of compliance please see www. vishay. com/doc?99912.

📥 Download Datasheet

Datasheet preview – BZG05C56

Datasheet Details

Part number BZG05C56
Manufacturer Vishay
File Size 95.24 KB
Description Zener Diodes
Datasheet download datasheet BZG05C56 Datasheet

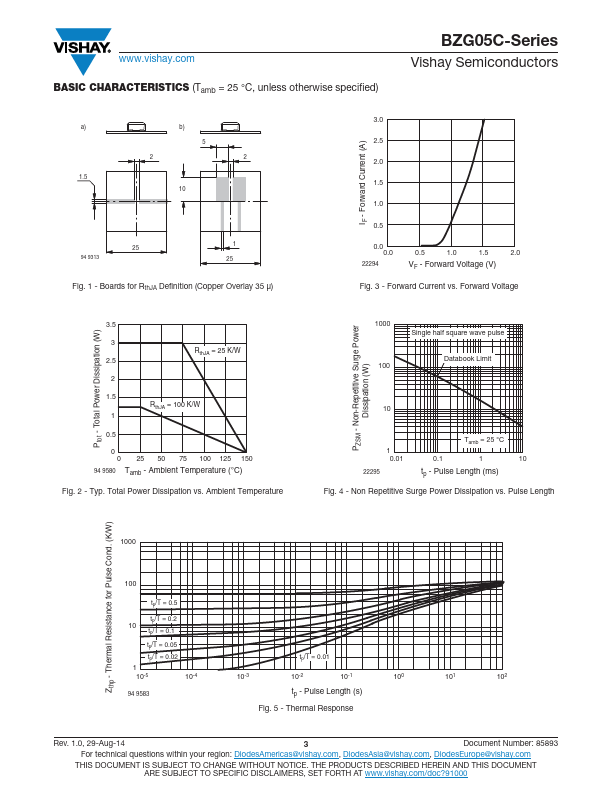

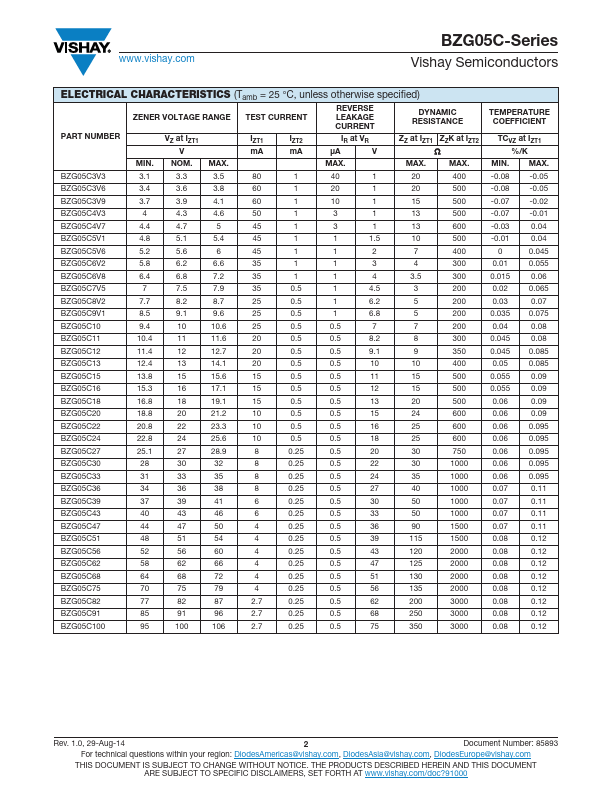

Additional preview pages of the BZG05C56 datasheet.

📁 Similar Datasheet

Other Datasheets by Vishay

Full PDF Text Transcription

Click to expand full text

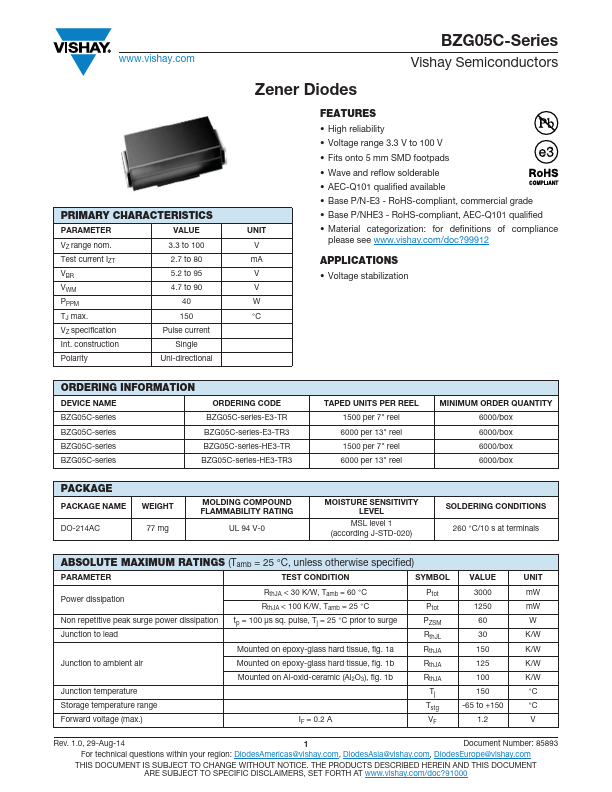

www.vishay.com PRIMARY CHARACTERISTICS PARAMETER VALUE VZ range nom. Test current IZT VBR VWM PPPM TJ max. VZ specification Int. construction 3.3 to 100 2.7 to 80 5.2 to 95 4.7 to 90 40 150 Pulse current Single Polarity Uni-directional BZG05C-Series Vishay Semiconductors Zener Diodes UNIT V mA V V W °C FEATURES • High reliability • Voltage range 3.3 V to 100 V • Fits onto 5 mm SMD footpads • Wave and reflow solderable • AEC-Q101 qualified available • Base P/N-E3 - RoHS-compliant, commercial grade • Base P/NHE3 - RoHS-compliant, AEC-Q101 qualified • Material categorization: for definitions of compliance please see www.vishay.
