BZG05C51 - Zener Diodes

This page provides the datasheet information for the BZG05C51, a member of the BZG05C3V3 Zener Diodes family.

Features

  • High reliability.
  • Voltage range 3.3 V to 100 V.
  • Fits onto 5 mm SMD footpads.
  • Wave and reflow solderable.
  • AEC-Q101 qualified available.
  • Base P/N-E3 - RoHS-compliant, commercial grade.
  • Base P/NHE3 - RoHS-compliant, AEC-Q101 qualified.
  • Material categorization: for definitions of compliance please see www. vishay. com/doc?99912.

📥 Download Datasheet

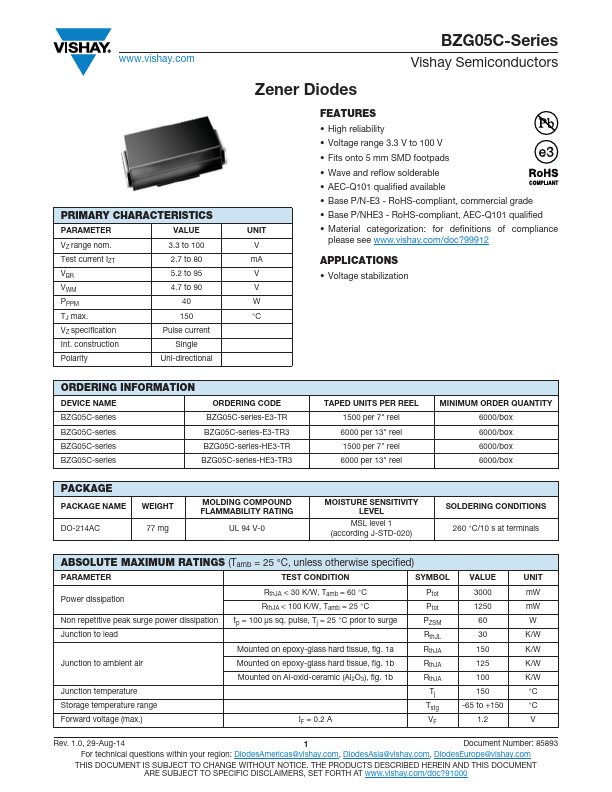

Datasheet preview – BZG05C51

Datasheet Details

Part number BZG05C51
Manufacturer Vishay
File Size 95.24 KB
Description Zener Diodes
Datasheet download datasheet BZG05C51 Datasheet

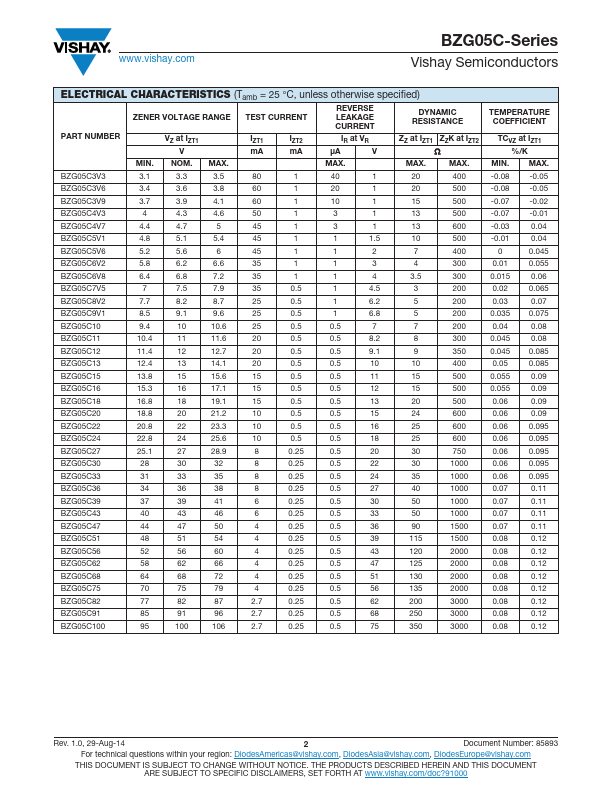

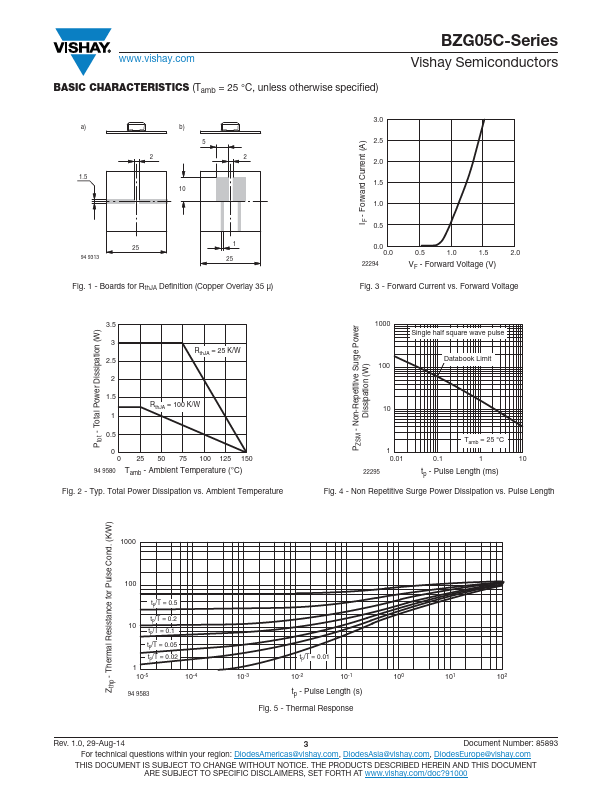

Additional preview pages of the BZG05C51 datasheet.

📁 Similar Datasheet

Other Datasheets by Vishay

Full PDF Text Transcription

Click to expand full text
www.vishay.com PRIMARY CHARACTERISTICS PARAMETER VALUE VZ range nom. Test current IZT VBR VWM PPPM TJ max. VZ specification Int. construction 3.3 to 100 2.7 to 80 5.2 to 95 4.7 to 90 40 150 Pulse current Single Polarity Uni-directional BZG05C-Series Vishay Semiconductors Zener Diodes UNIT V mA V V W °C FEATURES • High reliability • Voltage range 3.3 V to 100 V • Fits onto 5 mm SMD footpads • Wave and reflow solderable • AEC-Q101 qualified available • Base P/N-E3 - RoHS-compliant, commercial grade • Base P/NHE3 - RoHS-compliant, AEC-Q101 qualified • Material categorization: for definitions of compliance please see www.vishay.
