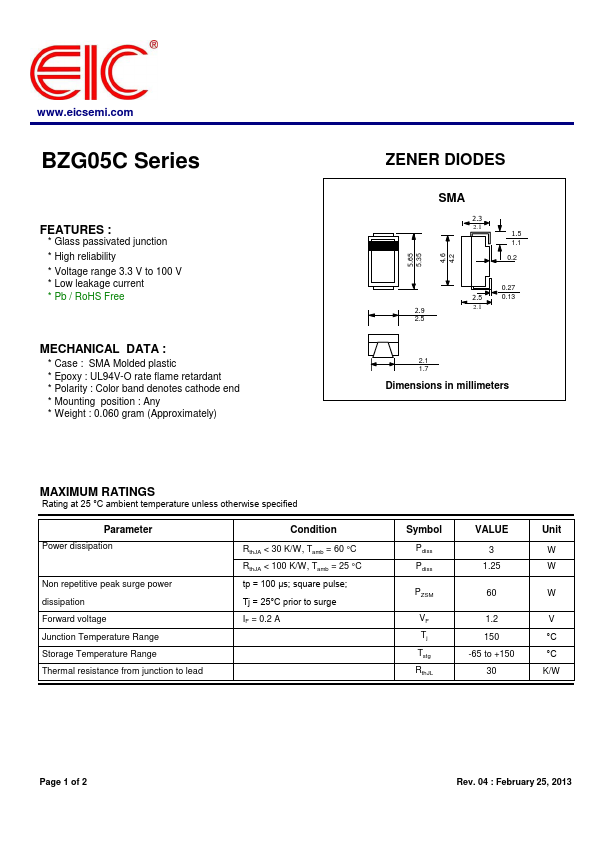

.eicsemi. BZG05C Series Features : - Glass passivated junction - High reliability - Voltage range 3.3 V to 100 V - Low leakage current - Pb / Ro HS Free MECHANICAL DATA : - Case : SMA Molded plastic - Epoxy : UL94V-O rate flame retardant - Polarity : Color band denotes cathode end - Mounting position : Any - Weight : 0.060 gram (Approximately) ZENER DIODES 5.65 5.35 4. 6 4. 2 2.3 2.1 1.5 1.1 2.1 1.7 Dimensions in millimeters MAXIMUM RATINGS Rating at 25 °C ambient temperature unless otherwise specified Parameter Power dissipation Non repetitive peak surge power dissipation Forward voltage Junction Temperature Range Storage Temperature Range Thermal resistance from junction to lead Condition Rth JA < 30 K/W, Tamb = 60 °C Rth JA < 100 K/W, Tamb = 25 °C tp = 100 µs; square pulse; Tj = 25°C prior to surge IF = 0.2 A Symbol Pdiss Pdiss PZSM VF Tj Tstg Rth JL VALUE...
