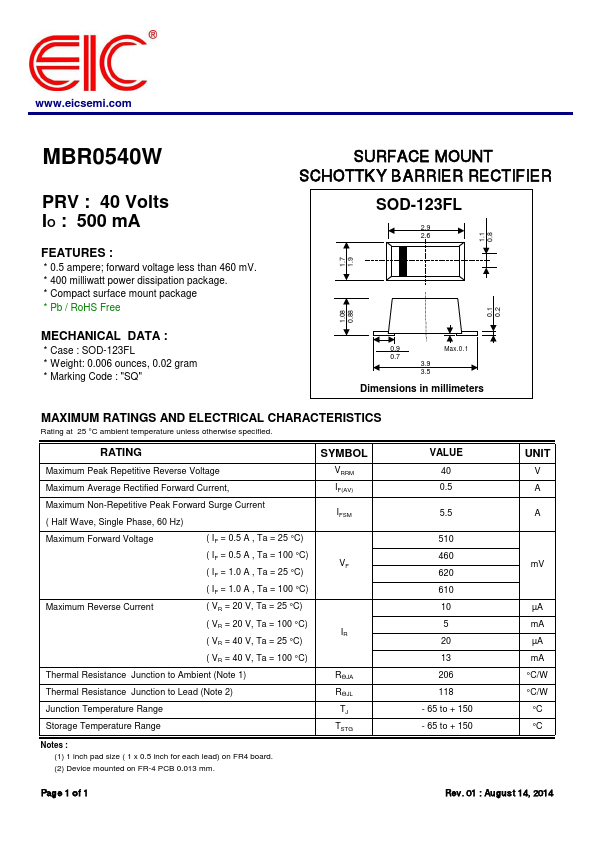

FEATURES
: * 0.5 ampere; forward voltage less than 460 mV. * 400 milliwatt power dissipation package. * Compact surface mount package * Pb / RoHS Free 1. 7 1. 9 SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER SOD-123FL 2.9 2.6 1. 1 0. 8 0. 2 0. 1 0.88 1.08 MECHANICAL DATA
: * Case : SOD-123FL * Weight: 0.006 ounces, 0.02 gram * Marking Code : "SQ" 0.9 Max.0.1 0.7 3.9 3.5 Dimensions in millimeters MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Rating at 25 °C ambient temperature unless otherwise specified. RATING SYMBOL Maximum Peak Repetitive Reverse Voltage Maximum Average Rectified Forward Current, Maximum Non-Repetitive Peak Forward Surge Current ( Half Wave, Single Phase, 60 Hz) VRRM IF(AV) IFSM Maximum Forward Voltage ( IF = 0.5 A , Ta = 25 °C) ( IF = 0.5 A , Ta = 100 °C) ( IF = 1.0 A , Ta = 25 °C) ( IF = 1.0 A , Ta = 100 °C) Maximum Reverse Current ( VR = 20 V, Ta = 25 °C) ( VR = 20 V, Ta = 100 °C) ( VR = 40 V, Ta = 25 °C) ( VR = 40 V, Ta = 100 °C) Thermal Resistance Junction to Ambient...
EIC Semiconductor
