MBR0540W
MBR0540W is Schottky Barrier Rectifiers manufactured by Slkor Micro Semicon.
- Part of the MBR0520W comparator family.
- Part of the MBR0520W comparator family.
Features
- Low Forward Voltage Drop
- Guard Ring Construction for Transient Protection
- High Conductance
- Also Available in Lead Free Version
MBR0520W-MBR0540W
1.Cathode 2.Anode

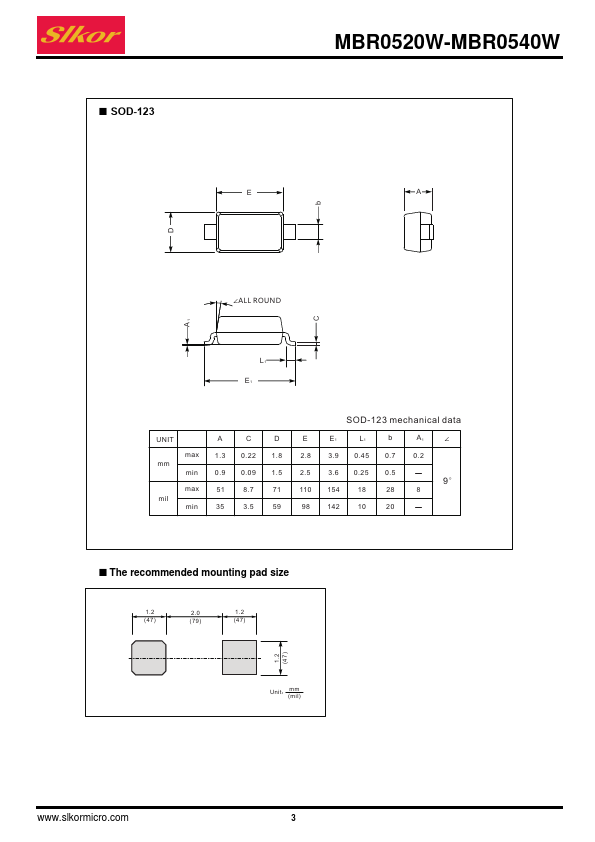

- Simplified outline(SOD-123)

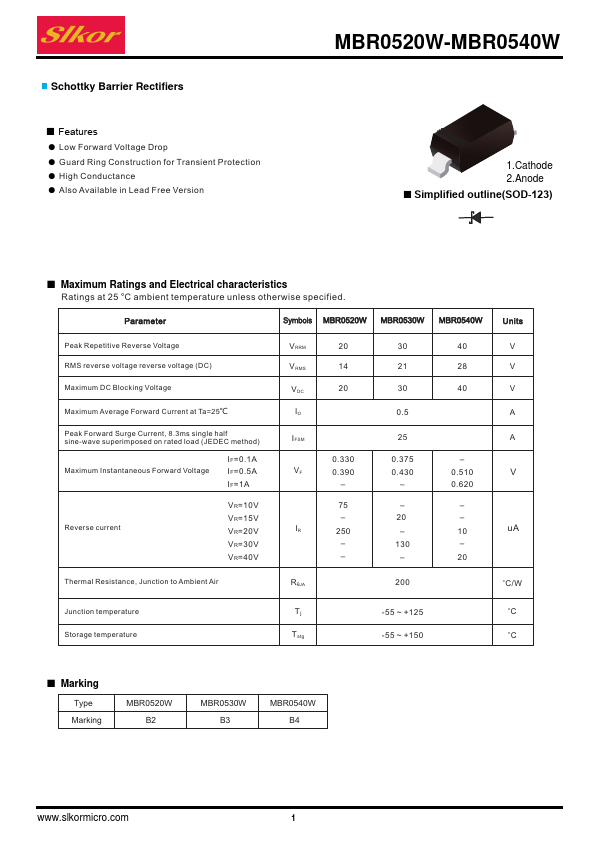

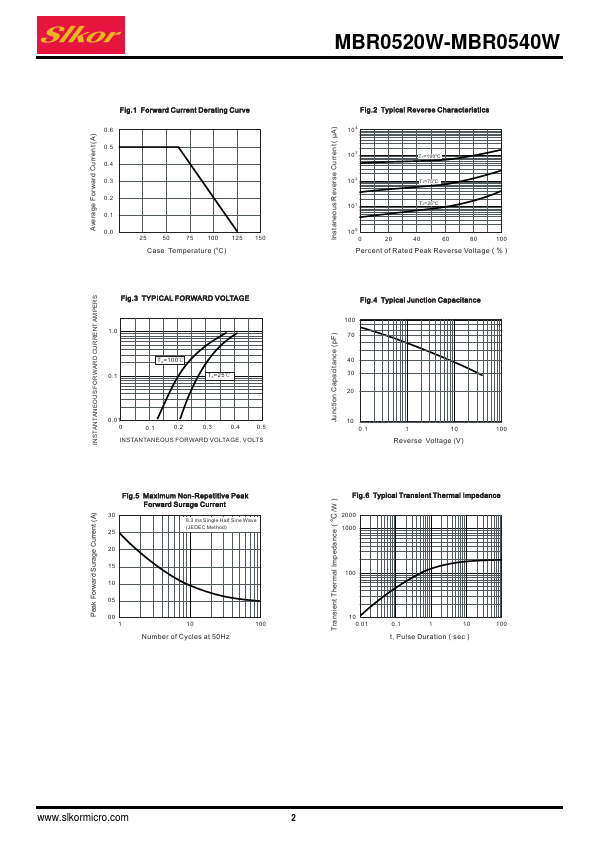

- Maximum Ratings and Electrical characteristics
Ratings at 25 °C ambient temperature unless otherwise specified.
Parameter
Symbols MBR0520W MBR0530W MBR0540W
Units
Peak Repetitive Reverse Voltage RMS reverse voltage reverse voltage (DC)
Maximum DC Blocking Voltage
Maximum Average Forward Current at Ta=25℃
Peak Forward Surge Current, 8.3ms single half sine-wave superimposed on rated load (JEDEC method)
Maximum Instantaneous Forward Voltage
IF=0.1A IF=0.5A IF=1A
Reverse current
VR=10V VR=15V VR=20V VR=30V VR=40V
VRRM VRMS VDC
IO IFSM VF
20 14 20
0.330 0.390
- 75
- 250
- -
30 21
0.375 0.430
- - 20
- 130
-...
