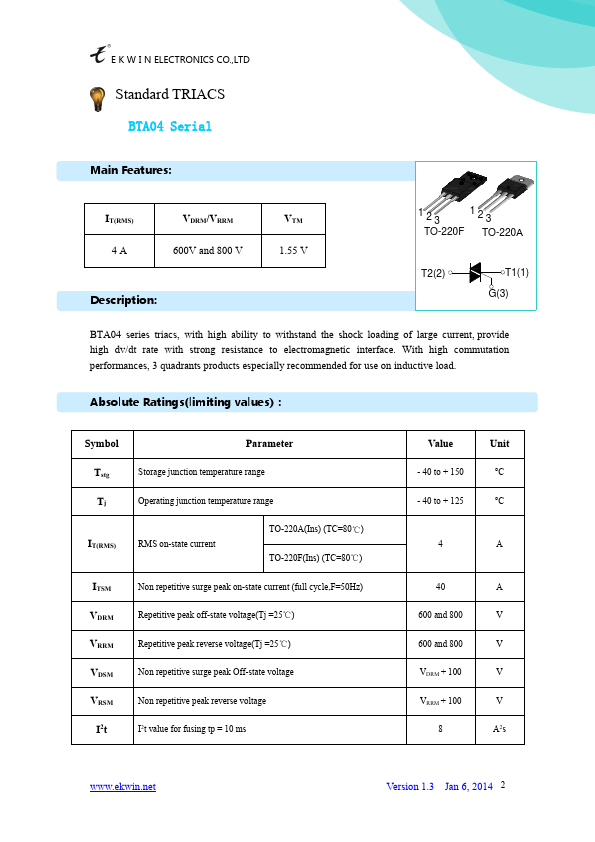

BTA04
Features
:
IT(RMS) 4A
VDRM/VRRM 600V and 800 V
VTM 1.55 V
Description
:
TO-220F TO-220A
T2(2)
T1(1) G(3)
BTA04 series triacs, with high ability to withstand the shock loading of large current, provide high dv/dt rate with strong resistance to electromagnetic interface. With high mutation performances, 3 quadrants products especially remended for use on inductive load.
Absolute Ratings(limiting values)：
Symbol
Parameter
Tstg
Storage junction temperature range
Tj
Operating junction temperature range
IT(RMS)
RMS on-state current
TO-220A(Ins) (TC=80℃) TO-220F(Ins) (TC=80℃)
ITSM
Non repetitive surge peak on-state current (full cycle,F=50Hz)
VDRM
Repetitive peak off-state voltage(Tj =25℃)
VRRM
Repetitive peak reverse voltage(Tj =25℃)
VDSM
Non repetitive surge peak Off-state voltage
VRSM I2t
Non repetitive peak reverse voltage I2t value for fusing tp = 10 ms
Value
- 40 to + 150
- 40 to + 125
Unit
°C °C
600 and...
