The GD25Q128C(128M-bit) Serial flash supports the standard Serial Peripheral Interface (SPI), and supports the Dual/Quad SPI: Serial Clock, Chip Select, Serial Data I/O0 (SI), I/O1 (SO), I/O2 (WP#) and I/O3 (HOLD#/ RESET#). The Dual I/O data is transferred with speed of 208Mbits/s and the Quad I/O & Quad Output data is transferred with speed of 320Mbits/s. DEVICE OPERATION SPI Mode Standard SPI The GD25Q128C feature a serial peripheral interface on 4 signals bus: Serial Clock (SCLK), Chip Select (CS#), Serial Data Input (SI) and Serial Data Output (SO).
| Part No. |
GD25Q128C |
| Datasheet |

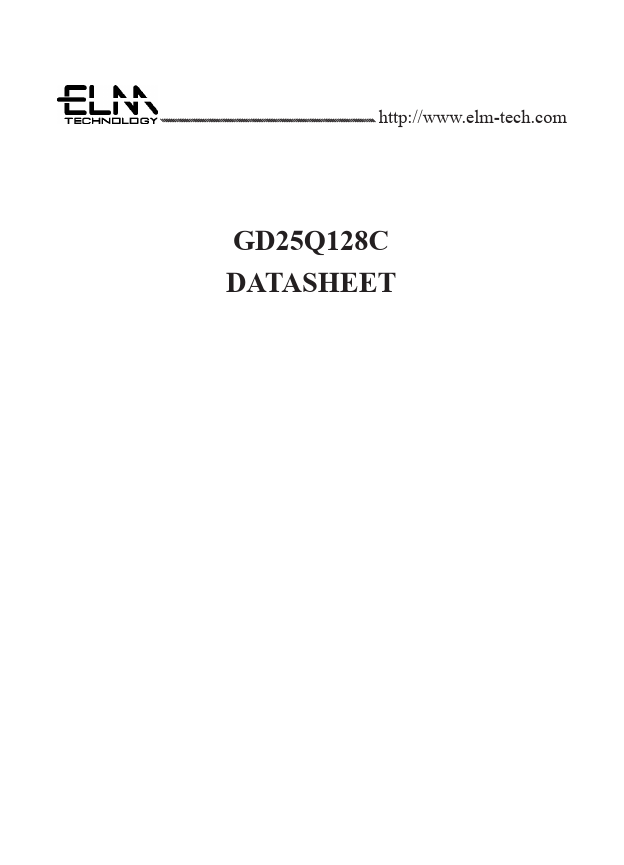

GD25Q128C
Download
|
| Manufacturer |
 ELM |
| Description |
3.3V Uniform Sector Dual and Quad Serial Flash |
| Buy |
Stock & Price
|
FEATURES
♦ 128M-bit Serial Flash ♦ Program/Erase Speed - 16384K-byte - 256 bytes per programmable page ♦ Standard, Dual, Quad SPI - Standard SPI: SCLK, CS#, SI, SO, WP#, HOLD#/RESET# - Dual SPI: SCLK, CS#, IO0, IO1, WP#, HOLD#/RESET# - Quad SPI: SCLK, CS#, IO0, IO1, IO2, IO3 - QPI: SCLK, CS#, IO0, IO1, IO2, IO3 - Page Program time: 0.6ms typical - Sector Erase time: 50ms typical - Block Erase time: 0.2/0.3s typical - Chip Erase time: 60s typical ♦ Flexible Architecture - Sector of 4K-byte - Block of 32/64K-byte ♦ High Speed Clock Frequency ♦ Low Power Consumption - 104MHz for Standard and Dual SPI fast read with 30PF load - 20mA maximum active current - 80MHz for Quad SPI and QPI fast read with 30PF load - 5μA maximum power down current - Dual I/O Data transfer up to 208Mbits/s - Quad I/O Data transfer up to 320Mbits/s - QPI Mode Data transfer up to 320Mbits/s - Continuous Read With 8/16/32/64-byte Wrap ♦ Advanced Security FEATURES
(1) - 3×512-Byte Security Registers With OTP Locks - Di...
