EM6151 - Low Power Windowed Watchdog

Product Overview

EM Microelectronic

Part number	EM6151
Manufacturer	EM Microelectronic
File Size	460.49 KB
Description	Low Power Windowed Watchdog
Datasheet	EM6151 Datasheet

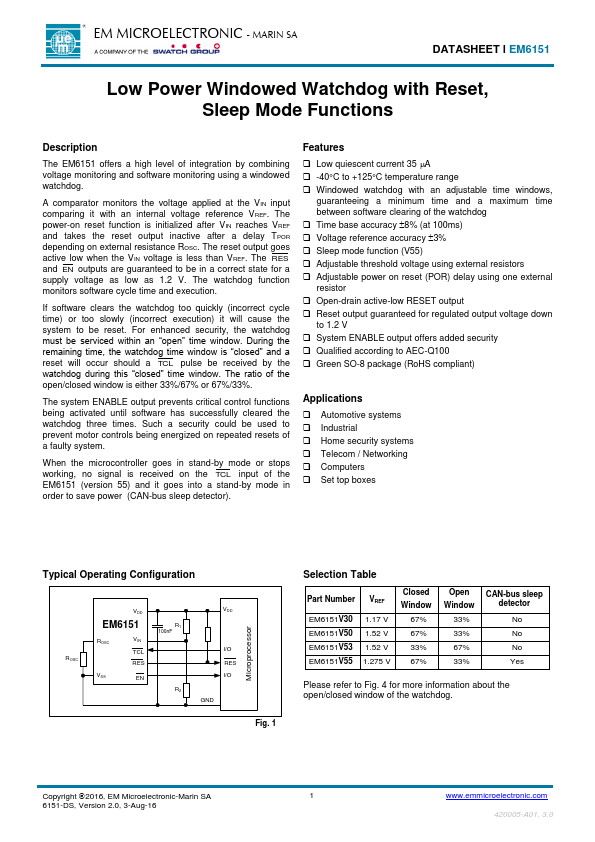

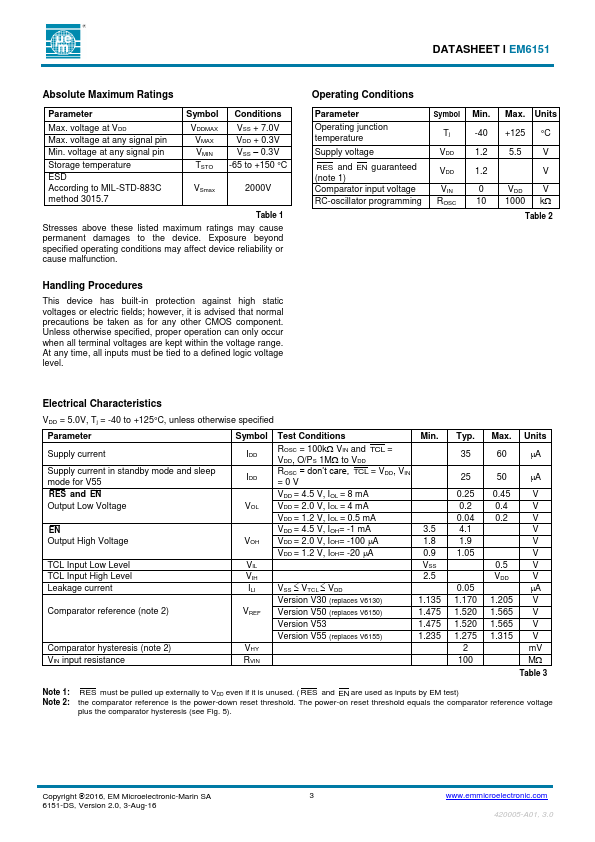

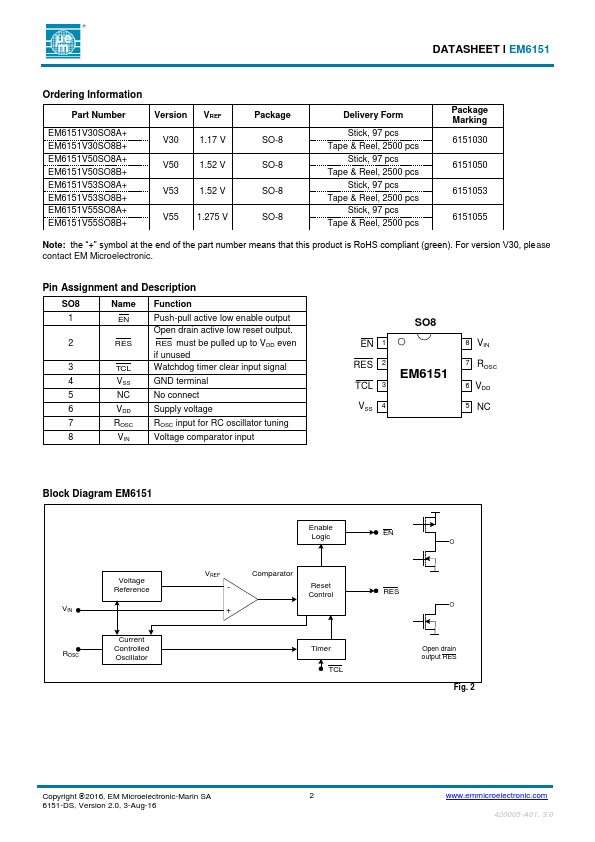

Additional preview pages of the EM6151 datasheet.

The EM6151 offers a high level of integration by combining voltage monitoring and software monitoring using a windowed watchdog.

A comparator monitors the voltage applied at the VIN input comparing it with an internal voltage reference VREF.

Low quiescent current 35 μA -40°C to +125°C temperature range Windowed watchdog with an adjustable time windows, guaranteeing a minimum time and a maximum time between software clearing of the watchdog Time base accuracy ±8% (at 100ms) Voltage reference accuracy ±3% Sleep mode function (V55) Adjustable threshold voltage using external resistors Adjustable power on reset (POR) delay using one external resistor Open-drain active-low RESET output Reset output guaranteed for regu.
