EM6819F2-B000 - Sub-1V (0.6V) 8bit Flash MCU DC-DC Converter

This page provides the datasheet information for the EM6819F2-B000, a member of the EM6819Fx-A00x Sub-1V (0.6V) 8bit Flash MCU DC-DC Converter family.

Datasheet Summary

Description

The EM6819 is designed to be battery operated for extended lifetime applications.

Its large voltage range from 3.6V down to 0.9V makes it a perfect match for today’s demanding applications.

Features

  • ‰ Wide supply voltage range 0.9 V.
  • 3.6 V ‰ Runs down to 0.6V with enabled DCDC and still 10mA load current ‰ True low current: typ 140u.

📥 Download Datasheet

Datasheet preview – EM6819F2-B000

Datasheet Details

Part number EM6819F2-B000
Manufacturer EM Microelectronic
File Size 1.81 MB
Description Sub-1V (0.6V) 8bit Flash MCU DC-DC Converter
Datasheet download datasheet EM6819F2-B000 Datasheet

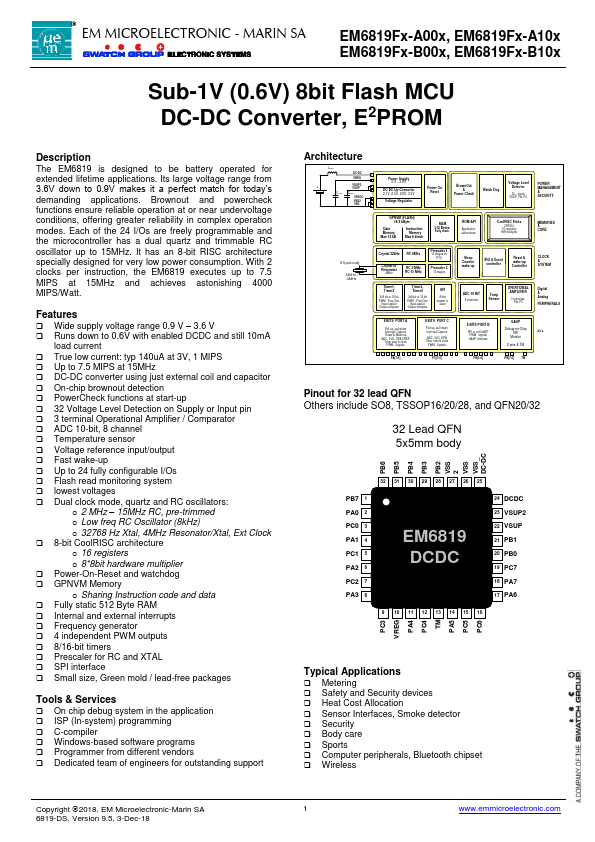

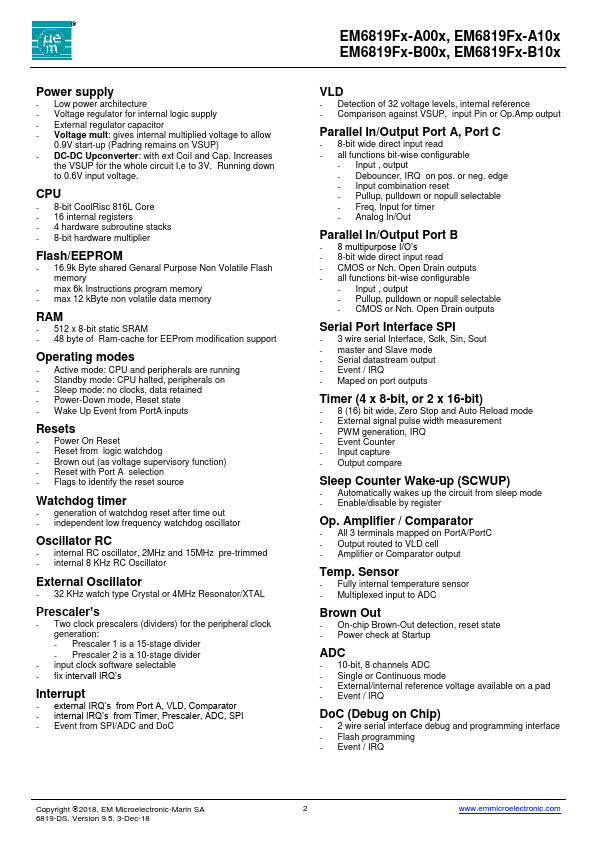

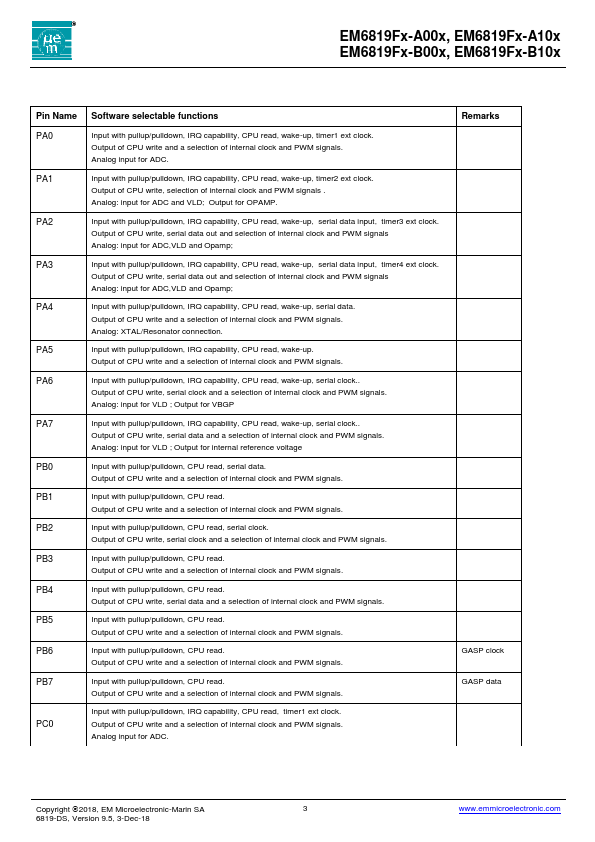

Additional preview pages of the EM6819F2-B000 datasheet.

📁 Similar Datasheet

  • EM681FV16AU - 512K x16 bit Low Power and Low Voltage Full CMOS Static RAM (Emerging Memory & Logic Solutions)
  • EM680FU16A - 512Kx16 SRAM (Emerging Memory & Logic Solutions)
  • EM680FV8AU - 1Mx8 SRAM (Emerging Memory & Logic Solutions)
  • EM6821 - Ultra Low Power uController (MARIN SA)
  • EM68916CWQA - 8M x 16 bit DDRII Synchronous DRAM (Etron Technology)
  • EM68916DVAA - 8M x 16 Mobile DDR Synchronous DRAM (Etron Technology)
  • EM68932DVKA - 4M x 32 Mobile DDR Synchronous DRAM (Etron Technology)
  • EM68932DVKB - 4M x 32 Mobile DDR Synchronous DRAM (Etron Technology)
  • EM68A16CBQC - 16M x 16 bit DDRII Synchronous DRAM (Etron Technology)
  • EM68B08CWAH - 64M x 8 bit DDRII Synchronous DRAM (Etron Technology)
Other Datasheets by EM Microelectronic

Full PDF Text Transcription

Click to expand full text
R EM MICROELECTRONIC - MARIN SA EM6819Fx-A00x, EM6819Fx-A10x EM6819Fx-B00x, EMww6w.8Da1taS9heFetx4U-.cBom10x Sub-1V (0.6V) 8bit Flash MCU DC-DC Converter, E2PROM Description The EM6819 is designed to be battery operated for extended lifetime applications. Its large voltage range from 3.6V down to 0.9V makes it a perfect match for today’s demanding applications. Brownout and powercheck functions ensure reliable operation at or near undervoltage conditions, offering greater reliability in complex operation modes. Each of the 24 I/Os are freely programmable and the microcontroller has a dual quartz and trimmable RC oscillator up to 15MHz. It has an 8-bit RISC architecture specially designed for very low power consumption. With 2 clocks per instruction, the EM6819 executes up to 7.
