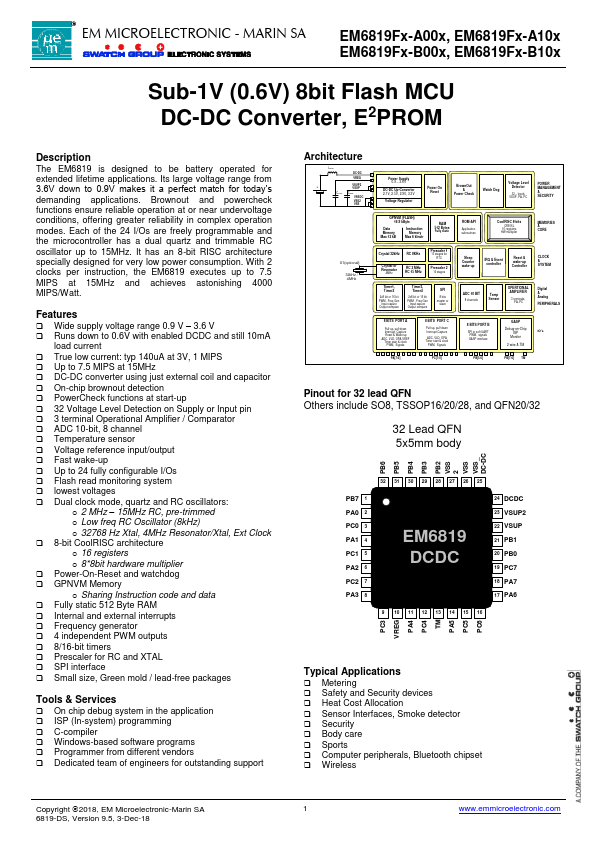

EM6819F2-B300 - Sub-1V (0.6V) 8bit Flash MCU DC-DC Converter

The EM6819 is designed to be battery operated for extended lifetime applications.

Its large voltage range from 3.6V down to 0.9V makes it a perfect match for today’s demanding applications.

•  Wide supply voltage range 0.9 V.
• 3.6 V  Runs down to 0.6V with enabled DCDC and still 10mA load current  True low current: typ 140uA at 3V, 1 MIPS  Up to 7.5 MIPS at 15MHz  DC-DC converter using just external coil and capacitor  On-chip brownout detection  PowerCheck functions at start-up  32 Voltage Level Detection on Supply or Input pin  3 terminal Operational Amplifier / Comparator  ADC 10-bit, 8 channel  Temperature sensor  Voltage reference input/output  Fast wake-up.
