EM6819F6-A000 Datasheet Sub-1v (0.6v) 8bit Flash Mcu DC-dc Converter

Manufacturer: EM Microelectronic (Swatch Group)

Overview: EM MICROELECTRONIC - MARIN SA EM6819Fx-A00x, EM6819Fx-A10x EM6819Fx-B00x, EM6819Fx-B10x Sub-1V (0.

This datasheet includes multiple variants, all published together in a single manufacturer document.

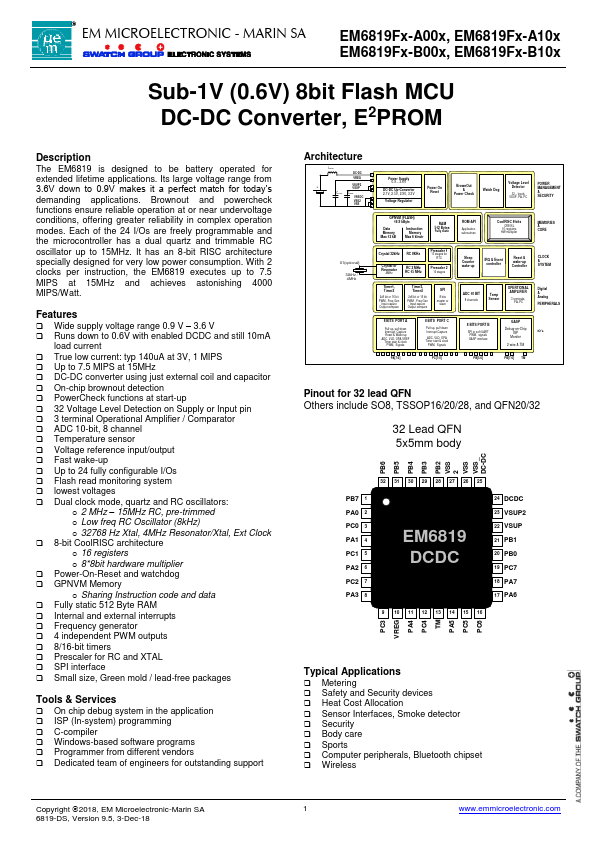

General Description

The EM6819 is designed to be battery operated for extended lifetime applications.

Its large voltage range from 3.6V down to 0.9V makes it a perfect match for today’s demanding applications.

Brownout and powercheck functions ensure reliable operation at or near undervoltage conditions, offering greater reliability in plex operation modes.

Key Features

  •  Wide supply voltage range 0.9 V.
  • 3.6 V  Runs down to 0.6V with enabled DCDC and still 10mA load current  True low current: typ 140uA at 3V, 1 MIPS  Up to 7.5 MIPS at 15MHz  DC-DC converter using just external coil and capacitor  On-chip brownout detection  PowerCheck functions at start-up  32 Voltage Level Detection on Supply or Input pin  3 terminal Operational Amplifier / Comparator  ADC 10-bit, 8 channel  Temperature sensor  Voltage reference input/output  Fast wake-up.
