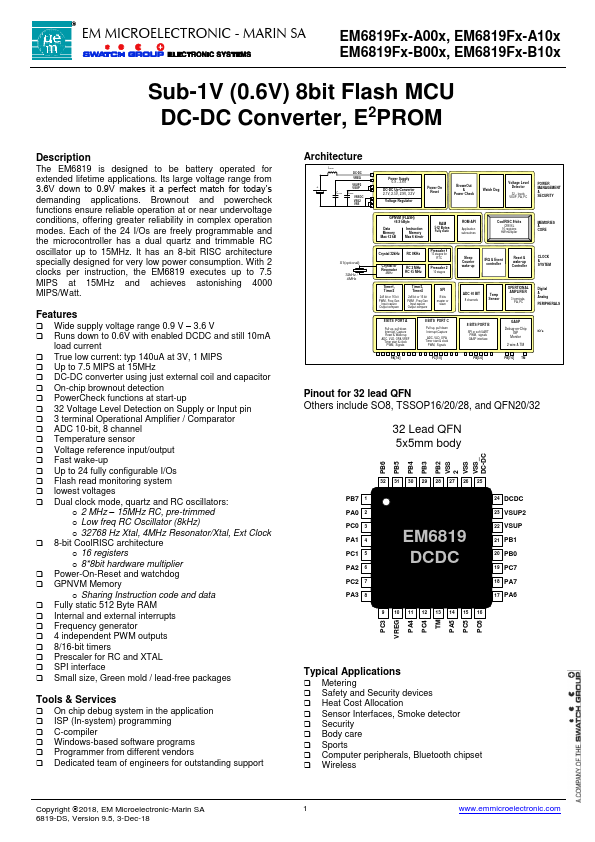

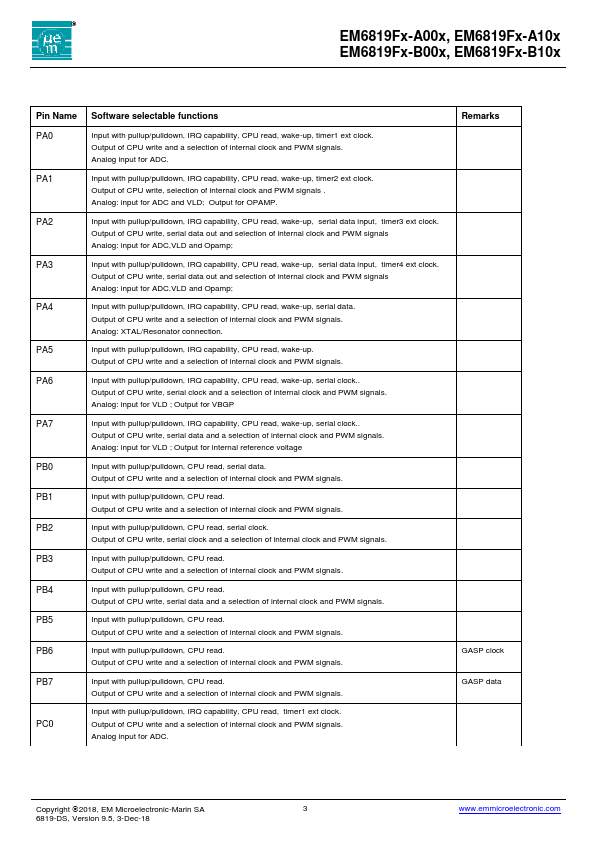

Description The EM6819 is designed to be battery operated for extended lifetime applications. Its large voltage range from 3.6V down to 0.9V makes it a perfect match for today’s demanding applications. Brownout and powercheck functions ensure reliable operation at or near undervoltage conditions, offering greater reliability in plex operation modes. Each of the 24 I/Os are freely programmable and the microcontroller has a dual quartz and trimmable RC oscillator up to 15MHz. It has an 8-bit RISC architecture specially designed for very low power consumption. With 2 clocks per instruction, the EM6819 executes up to 7.5 MIPS at 15MHz and achieves astonishing 4000 MIPS/Watt. Features  Wide supply voltage range 0.9 V - 3.6 V  Runs down to 0.6V with enabled DCDC and still 10m A load current  True low current: typ 140u A at 3V, 1 MIPS  Up to 7.5 MIPS at 15MHz  DC-DC converter using just external coil and capacitor  On-chip brownout detection  Power Check functions at start-up  32 Voltage Level Detection on Supply or Input pin  3 terminal Operational Amplifier / parator  ADC 10-bit, 8 channel  Temperature sensor  Voltage reference input/output  Fast wake-up  Up to 24 fully configurable I/Os  Flash read monitoring system  lowest voltages  Dual clock mode, quartz and RC oscillators: o 2 MHz - 15MHz RC, pre-trimmed o Low freq RC Oscillator (8k Hz) o 32768 Hz Xtal, 4MHz Resonator/Xtal, Ext Clock  8-bit Cool RISC architecture o 16 registers o 8- 8bit hardware multiplier  Power-On-Reset and watchdog  GPNVM Memory o Sharing Instruction code and data  Fully static 512 Byte RAM  Internal and external interrupts  Frequency generator  4 independent PWM outputs  8/16-bit timers  Prescaler for RC and XTAL  SPI interface  Small size, Green mold / lead-free packages Tools & Services  On chip debug system in the application  ISP (In-system) programming  C-piler  Windows-based software programs  Programmer from different vendors  Dedicated team of engineers for...
