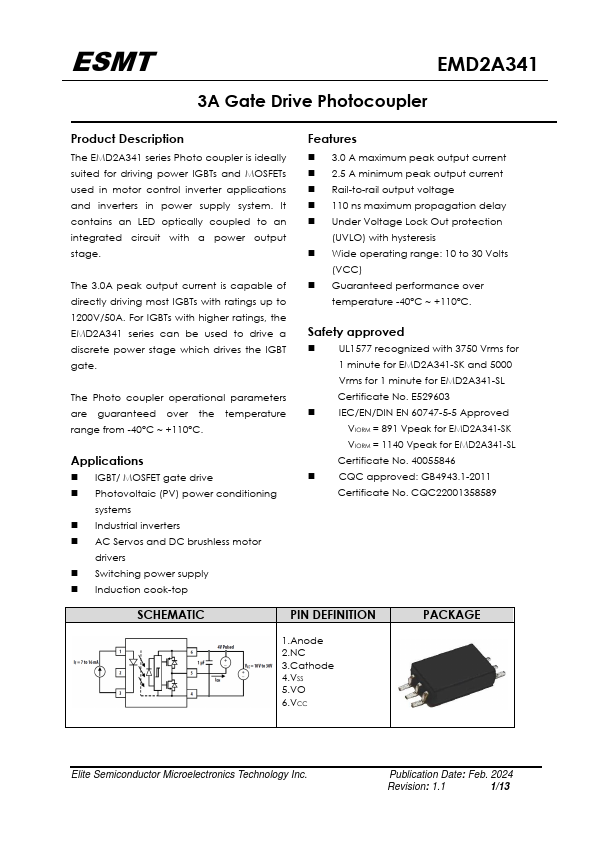

EMD2A341
Description
The EMD2A341 series Photo coupler is ideally suited for driving power IGBTs and MOSFETs used in motor control inverter applications and inverters in power supply system. It contains an LED optically coupled to an integrated circuit with a power output stage.
The 3.0A peak output current is capable of directly driving most IGBTs with ratings up to 1200V/50A. For IGBTs with higher ratings, the EMD2A341 series can be used to drive a discrete power stage which drives the IGBT gate.
The Photo coupler operational parameters are guaranteed over the temperature range from -40°C ~ +110°C.
Applications
- IGBT/ MOSFET gate drive
- Photovoltaic (PV) power conditioning systems
- Industrial inverters
- AC Servos and DC brushless motor drivers
- Switching power supply
- Induction cook-top
Features
- 3.0 A maximum peak output current
- 2.5 A minimum peak output current
- Rail-to-rail output voltage
- 110 ns maximum propagation delay
- Under Voltage Lock Out protection
(UVLO) with...
