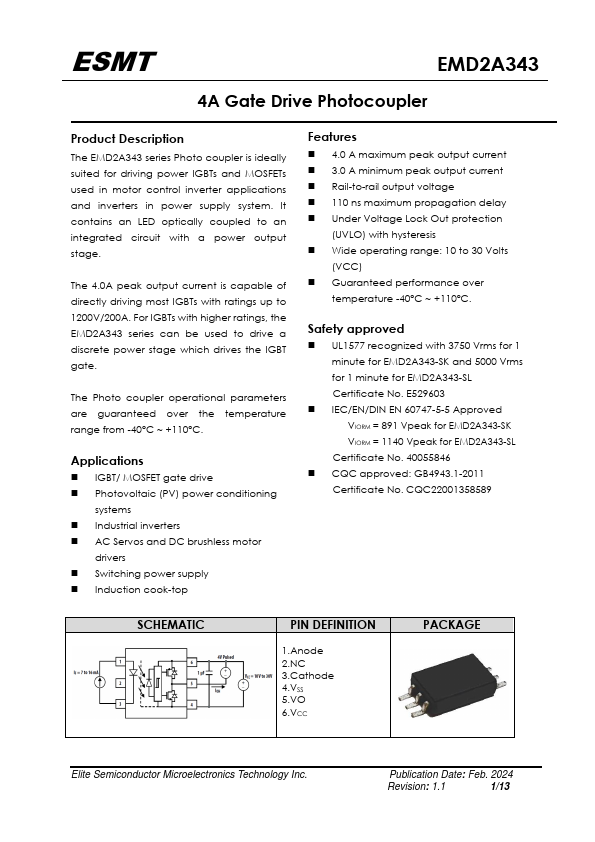

EMD2A343 Overview
The EMD2A343 series Photo coupler is ideally suited for driving power IGBTs and MOSFETs used in motor control inverter applications and inverters in power supply system. It contains an LED optically coupled to an integrated circuit with a power output stage. The 4.0A peak output current is capable of directly driving most IGBTs with ratings up to 1200V/200A.
EMD2A343 Key Features
- 4.0 A maximum peak output current
- 3.0 A minimum peak output current
- Rail-to-rail output voltage
- 110 ns maximum propagation delay
- Under Voltage Lock Out protection
- Wide operating range: 10 to 30 Volts
- Guaranteed performance over
- CQC approved: GB4943.1-2011
