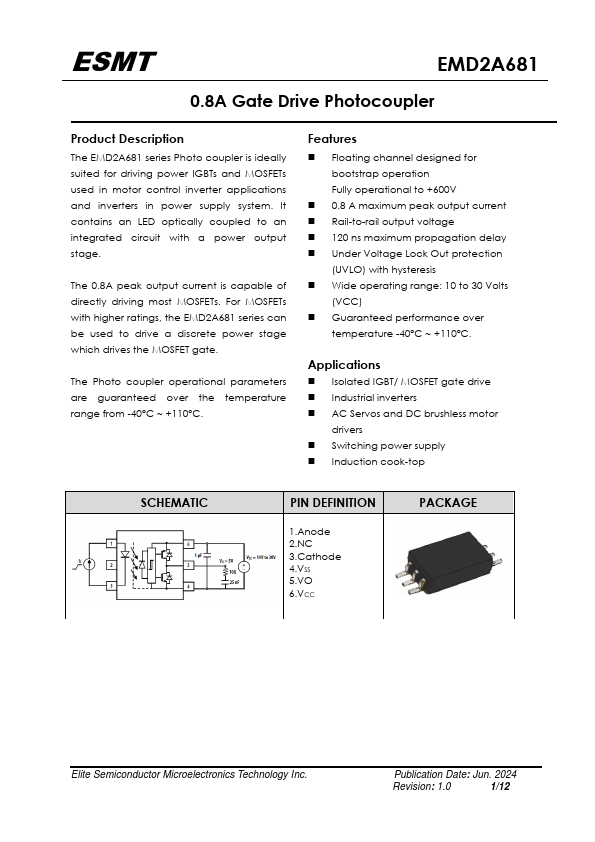

EMD2A681
Description
The EMD2A681 series Photo coupler is ideally suited for driving power IGBTs and MOSFETs used in motor control inverter applications and inverters in power supply system. It contains an LED optically coupled to an integrated circuit with a power output stage.
The 0.8A peak output current is capable of directly driving most MOSFETs. For MOSFETs with higher ratings, the EMD2A681 series can be used to drive a discrete power stage which drives the MOSFET gate.
The Photo coupler operational parameters are guaranteed over the temperature range from -40°C ~ +110°C.
Features
- Floating channel designed for bootstrap operation Fully operational to +600V
- 0.8 A maximum peak output current
- Rail-to-rail output voltage
- 120 ns maximum propagation delay
- Under Voltage Lock Out protection
(UVLO) with hysteresis
- Wide operating range: 10 to 30 Volts
(VCC)
- Guaranteed performance over temperature -40°C ~ +110°C.

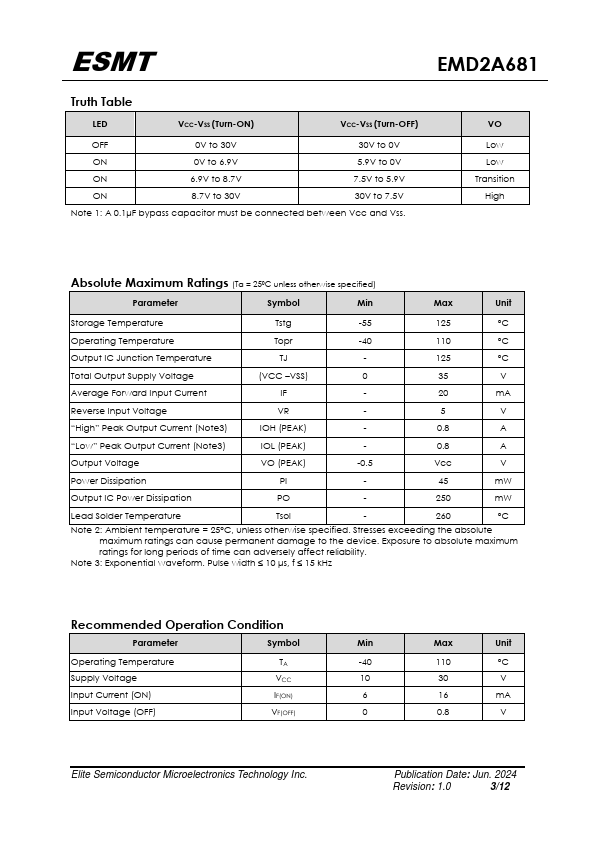

Applications
- Isolated IGBT/ MOSFET gate drive
- Industrial inverters
-...
