EMH7070 Datasheet | Elite Semiconductor Microelectronics Technology

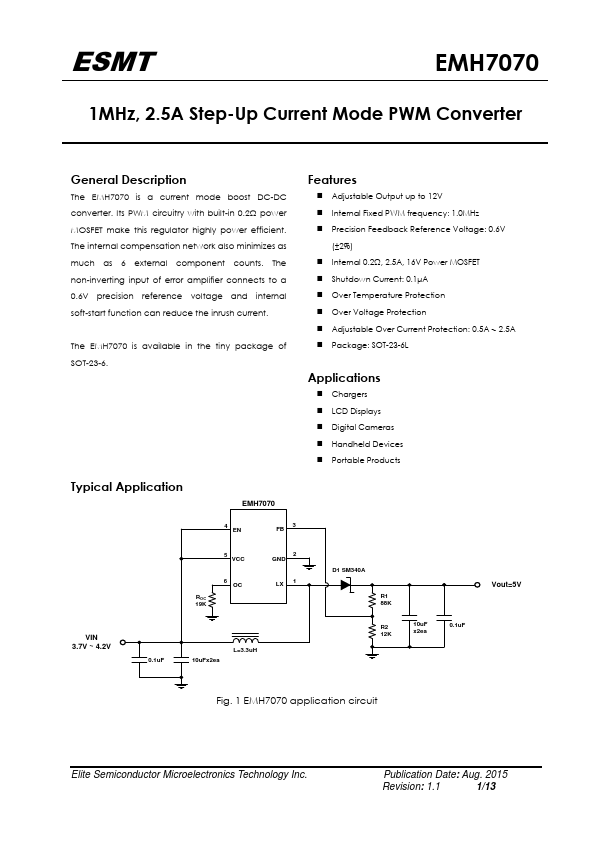

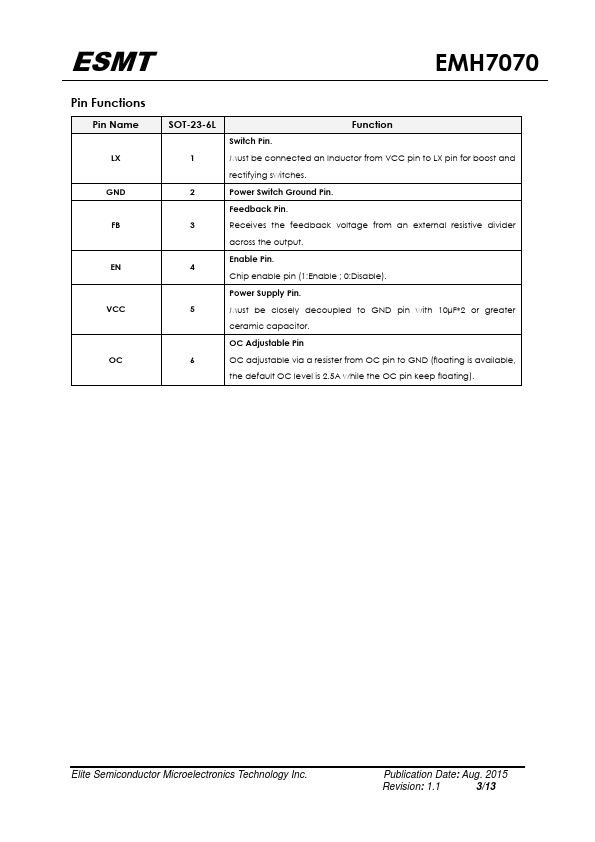

Description The EMH7070 is a current mode boost DC-DC converter. Its PWM circuitry with built-in 0.2Ω power MOSFET make this regulator highly power efficient. The internal pensation network also minimizes as much as 6 external ponent counts. The non-inverting input of error amplifier connects to a 0.6V precision reference voltage and internal soft-start function can reduce the inrush current. The EMH7070 is available in the tiny package of SOT-23-6. Features - Adjustable Output up to 12V - Internal Fixed PWM frequency: 1.0MHz - Precision Feedback Reference Voltage: 0.6V (±2%) - Internal 0.2Ω, 2.5A, 16V Power MOSFET - Shutdown Current: 0.1μA - Over Temperature Protection - Over Voltage Protection - Adjustable Over Current Protection: 0.5A ~ 2.5A - Package: SOT-23-6L Applications - Chargers - LCD Displays - Digital Cameras - Handheld Devices - Portable Products Typical Application 4 EN FB 3 VIN 3.7V ~ 4.2V 5 VCC ROC 19K 6 OC 2 GND LX 1 0.1u F 10u Fx2ea L=3.3u H D1 SM340A R1 88K R2 10u F 0.1u F 12K x2ea Vout=5V Fig. 1 EMH7070 application...
