EMH7090 - 6A HV Asynchronous 500kHz Boost Converter

Description

The EMH7090 is a monolithic asynchronous boost DC-DC converter.

Its PWM circuitry with built-in 6A 60mΩ power MOSFET make this regulator highly power efficient.

The EMH7090 has wide input voltage range from 2.9V~12V to support applications with single-cell or two-cell lithium batteries.

Features

  • Input Voltage Range 2.9V~12V.
  • Adjustable Output Voltage Range 5V~14V.
  • Internal Fixed PWM frequency: 500kHz.
  • Precision Feedback Reference Voltage: 0.6V.
  • Internal 60mΩ, 6A, 16V Power MOSFET.
  • Internal Soft-start.
  • Over Temperature Protection.
  • Over Voltage Protection.
  • Cycle by Cycle Over Current Protection.
  • Package: E-SOP-8L The EMH7090 uses current mode PWM control topology to regulate the output voltage. Tha.

📥 Download Datasheet

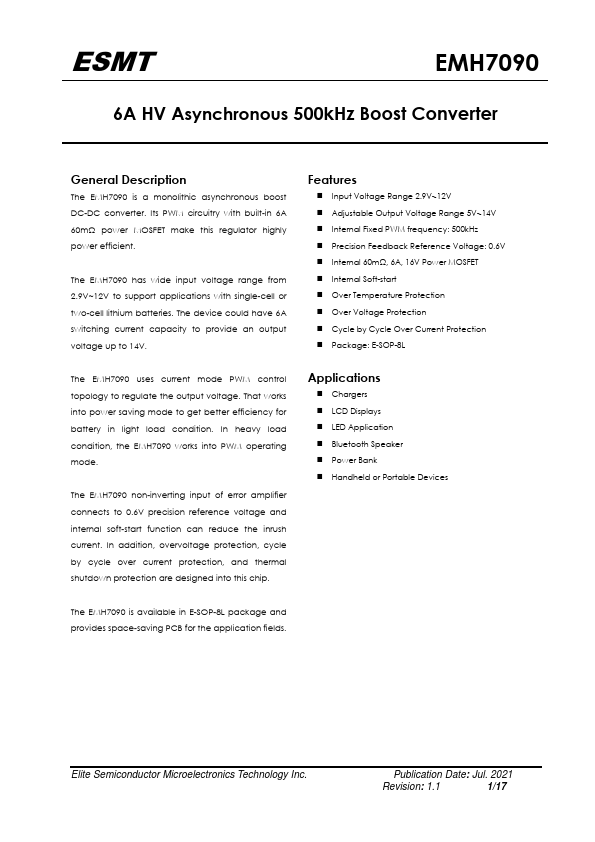

Datasheet preview – EMH7090

Datasheet Details

Part number EMH7090
Manufacturer ESMT
File Size 581.60 KB
Description 6A HV Asynchronous 500kHz Boost Converter
Datasheet download datasheet EMH7090 Datasheet

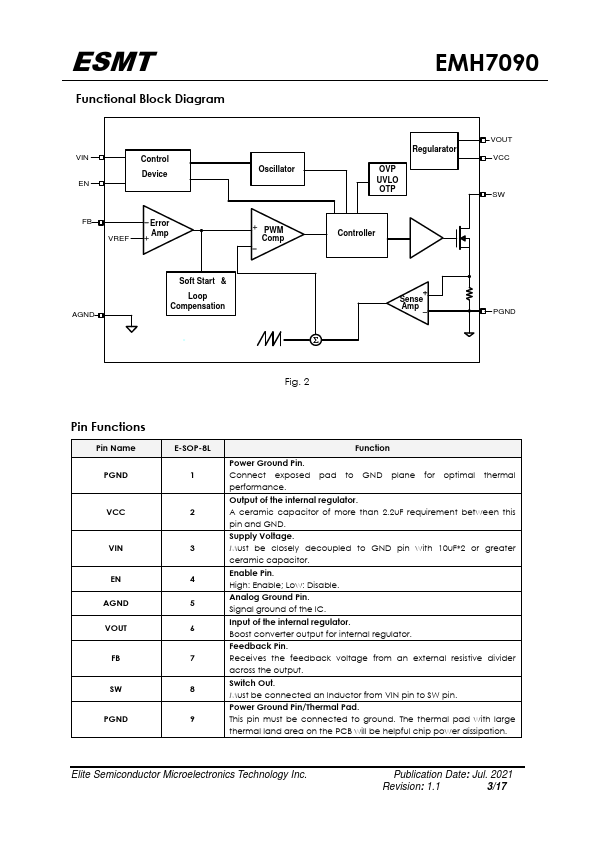

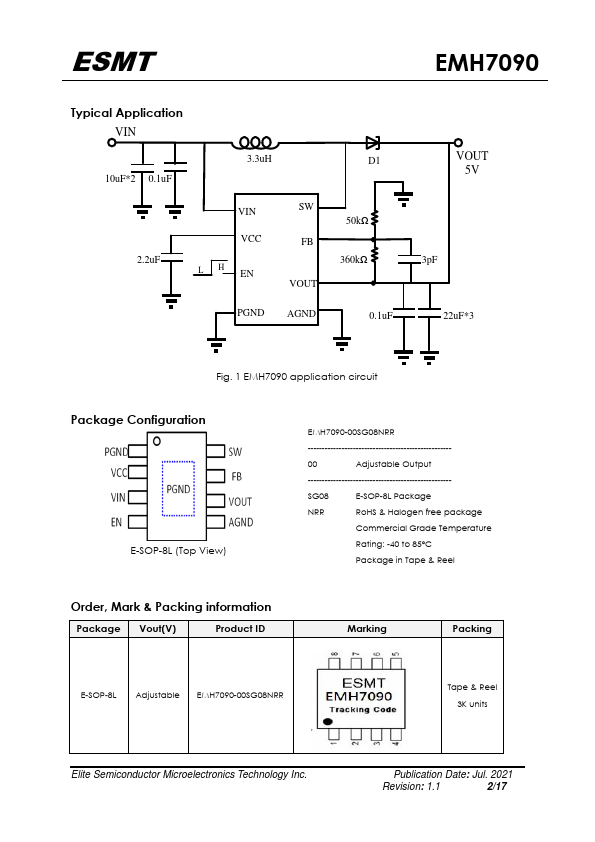

Additional preview pages of the EMH7090 datasheet.

📁 Similar Datasheet

  • EMH7020 - 500KHz PWM Synchronous Boost Converter (Elite Semiconductor)
  • EMH7021 - 500KHz PWM Synchronous Boost Converter (Elite Semiconductor)
  • EMH7023 - 500KHz PWM Synchronous Boost Converter (Elite Semiconductor)
  • EMH75 - Complex Digital Transistors (Rohm)
  • EMH7600 - High Efficiency Synchronous DC/DC Boost Converter (Elite Semiconductor)
  • EMH7601 - High Efficiency Synchronous DC/DC Boost Converter (Elite Semiconductor)
  • EMH1 - Digital Transistors (JCET)
  • EMH1 - NPN 100mA 50V Complex Digital Transistors (ROHM)
  • EMH10 - dual digital transistors (Rohm)
  • EMH10 - Digital Transistors (JCET)
Other Datasheets by ESMT

    Full PDF Text Transcription

    Click to expand full text
    ESMT Preliminary EMH7090 6A HV Asynchronous 500kHz Boost Converter General Description The EMH7090 is a monolithic asynchronous boost DC-DC converter. Its PWM circuitry with built-in 6A 60mΩ power MOSFET make this regulator highly power efficient. The EMH7090 has wide input voltage range from 2.9V~12V to support applications with single-cell or two-cell lithium batteries. The device could have 6A switching current capacity to provide an output voltage up to 14V. Features „ Input Voltage Range 2.9V~12V „ Adjustable Output Voltage Range 5V~14V „ Internal Fixed PWM frequency: 500kHz „ Precision Feedback Reference Voltage: 0.
