| Part number | EMP8170 |
|---|---|
| Datasheet | EMP8170-ESMT.pdf |
| File Size | 884.29 KB |
| Manufacturer | ESMT (Elite Semiconductor Microelectronics Technology) |
| Description | 3A Ultra Low Dropout Voltage Regulator with Internal Soft-Start |
|
|

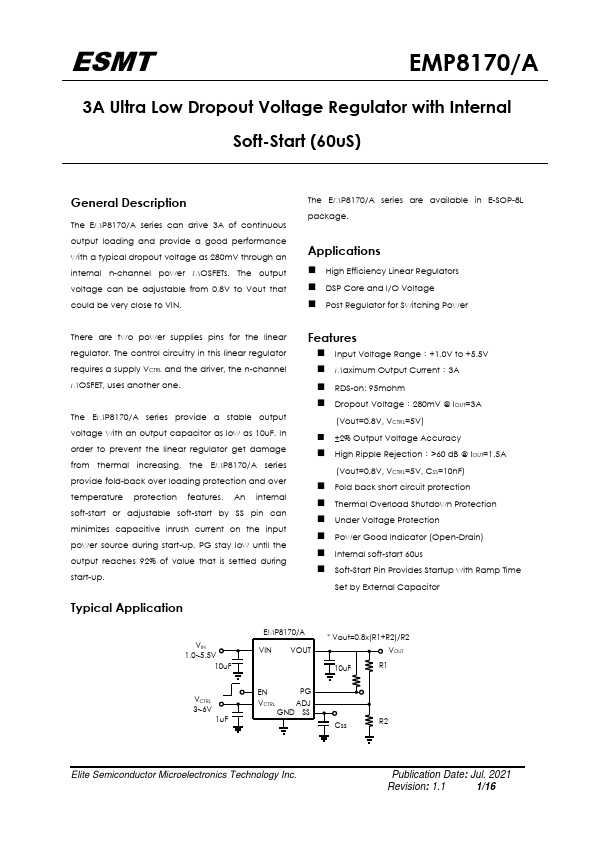

The EMP8170/A series can drive 3A of continuous output loading and provide a good performance with a typical dropout voltage as 280mV through an internal n-channel power MOSFETs. The output voltage can be adjustable from 0.8V to Vout that could be very close to VIN. The EMP8170/A series are available in E-SOP-8L package.
