EMP8170A

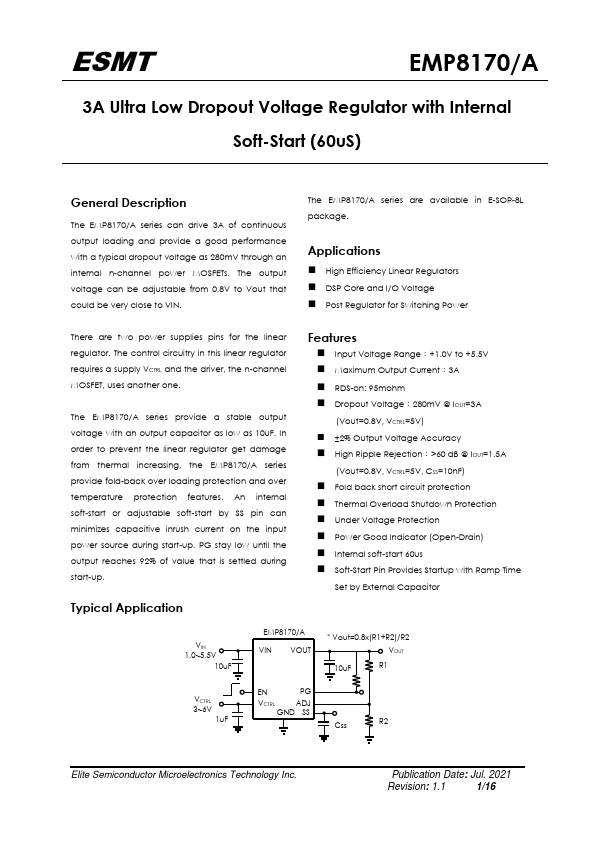

Description
The EMP8170/A series can drive 3A of continuous output loading and provide a good performance with a typical dropout voltage as 280m V through an internal n-channel power MOSFETs. The output voltage can be adjustable from 0.8V to Vout that could be very close to VIN.

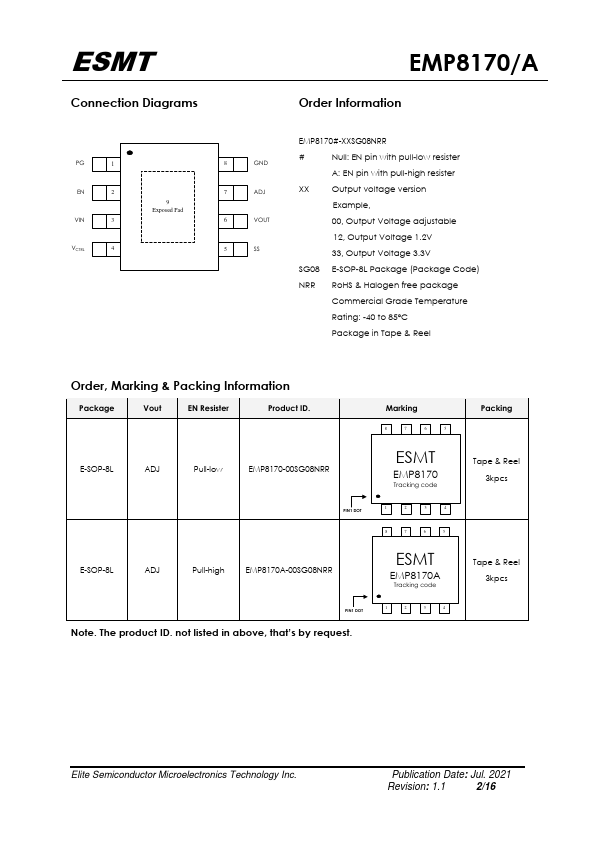

The EMP8170/A series are available in E-SOP-8L package.
Applications
High Efficiency Linear Regulators DSP Core and I/O Voltage Post Regulator for Switching Power
There are two power supplies pins for the linear regulator. The control circuitry in this linear regulator requires a supply VCTRL and the driver, the n-channel MOSFET, uses another one.
The EMP8170/A series provide a stable output voltage with an output capacitor as low as 10u F. In order to prevent the linear regulator get damage from thermal increasing, the EMP8170/A series provide fold-back over loading protection and over temperature protection features
. An internal soft-start or adjustable soft-start by SS pin can minimizes capacitive...
