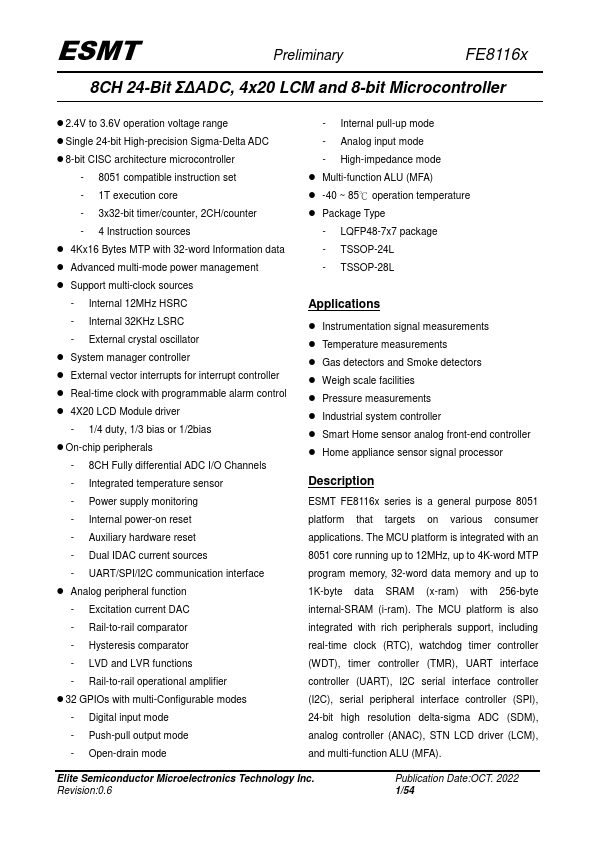

FE81161 datasheet by ESMT (Elite Semiconductor Microelectronics Technology).
This datasheet includes multiple variants, all published together in a single manufacturer document.
| Part number | FE81161 |
|---|---|
| Datasheet | FE81161 FE81160 Datasheet (PDF) |
| File Size | 1.83 MB |
| Manufacturer | ESMT (Elite Semiconductor Microelectronics Technology) |
| Description | 4x20 LCM and 8-bit Microcontroller |
|
|
ESMT FE8116x series is a general purpose 8051 platform that targets on various consumer applications. The MCU platform is integrated with an 8051 core running up to 12MHz, up to 4K-word MTP program memory, 32-word data memory and up to 1K-byte data SRAM (x-ram) with 256-byte internal-SRAM (i-ram). The MCU platform is also integrated with rich peripherals support, including real-time clock (RTC), watchdog timer...
View all ESMT (Elite Semiconductor Microelectronics Technology) datasheets
| Part Number | Description |
|---|---|
| FE81160 | 4x20 LCM and 8-bit Microcontroller |
| FE81162 | 4x20 LCM and 8-bit Microcontroller |
| FE82100 | 64KB Flash 4KB SRAM 12bit 1MSPS ADC |
| FE82160 | 32-bit MCU With Low Power AFE |
