FE81162

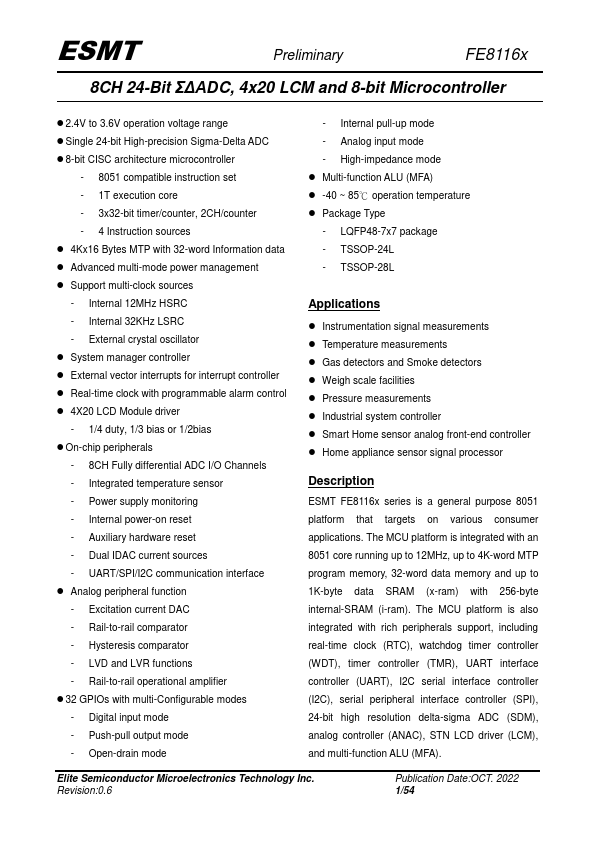

Description
ESMT FE8116x series is a general purpose 8051 platform that targets on various consumer applications. The MCU platform is integrated with an 8051 core running up to 12MHz, up to 4K-word MTP program memory, 32-word data memory and up to 1K-byte data SRAM (x-ram) with 256-byte internal-SRAM (i-ram). The MCU platform is also integrated with rich peripherals support, including real-time clock (RTC), watchdog timer controller (WDT), timer controller (TMR), UART interface controller (UART), I2C serial interface controller (I2C), serial peripheral interface controller (SPI), 24-bit high resolution delta-sigma ADC (SDM), analog controller (ANAC), STN LCD driver (LCM), and multi-function ALU (MFA).
Elite Semiconductor Microelectronics Technology Inc. Revision:0.6
Publication Date:OCT. 2022 1/54
ESMT
Preliminary
FE8116x

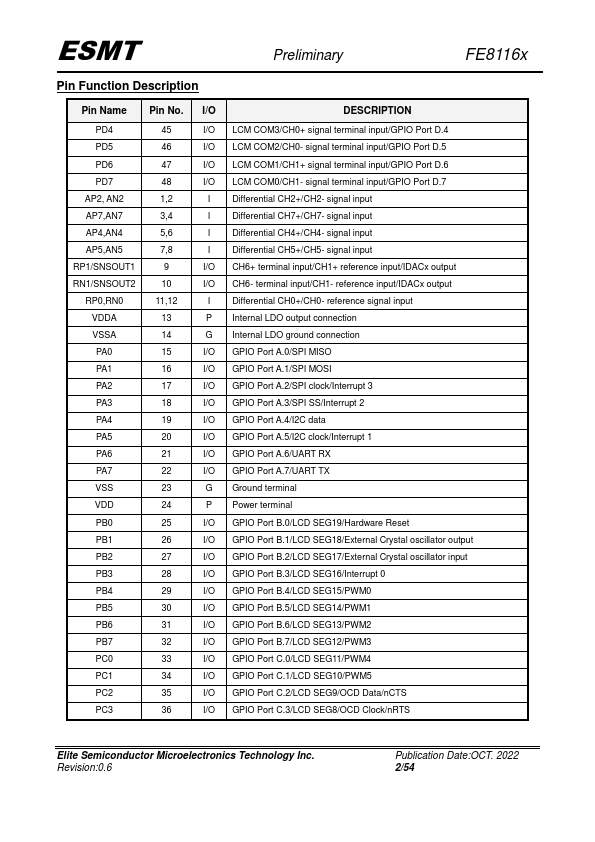

Pin Function Description
Pin Name Pin No. I/O
DESCRIPTION
PD4 PD5 PD6 PD7 AP2, AN2 AP7,AN7 AP4,AN4 AP5,AN5 RP1/SNSOUT1 RN1/SNSOUT2 RP0,RN0 VDDA VSSA PA0 PA1...
