M12L2561616A-7TIAG2T

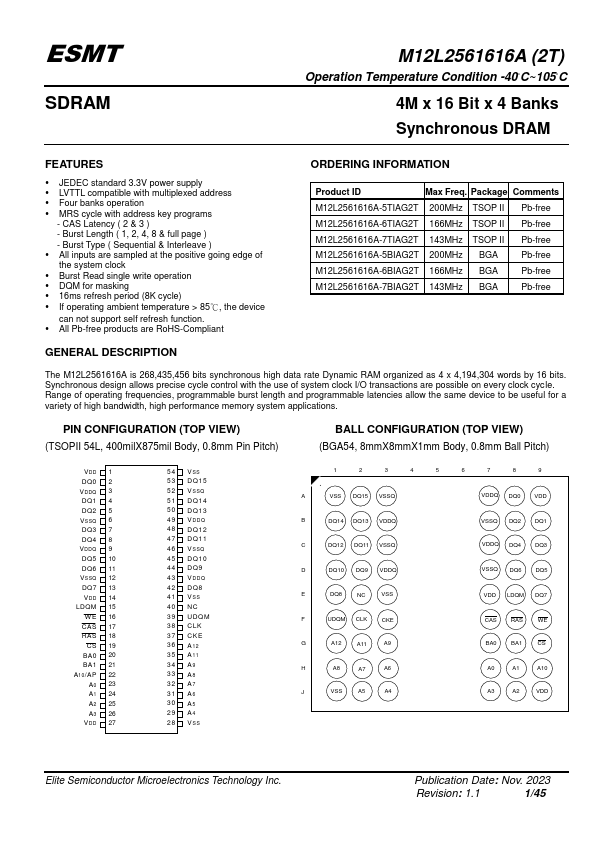

Description
The M12L2561616A is 268,435,456 bits synchronous high data rate Dynamic RAM organized as 4 x 4,194,304 words by 16 bits. Synchronous design allows precise cycle control with the use of system clock I/O transactions are possible on every clock cycle.
Key Features
- JEDEC standard 3.3V power supply
- LVTTL compatible with multiplexed address
- Four banks operation
- MRS cycle with address key programs - CAS Latency ( 2 & 3 ) - Burst Length ( 1, 2, 4, 8 & full page ) - Burst Type ( Sequential & Interleave )
- All inputs are sampled at the positive going edge of the system clock
- Burst Read single write operation
- DQM for masking
- 16ms refresh period (8K cycle)
- If operating ambient temperature > 85℃, the device can not support self refresh function.
- All Pb-free products are RoHS-Compliant
