M12L64164A-5TG2C - 1M x 16 Bit x 4 Banks Synchronous DRAM

This page provides the datasheet information for the M12L64164A-5TG2C, a member of the M12L64164A 1M x 16 Bit x 4 Banks Synchronous DRAM family.

Description

The M12L64164A is 67,108,864 bits synchronous high data rate Dynamic RAM organized as 4 x 1,048,576 words by 16 bits.

Features

  • JEDEC standard 3.3V power supply LVTTL compatible with multiplexed address Four banks operation MRS cycle with address key programs - CAS Latency (2 & 3) - Burst Length (1, 2, 4, 8 & full page) - Burst Type (Sequential & Interleave) All inputs are sampled at the positive going edge of the system clock DQM for masking Auto & self refresh 64ms refresh period (4K cycle) - 15.6 µ s refresh interval M12L64164A (2C) 1M x 16 Bit x 4 Banks Synchronous DRAM.

📥 Download Datasheet

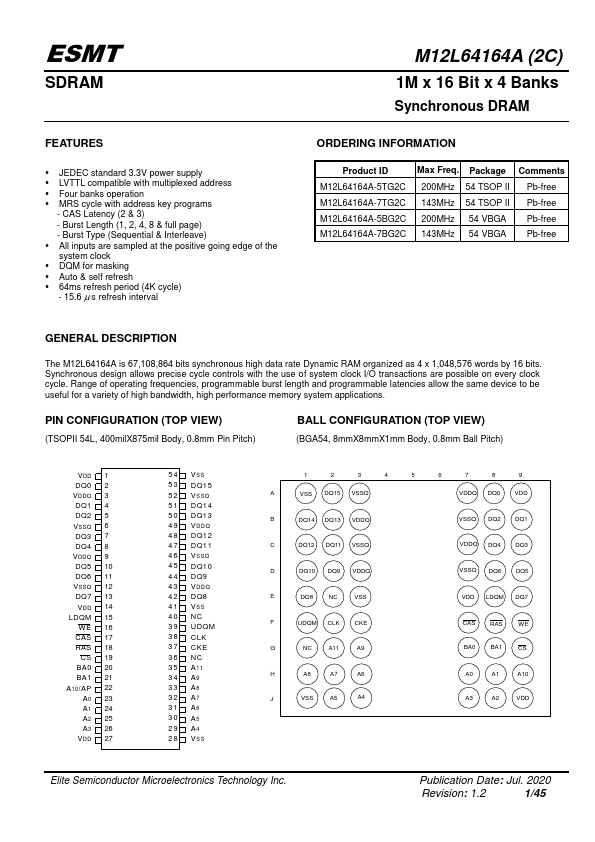

Datasheet preview – M12L64164A-5TG2C

Datasheet Details

Part number M12L64164A-5TG2C
Manufacturer ESMT
File Size 1.20 MB
Description 1M x 16 Bit x 4 Banks Synchronous DRAM
Datasheet download datasheet M12L64164A-5TG2C Datasheet

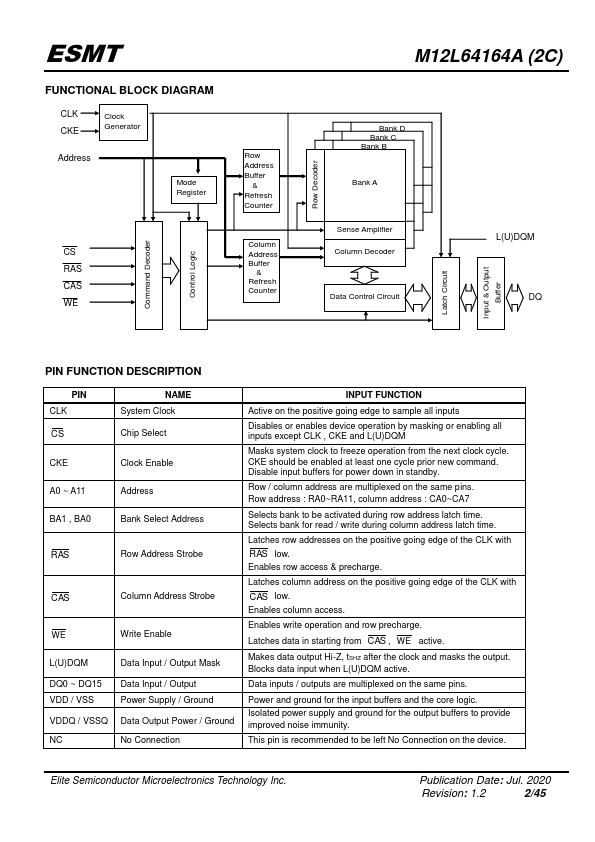

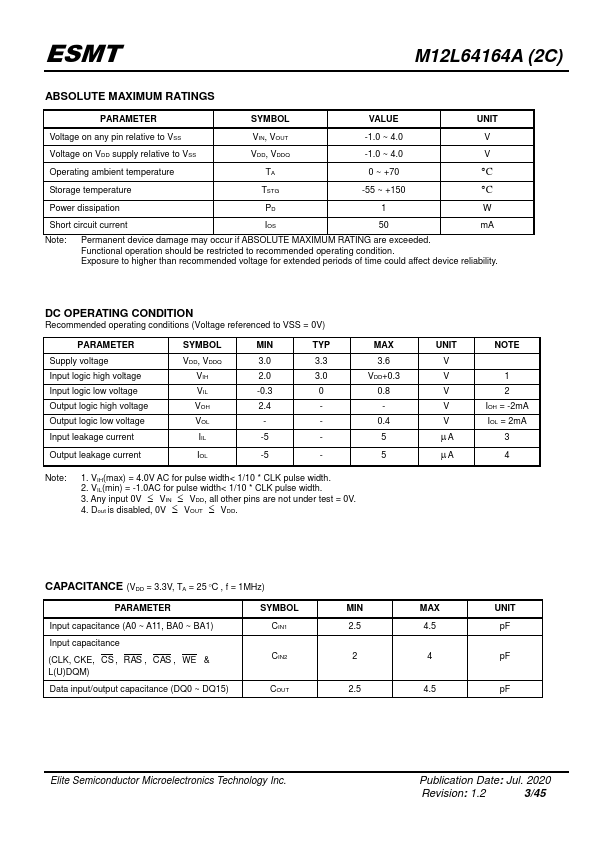

Additional preview pages of the M12L64164A-5TG2C datasheet.

📁 Similar Datasheet

  • M12 - 12-KEYS PIANO 8/12 DEMO TUNES IC (MOSDESIGN)
  • M120 - NON VOLATILE RANDOM ACCESS MEMORY (SGS)
  • M120-2 - NON VOLATILE RANDOM ACCESS MEMORY (SGS)
  • M1200 - Mercury TM1200 PCB-Mount Analog Encoders (GSI Group)
  • M1200A - ON/OFF ONE SHOT LED FLASH IC (MOSDESIGN)
  • M1204L - 4A Step-down DC-DC Power SoC (iModule)
  • M1206 - 6A Step-down DC-DC Power SoC (iModule)
  • M1206EFR - Snubber Capacitors Polypropylene (Electronic Film Capacitors)
  • M1206L - 6A Step-down DC-DC Power SoC (iModule)
  • M1206TC - Snubber Capacitors Polypropylene (Electronic Film Capacitors)
Other Datasheets by ESMT

Full PDF Text Transcription

Click to expand full text
ESMT SDRAM FEATURES JEDEC standard 3.3V power supply LVTTL compatible with multiplexed address Four banks operation MRS cycle with address key programs - CAS Latency (2 & 3) - Burst Length (1, 2, 4, 8 & full page) - Burst Type (Sequential & Interleave) All inputs are sampled at the positive going edge of the system clock DQM for masking Auto & self refresh 64ms refresh period (4K cycle) - 15.6 µ s refresh interval M12L64164A (2C) 1M x 16 Bit x 4 Banks Synchronous DRAM ORDERING INFORMATION Product ID Max Freq.
