This datasheet includes multiple variants, all published together in a single manufacturer document.
| Part number | M15F1G1664A-EFBG2C |
|---|---|
| Datasheet | M15F1G1664A-EFBG2C M15F1G1664A Datasheet (PDF) |
| File Size | 6.04 MB |
| Manufacturer | ESMT (Elite Semiconductor Microelectronics Technology) |
| Description | 8M x 16 Bit x 8 Banks DDR3 SDRAM |
|
|

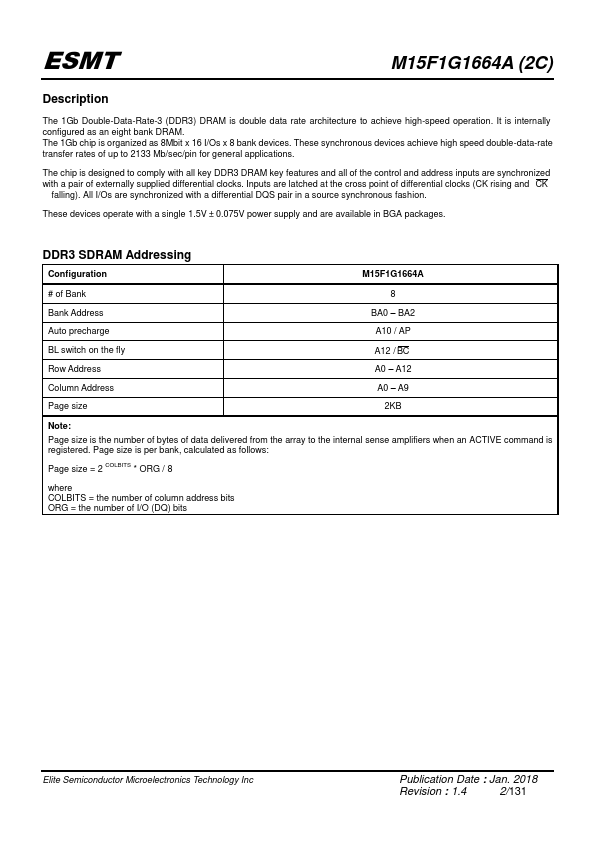

The 1Gb Double-Data-Rate-3 (DDR3) DRAM is double data rate architecture to achieve high-speed operation. It is internally configured as an eight bank DRAM. The 1Gb chip is organized as 8Mbit x 16 I/Os x 8 bank devices.
See all ESMT (Elite Semiconductor Microelectronics Technology) datasheets
| Part Number | Description |
|---|---|
| M15F1G1664A-EFBG2CS | 8M x 16 Bit x 8 Banks DDR3 SDRAM |
| M15F1G1664A-EFBG2S | 8M x 16 Bit x 8 Banks DDR3 SDRAM |
| M15F1G1664A-DEBG2C | 8M x 16 Bit x 8 Banks DDR3 SDRAM |
| M15F1G1664A-DEBG2CS | 8M x 16 Bit x 8 Banks DDR3 SDRAM |
| M15F1G1664A-DEBG2S | 8M x 16 Bit x 8 Banks DDR3 SDRAM |
| M15F1G1664A-GHBG2C | 8M x 16 Bit x 8 Banks DDR3 SDRAM |
| M15F1G1664A-GHBG2CS | 8M x 16 Bit x 8 Banks DDR3 SDRAM |
| M15F1G1664A-GHBG2S | 8M x 16 Bit x 8 Banks DDR3 SDRAM |
| M15F1G1664A | 8M x 16 Bit x 8 Banks DDR3 SDRAM |
| M15F2G16128A-BDBG2F | 16M x 16 Bit x 8 Banks DDR III SDRAM |
