Datasheet Details
| Part number | M15T1G1664A-EFBG2T |
|---|---|
| Manufacturer | ESMT (Elite Semiconductor Microelectronics Technology) |
| File Size | 7.72 MB |
| Description | 8M x 16 Bit x 8 Banks DDR3 SDRAM |
| Datasheet | M15T1G1664A-EFBG2T-ESMT.pdf |
|
|

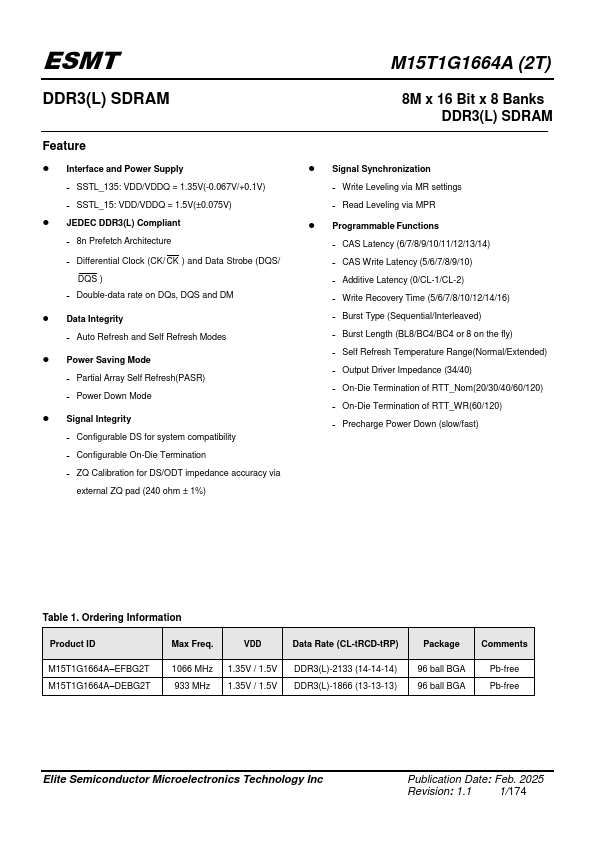

Overview: ESMT DDR3(L) SDRAM Feature Interface and Power Supply ˗ SSTL_135: VDD/VDDQ = 1.35V(-0.067V/+0.1V) ˗ SSTL_15: VDD/VDDQ = 1.5V(±0.075V) JEDEC DDR3(L) Compliant ˗ 8n Prefetch Architecture ˗ Differential Clock (CK/ CK ) and Data Strobe (DQS/ DQS ) ˗ Double-data rate on DQs, DQS and DM Data Integrity ˗ Auto Refresh and Self Refresh Modes Power Saving Mode ˗ Partial Array Self Refresh(PASR) ˗ Power Down Mode Signal Integrity ˗ Configurable DS for system compatibility ˗ Configurable On-Die Termination ˗ ZQ Calibration for DS/ODT impedance accuracy via external ZQ pad (240 ohm ± 1%) M15T1G1664A (2T) 8M x 16 Bit x 8 Banks DDR3(L) SDRAM Signal Synchronization ˗ Write Leveling via MR settings ˗ Read Leveling via MPR Programmable Functions ˗ CAS Latency (6/7/8/9/10/11/12/13/14) ˗ CAS Write Latency (5/6/7/8/9/10) ˗ Additive Latency (0/CL-1/CL-2) ˗ Write Recovery Time (5/6/7/8/10/12/14/16) ˗ Burst Type (Sequential/Interleaved) ˗ Burst Length (BL8/BC4/BC4 or 8 on the fly) ˗ Self Refresh Temperature Range(Normal/Extended) ˗ Output Driver Impedance (34/40) ˗ On-Die Termination of RTT_Nom(20/30/40/60/120) ˗ On-Die Termination of RTT_WR(60/120) ˗ Precharge Power Down (slow/fast) Table 1. Ordering Information Product ID Max Freq. VDD Data Rate (CL-tRCD-tRP) Package Comments M15T1G1664A–EFBG2T M15T1G1664A–DEBG2T 1066 MHz 933 MHz 1.35V / 1.5V 1.35V / 1.5V DDR3(L)-2133 (14-14-14) DDR3(L)-1866 (13-13-13) 96 ball BGA 96 ball BGA Pb-free Pb-free Elite Semiconductor Microelectronics Technology Inc Publication Date: Feb. 2025 Revision: 1.1 1/174 ESMT M15T1G1664A (2T) Contents Feature ...........................................................................................................................................................................................
| Part number | M15T1G1664A-EFBG2T |
|---|---|
| Manufacturer | ESMT (Elite Semiconductor Microelectronics Technology) |
| File Size | 7.72 MB |
| Description | 8M x 16 Bit x 8 Banks DDR3 SDRAM |
| Datasheet | M15T1G1664A-EFBG2T-ESMT.pdf |
|
|
|
....................................................................................................................................................................................
10
| Part Number | Description |
|---|---|
| M15T1G1664A-EFBG2S | 8M x 16 Bit x 8 Banks DDR3 SDRAM |
| M15T1G1664A-BDBG2C | 8M x 16 Bit x 8 Banks DDR3 SDRAM |
| M15T1G1664A-BDBG2CS | 8M x 16 Bit x 8 Banks DDR3 SDRAM |
| M15T1G1664A-DEBG2C | 8M x 16 Bit x 8 Banks DDR3 SDRAM |
| M15T1G1664A-DEBG2CS | 8M x 16 Bit x 8 Banks DDR3 SDRAM |
| M15T1G1664A-DEBG2S | 8M x 16 Bit x 8 Banks DDR3 SDRAM |
| M15T1G1664A-DEBG2T | 8M x 16 Bit x 8 Banks DDR3 SDRAM |
| M15T1G1664A | 8M x 16 Bit x 8 Banks DDR3 SDRAM |
| M15T1G8128A | DDR3 SDRAM |
| M15T2G16128A | 16M x 16 Bit x 8 Banks DDR3 SDRAM |
