Datasheet Details
| Part number | M15T4G16256A-DEBG2P |
|---|---|
| Manufacturer | ESMT (Elite Semiconductor Microelectronics Technology) |
| File Size | 6.15 MB |
| Description | 32M x 16 Bit x 8 Banks DDR3 SDRAM |
| Datasheet | M15T4G16256A-DEBG2P M15T4G16256A-EFBG2P Datasheet (PDF) |
|
|

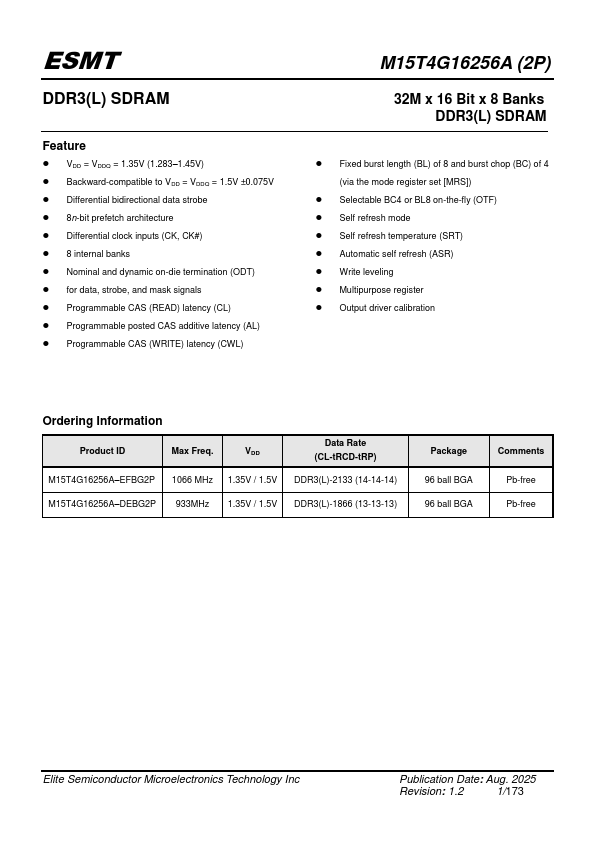

Overview: ESMT DDR3(L) SDRAM Feature VDD = VDDQ = 1.35V (1.283–1.45V) Backward-compatible to VDD = VDDQ = 1.5V ±0.075V Differential bidirectional data strobe 8n-bit prefetch architecture Differential clock inputs (CK, CK#) 8 internal banks Nominal and dynamic on-die termination (ODT) for data, strobe, and mask signals Programmable CAS (READ) latency (CL) Programmable posted CAS additive latency (AL) Programmable CAS (WRITE) latency (CWL) M15T4G16256A (2P) 32M x 16 Bit x 8 Banks DDR3(L) SDRAM Fixed burst length (BL) of 8 and burst chop (BC) of 4 (via the mode register set [MRS]) Selectable BC4 or BL8 on-the-fly (OTF) Self refresh mode Self refresh temperature (SRT) Automatic self refresh (ASR) Write leveling Multipurpose register Output driver calibration Ordering Information Product ID Max Freq. VDD Data Rate (CL-tRCD-tRP) M15T4G16256A–EFBG2P 1066 MHz 1.35V / 1.5V DDR3(L)-2133 (14-14-14) M15T4G16256A–DEBG2P 933MHz 1.35V / 1.5V DDR3(L)-1866 (13-13-13) Package 96 ball BGA 96 ball BGA Comments Pb-free Pb-free Elite Semiconductor Microelectronics Technology Inc Publication Date: Aug. 2025 Revision: 1.
This datasheet includes multiple variants, all published together in a single manufacturer document.
| Part number | M15T4G16256A-DEBG2P |
|---|---|
| Manufacturer | ESMT (Elite Semiconductor Microelectronics Technology) |
| File Size | 6.15 MB |
| Description | 32M x 16 Bit x 8 Banks DDR3 SDRAM |
| Datasheet | M15T4G16256A-DEBG2P M15T4G16256A-EFBG2P Datasheet (PDF) |
|
|
|

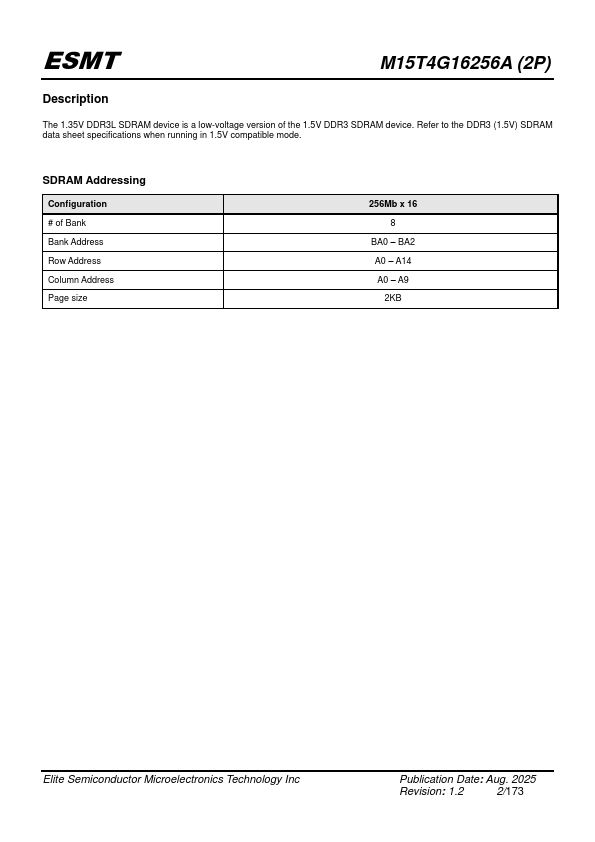

The 1.35V DDR3L SDRAM device is a low-voltage version of the 1.5V DDR3 SDRAM device.
Refer to the DDR3 (1.5V) SDRAM data sheet specifications when running in 1.5V compatible mode.

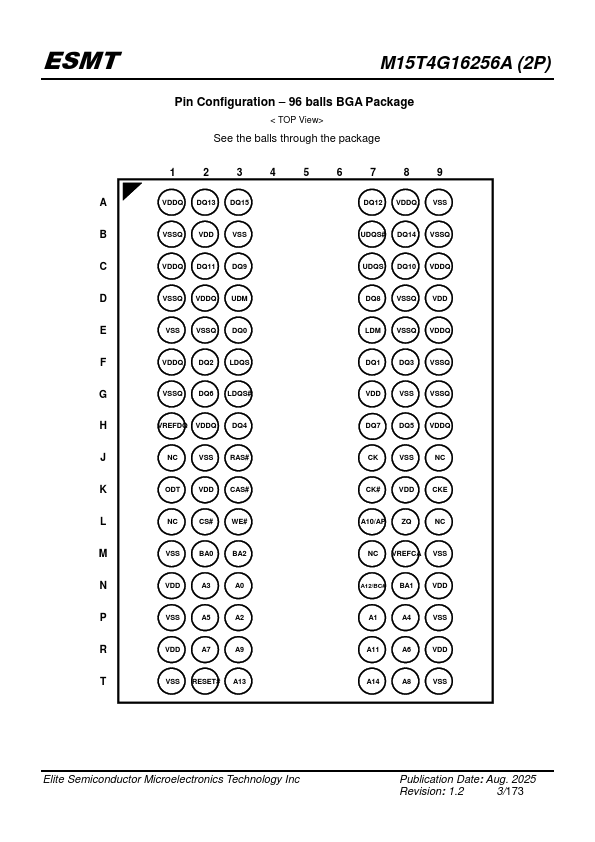

SDRAM Addressing Configuration # of Bank Bank Address Row Address Column Address Page size 256Mb x 16 8 BA0 – BA2 A0 – A14 A0 – A9 2KB Elite Semiconductor Microelectronics Technology Inc Publication Date: Aug.
