M15T8G16512A-BDBG2S
M15T8G16512A-BDBG2S is 64M x 16 Bit x 8 Banks DDR3 SDRAM manufactured by Elite Semiconductor Microelectronics Technology.

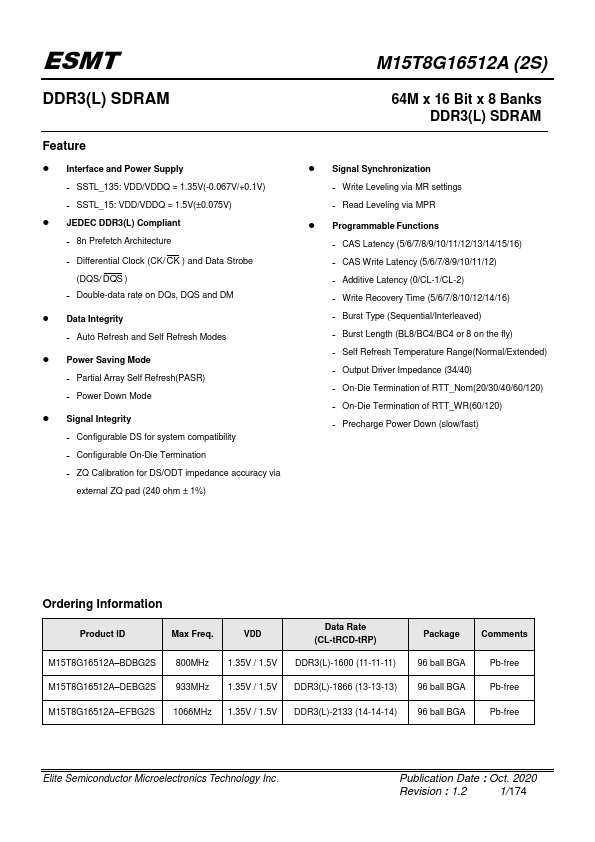

Feature
- Interface and Power Supply ˗ SSTL_135: VDD/VDDQ = 1.35V(-0.067V/+0.1V) ˗ SSTL_15: VDD/VDDQ = 1.5V(±0.075V)
- JEDEC DDR3(L) pliant ˗ 8n Prefetch Architecture ˗ Differential Clock (CK/ CK ) and Data Strobe (DQS/ DQS ) ˗ Double-data rate on DQs, DQS and DM
- Data Integrity ˗ Auto Refresh and Self Refresh Modes
- Power Saving Mode ˗ Partial Array Self Refresh(PASR) ˗ Power Down Mode
- Signal Integrity ˗ Configurable DS for system patibility ˗ Configurable On-Die Termination ˗ ZQ Calibration for DS/ODT impedance accuracy via external ZQ pad (240 ohm ± 1%)
M15T8G16512A (2S)
64M x 16 Bit x 8 Banks DDR3(L) SDRAM
- Signal Synchronization ˗ Write Leveling via MR settings ˗ Read Leveling via MPR
- Programmable Functions ˗ CAS Latency (5/6/7/8/9/10/11/12/13/14/15/16) ˗ CAS Write Latency (5/6/7/8/9/10/11/12) ˗ Additive Latency (0/CL-1/CL-2) ˗ Write Recovery Time (5/6/7/8/10/12/14/16) ˗ Burst Type (Sequential/Interleaved) ˗ Burst Length (BL8/BC4/BC4 or 8 on the fly) ˗ Self Refresh Temperature Range(Normal/Extended) ˗ Output Driver Impedance (34/40) ˗ On-Die Termination of RTT_Nom(20/30/40/60/120) ˗ On-Die Termination of RTT_WR(60/120) ˗ Precharge Power Down (slow/fast)
Ordering Information
Product ID
Max Freq.
Data Rate (CL-t RCD-t RP)
M15T8G16512A- BDBG2S 800MHz 1.35V / 1.5V DDR3(L)-1600 (11-11-11)
M15T8G16512A- DEBG2S 933MHz 1.35V / 1.5V DDR3(L)-1866 (13-13-13)
M15T8G16512A- EFBG2S 1066MHz 1.35V / 1.5V DDR3(L)-2133 (14-14-14)
Package ments
96 ball BGA 96 ball BGA 96 ball BGA
Pb-free Pb-free Pb-free
Elite Semiconductor Microelectronics Technology Inc.
Publication Date : Oct. 2020
Revision : 1.2
1/174
ESMT
M15T8G16512A (2S)

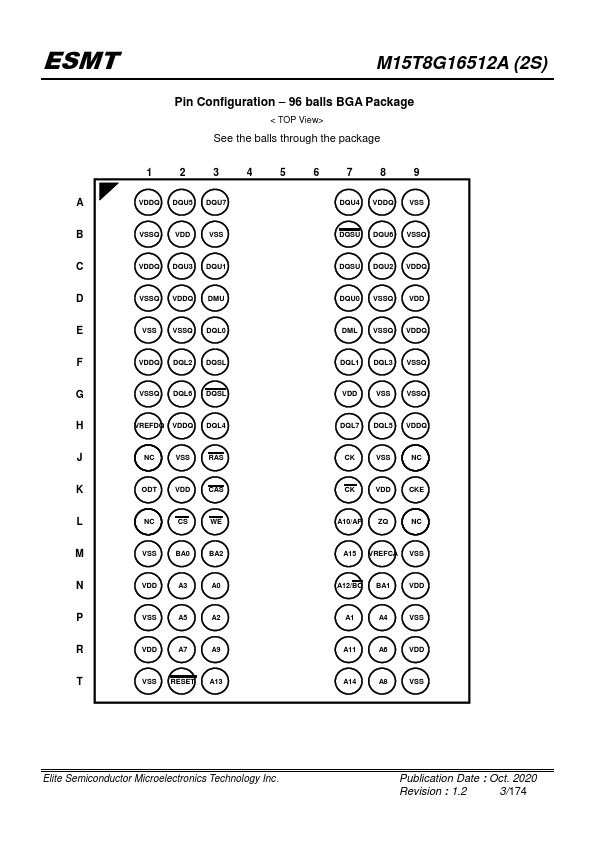

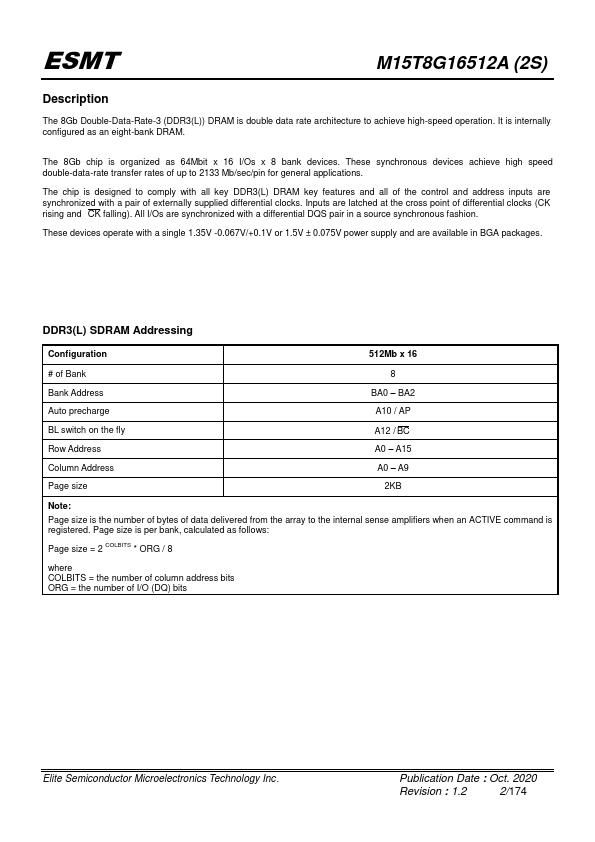

Description
The 8Gb Double-Data-Rate-3 (DDR3(L)) DRAM is double data rate architecture to achieve high-speed operation. It is internally configured as an eight-bank DRAM.
The 8Gb chip is organized as 64Mbit x 16 I/Os x 8 bank devices. These synchronous devices achieve high speed double-data-rate transfer rates of up to 2133...
