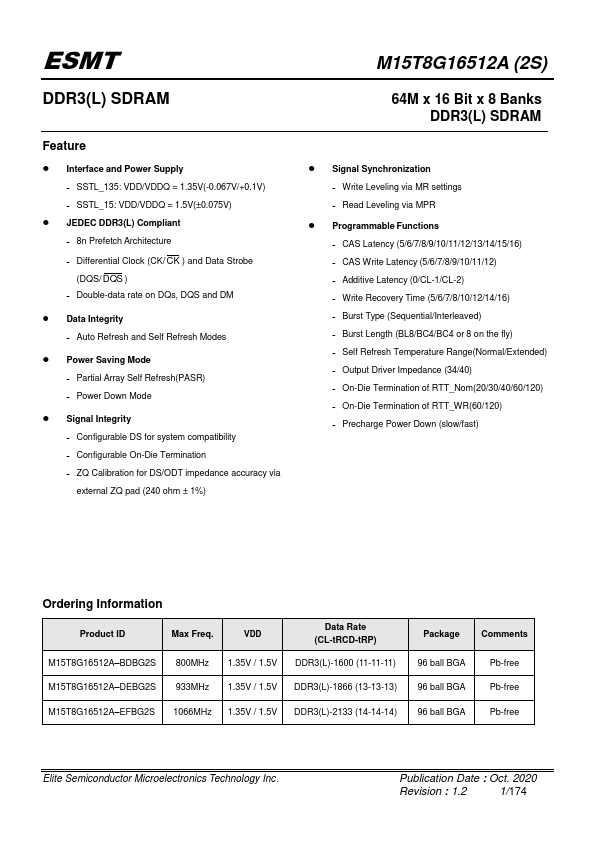

M15T8G16512A-EFBG2S is 64M x 16 Bit x 8 Banks DDR3 SDRAM manufactured by Elite Semiconductor Microelectronics Technology.
| Part Number | Description |
|---|---|
| M15T8G16512A-BDBG2S | 64M x 16 Bit x 8 Banks DDR3 SDRAM |
| M15T8G16512A-DEBG2S | 64M x 16 Bit x 8 Banks DDR3 SDRAM |
| M15T1G1664A | 8M x 16 Bit x 8 Banks DDR3 SDRAM |
| M15T1G1664A-BDBG2C | 8M x 16 Bit x 8 Banks DDR3 SDRAM |
| M15T1G1664A-BDBG2CS | 8M x 16 Bit x 8 Banks DDR3 SDRAM |

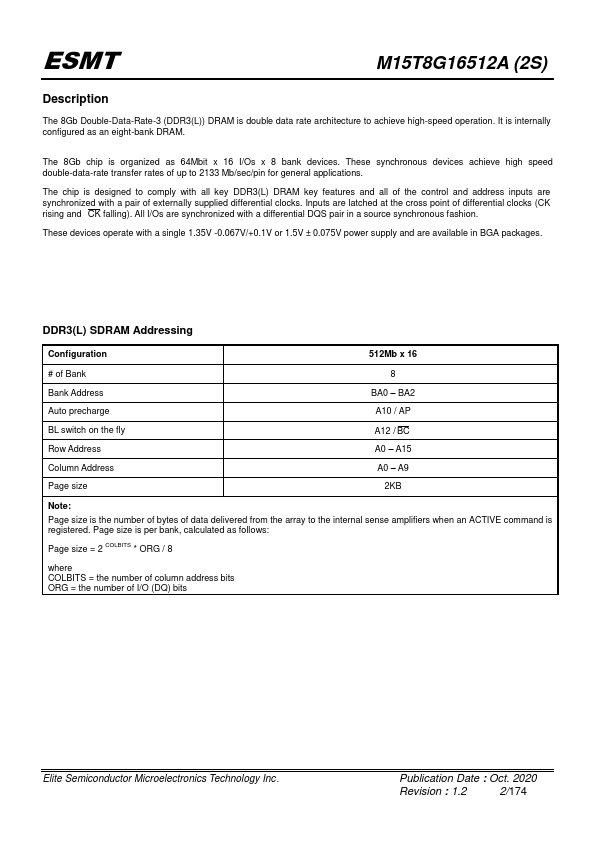

The 8Gb Double-Data-Rate-3 (DDR3(L)) DRAM is double data rate architecture to achieve high-speed operation. It is internally configured as an eight-bank DRAM. The 8Gb chip is organized as 64Mbit x 16 I/Os x 8 bank devices.
